Reflect Aluflex Kit for Safe Portable Earthing & Rail Line Isolations | PENTA

Published 27 Jan 2025

Reflect Aluflex Kit for Safe Portable Earthing & Rail Line Isolations | PENTA




Reflect Aluflex Kit PENTA

The practical and convenient market-leading Reflect Aluflex Kit, manufactured by PENTA, is an ideal solution to night-time working on and around electrical distribution and rail lines. The highly reflective lead kit is a combination of PENTA‘s Special DEP Earth with Reflect Aluflex & S9B Reflect Kit, providing enhanced visibility to allow for safe portable earthing and rail line isolations, making for seamless inspections.


Reflect Aluflex Cable

The PENTA reflect Aluflex cable, included in the Reflect Aluflex Kit is used for connecting between a Line End Clamp and an Earth End Clamp. The reflect Aluflex cable is equipped with orange marking helix for identification with additional reflective silver helical strips to aid identification throughout night-working or when used in tunnels with restricted lighting. The strands of the Aluflex cable remain visible between helical strips to aid inspection. Supplied in any length required, in a range of sizes, including 50sqmm, 70sqmm, 95sqmm, 120sqmm & 150sqmm, according to ENA TS 42-21 specifications.

♦ Energy Networks Association TS 41-21 Compliant

The ENA TS 41-21 standards covers portable earthing equipment for use on MV HV power cable systems above 1kV and up to 400kV, which has a rated value tested in accordance with this ENA TS.

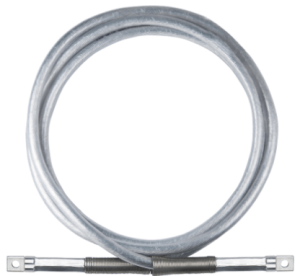

HV Substation Portable Earthing Leads | PENTA

HV Substation Portable Earthing Leads | PENTA

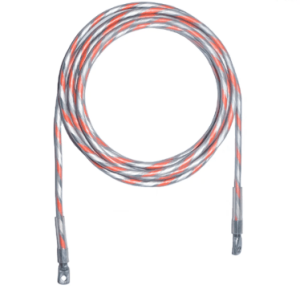

Orange Reflective Aluflex Lead 50sqmm | PENTA

Orange Reflective Aluflex Lead | PENTA

VIEW PORTABLE EARTHING LEADS & KITS


Reflect Aluflex Kit Safe Portable Earthing & Rail Line Isolations

Special DEP Earth with Reflect Aluflex

The PENTA Reflect DEP earth is specially designed for use within the rail industry. Its reflective properties allow operators and authorised personnel to easily locate the position and check the proper fitting of the earth at night, whilst its orange appearance ensures the purpose of the lead is clearly identified.

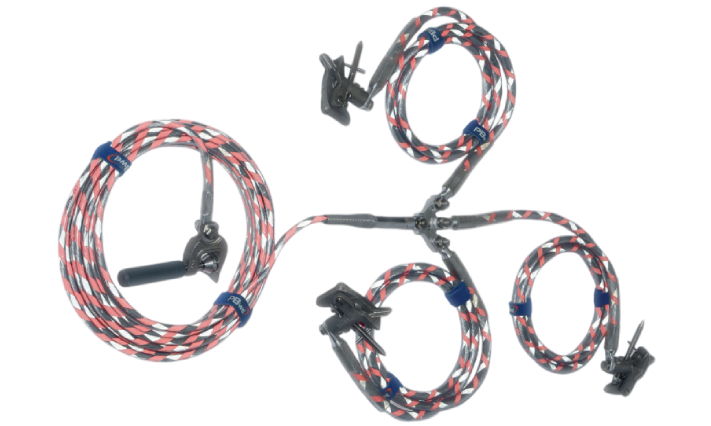

S9B Reflect Kit

The PENTA Reflect cable is a revolutionary new product which allows for quick identification due to its orange band. The reflective band aids location and checking of earths on site at night. The clear outer sheath allows inspection of the fine aluminium stands unlike traditional orange Aluflex leads.

S9B Reflect Kit | PENTA

S9B Reflect Kit | PENTA


PENTA Portable Earthing Equipment

80 Years of Designing & Manufacturing

a Comprehensive Range of Portable Earthing Equipment

As trusted suppliers to the electricity industry for many decades, PENTA‘s wide variety of Portable Earthing Equipment, including the Reflect Aluflex Kit, is used to provide short circuit protection and to control induced voltages and associated currents within substations, on overhead transmission and distribution lines and within the electrified rail network. PENTA also manufacture protection, monitoring and indicating instruments.

Thorne & Derrick distribute the extensive range of trusted PENTA Substation Earthing Equipment & Electrical Safety Equipment to the Power Transmission & Distribution industry in the onshore and offshore wind, solar, rail, oil/gas, data centre, battery storage and utility sectors. We provide exceptional service, fast delivery and the best prices to UK and international clients working on underground cables, overhead lines, substations and electrical construction.
