Sealing Cables & Pipes Using Roxtec | Battery Storage Applications

Published 30 Jul 2021

Cable entry seals

for the energy storage industry

Sealing Cabinets & Enclosures

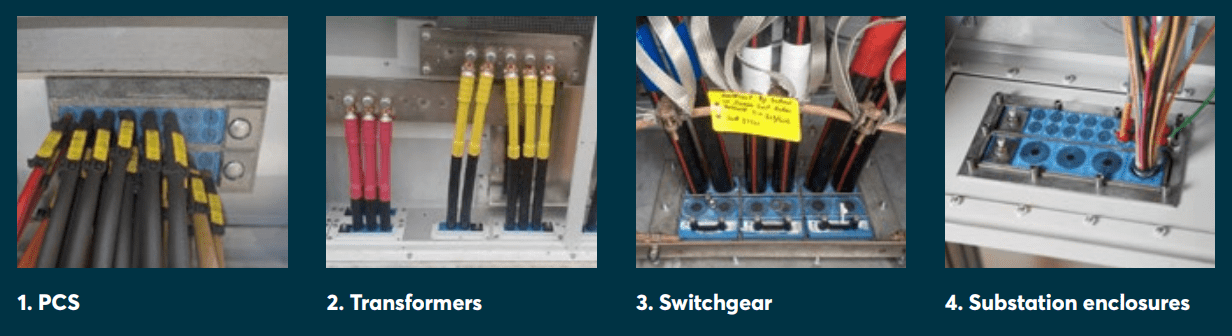

Roxtec’s area efficient seals are ideal for entries to power conversion system (PCS) enclosures, transformers, switchgear and other cabinet applications with high cable density.

Protect your Low & High Voltage Electrical Equipment by an organised cable entry manufactured by Roxtec that is also openable to simplify maintenance and sudden changes for future retrofit and cable alterations and additions.

Cabinets & Enclosures

Sealing Buildings & Containers

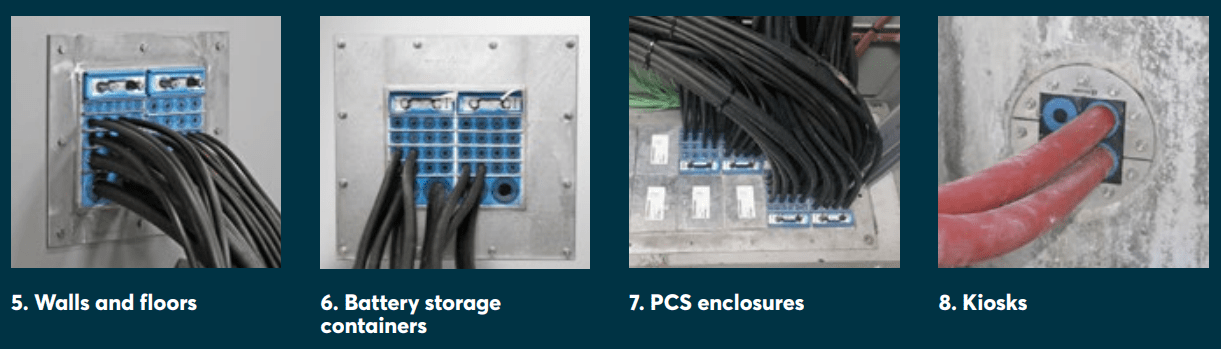

Roxtec cable and pipe seals work efficiently in above ground and underground walls and floors in buildings, battery storage containers, PCS enclosures and kiosks. Avoid fire, water, humidity and animal issues in your buildings and battery storage containers.

Buildings & Containers

➡ View the Roxtec range of Rectangular Cable Seals & Transit Frames & Round Cable Transit Frames & Cable Seals

Why use Roxtec?

• Firestop
• Vapor-tight
• Animal mitigation
• Watertight
• Bonding, grounding and EMI protection
• Cable retention

Superior simplicity

• One cut-out for dozens of pre-terminated cables
• Flexibility for cables and pipes of different sizes
• Built-in spare capacity for future cables and pipes

Standardise for protection and spare capacity

Use Roxtec cable and pipe seals to minimise the risk of downtime caused by fire, animals, water and dust. Install them in power conversion system (PCS) enclosures, battery buildings and containers, substation equipment and transformers.

Roxtec seals are extremely space efficient and can be used for new or retrofit applications. Built-in spare capacity enables installers to quickly add cables without having to cut or punch new holes in the equipment.

Further Reading

Flexible Cable Seals for Gas Insulated Substations

Data Centres | Safely Sealing LV HV Cables & Electrical Equipment

Roxtec Pipe & Cable Seals | Offshore & Onshore Windfarm Product Spotlight

Cable Sealing Using Roxtec

Roxtec cable seals are used in cable vaults, duct banks, electrical substations, trenches and M&E building services protecting low, medium and high voltage power systems against numerous external risk factors:

• Fire – A60, H120 Class bulkhead sealing for offshore classification against jet-fire or spray and prevention of suffocating smoke spread
• Gas – ensure complete tightness against air and gas pressure or migration through cable ducts with DSEAR compliance
• Water – prevent flood and water penetration into substations and buildings – avoid humidity and partial discharge conditions
• Cables – withstand cable bending load in heavy power and high voltage cable seal applications
• Pressure – protect against catastrophic sudden or constant pressure
• Electrical – protect cables and electrical infrastructure against EMI, EMP and lightning strike effects
• Particles – control levels of of dirt, dust, chemical and fumigants from entering buildings, cable ducts and substations
• Blast – protect against vibration, shock-waves and the risk of explosion in industrial and hazardous area locations

Cable Transits – Sealing Cables & Pipes

Cable Transits

Roxtec cable transits are used to prevent water, gas, fire, dust and rodents from entering cable duct openings and potentially causing damage to cables and other electrical infrastructure.

Cable transit systems can be designed for sealing medium/high voltage substations including 11kV/33kV and “triplex” type cables in single, multiple or trefoil configuration.

Roxtec modular cable transit seals are based upon a rubber design with seals that are constructed of a number of removable layers to secure a watertight, gas tight and fire proof seal around the cable or pipe – the range includes rectangular transits and round transits to fit a variety of pipes and cable sizes.

Cable transit products ensure safety, reliability and efficiency by providing an effective, dependable seal around cables and pipes through an opening, penetration or duct.
