Cable Pulling Explained | LV MV HV Installation

Published 18 Jun 2026

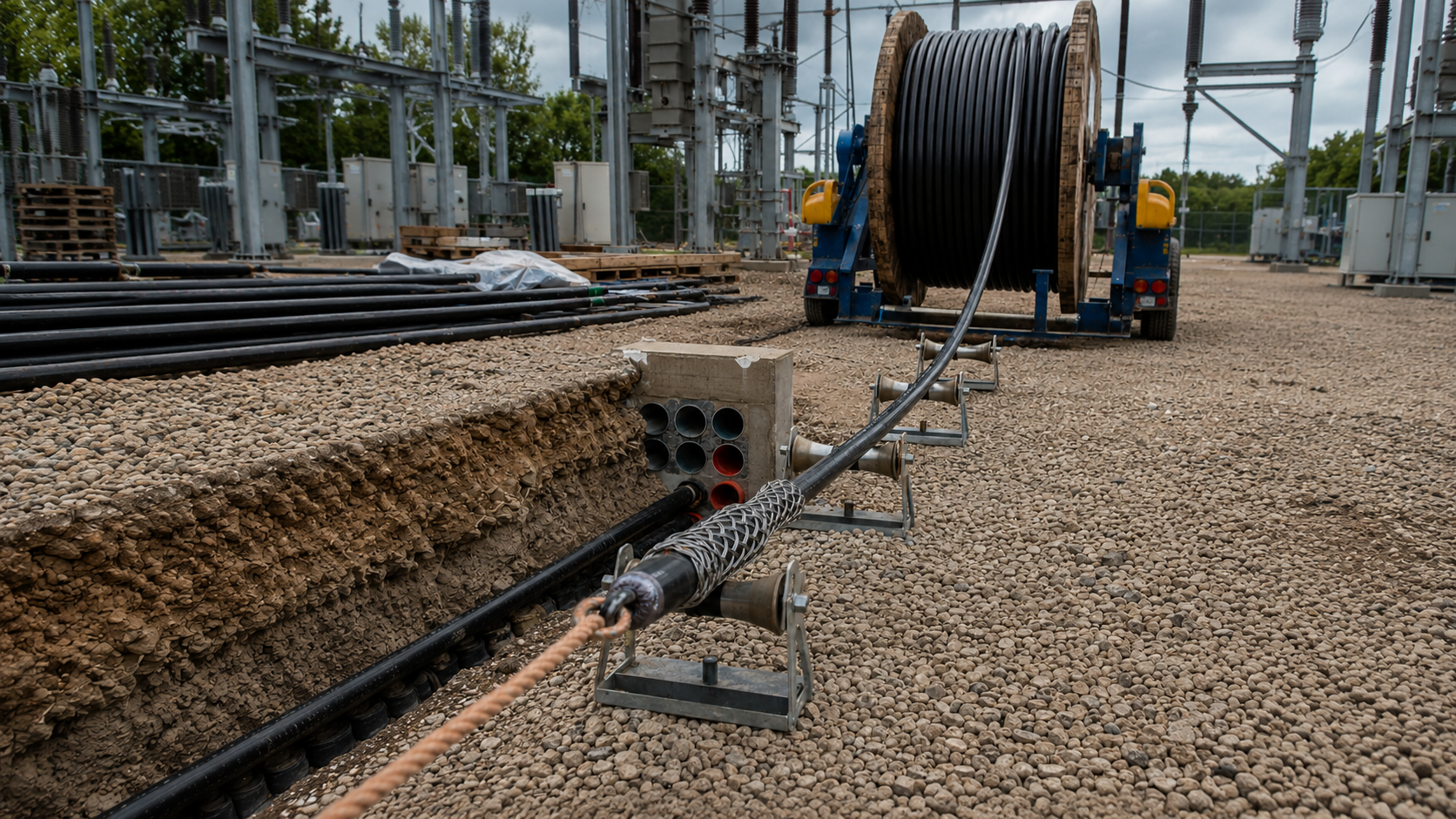

A photo showing the correct way cable pulling should be executed

Cable pulling is the controlled process of installing electrical, power, telecoms or fibre optic cables into ducts, trenches, conduits, tunnels, cable troughs or containment systems. In LV, MV and HV power cable installations, cable pulling must be carefully planned to prevent damage to the cable sheath, insulation, conductor, screen or armour during installation.

For utilities, DNOs, electrical contractors, cable jointers, rail contractors, civil engineering teams, renewable energy projects and industrial power systems, correct cable pulling equipment is essential. The cable may be heavy, expensive, difficult to handle and critical to the future reliability of the electrical network.

Cable pulling is not simply a case of attaching a cable to a winch and pulling it into place. The route, bend radius, cable weight, cable diameter, pulling tension, drum position, cable rollers, cable socks, cable lubricants, duct condition and operator control all need to be considered before the installation starts.

Thorne & Derrick supply cable pulling and cable laying equipment for LV, MV, HV and EHV cable installations, including cable pulling winches, cable rollers, cable socks, drum jacks, duct rods, lubricants and cable protection products.

Quick Answer: What Is Cable Pulling?

Cable pulling is the process of installing a cable through a duct, trench, conduit, tunnel, cable tray or cable route using controlled pulling force. It is commonly used for power cables, telecoms cables, fibre optic cables, control cables and utility cables.

For LV, MV and HV power cable installations, cable pulling must be planned carefully because excessive pulling tension, poor route preparation, tight bends, damaged ducts or unsuitable equipment can damage the cable during installation. This can lead to sheath damage, insulation stress, future cable faults and expensive repair work.

Cable Pulling: Quick Summary

What It Is The controlled installation of cable through a duct, trench, conduit, tunnel, tray or cable route.
Main Purpose To install cables safely while avoiding damage to the sheath, insulation, conductor, screen or armour.
Typical Equipment Cable pulling winches, rollers, socks, grips, drum jacks, trailers, lubricants, duct rods and bellmouths.
Key Risks Excess pulling tension, sharp bends, poor duct condition, cable sheath damage, poor drum handling and lack of tension monitoring.
Used For LV, MV, HV and EHV power cables, fibre optic cables, telecoms, control cables, rail, utilities and infrastructure projects.

What Is Cable Pulling?

Cable pulling is a method of installing cables by applying controlled force to move the cable from its drum into its final route. The cable may be pulled through an underground duct, across a cable trench, over rollers, through conduit, into a substation, along a tunnel, onto a cable tray or through a prepared cable containment system.

Cable pulling is used across many industries, including:

  • Power distribution – LV, 11kV, 33kV, 66kV and 132kV cable installation.
  • Substations – cable routes between transformers, switchgear, sealing ends and cable trenches.
  • Renewable energy – wind farms, solar farms, battery storage and grid connection projects.
  • Rail infrastructure – signalling, traction power, telecoms and power cable routes.
  • Telecommunications – fibre optic and copper cable pulling through ducts.
  • Industrial sites – factories, process plants, data centres and critical power systems.
  • Civil engineering – underground cable ducts, trenches, chambers and utility corridors.

The aim is to install the cable without exceeding the manufacturer’s pulling limits or damaging the cable. This requires the correct equipment, a suitable route and trained personnel.

Why Cable Pulling Matters

A power cable can be damaged before it is ever energised. Poor handling during installation is one of the most avoidable causes of future cable problems.

Incorrect cable pulling can cause:

  • Outer sheath damage from sharp edges, stones, ducts or poor roller positioning.
  • Excess tensile stress on the conductor, screen, armour or cable structure.
  • Insulation stress caused by overbending or incorrect route design.
  • Water ingress risk if cable end caps or sheaths are damaged.
  • Cable deformation from incorrect drum handling, poor support or excessive force.
  • Future faults that only become visible after energisation or years of operation.

For high value MV and HV power cables, installation damage can be extremely expensive. It may result in failed testing, delayed energisation, cable replacement, outage risk or loss of manufacturer warranty.

This is why cable pulling should be treated as a controlled engineering process rather than a simple site task.

Cable Pulling Equipment

Different cable pulling jobs require different equipment. A short LV cable route may only need rollers, drum jacks and manual handling support, while a long MV or HV cable route may require winches, tension monitoring, cable socks, lubricants, bellmouths, duct rods and detailed pulling calculations.

Cable Pulling Equipment: What Each Product Does

Cable Pulling Winch Provides controlled pulling force for installing cables through ducts, trenches or cable routes where manual pulling is not suitable.
Cable Rollers Support the cable during pulling and reduce friction, dragging and contact with sharp surfaces or trench edges.
Cable Socks & Grips Attach to the cable or conductor to provide a secure pulling connection during installation.
Cable Drum Jacks Lift and support cable drums so the cable can be paid out safely and smoothly.
Cable Drum Trailers Transport and pay out heavy cable drums on site, often used for larger power cable installations.
Cable Lubricants Reduce friction between the cable sheath and duct wall during duct pulling.
Duct Rods & Conduit Rods Used to prove, prepare or pull draw lines through ducts and conduits before cable installation.
Bellmouths & Bends Help protect the cable at duct entries, exits and bends by reducing sharp edges and controlling cable movement.

View the full range of cable pulling and cable laying equipment.

Cable Pulling Winches

A cable pulling winch is used where the cable is too heavy, the route is too long, or the required pulling force is too high for manual installation.

Cable winches are commonly used for:

  • LV power cables
  • 11kV and 33kV MV power cables
  • 66kV and 132kV HV cables
  • EHV transmission cable installations
  • Fibre optic and telecoms cable pulling
  • Long duct routes and cable trench installations

A good cable winch allows the operator to control the pulling force and speed. For power cable work, tension monitoring is especially important because the cable manufacturer’s maximum permissible pulling tension must not be exceeded.

Why Cable Pulling Winches Are Used

Controlled Pulling Force Allows the operator to manage cable movement and reduce the risk of uncontrolled pulling.
Tension Monitoring Helps ensure pulling force remains within the cable manufacturer’s permitted limits.
Long Cable Routes Supports cable installation where route length, bends or cable weight make manual pulling impractical.
Improved Installation Control Helps coordinate drum pay-out, cable rollers, duct entry, site communication and pulling speed.

View cable pulling winches for LV MV HV power cable installation.

Cable Rollers, Socks & Grips

Cable rollers and cable socks are key parts of a controlled cable pull.

Cable rollers support the cable and reduce friction during installation. They help prevent the cable from dragging across the ground, trench edges, duct mouths, concrete surfaces or sharp obstructions. Rollers are especially important when pulling heavy LV, MV or HV cables across open trenches or into ducted routes.

Cable socks, also known as cable pulling grips, create the mechanical connection between the cable and pulling line. They are designed to grip the cable over a length of the sheath, distributing pulling force more evenly than a simple single-point attachment.

Correct selection matters because the wrong pulling grip, poor attachment or excessive force can damage the cable.

  • Straight cable rollers support cable movement along the route.
  • Corner rollers protect cable bends and route changes.
  • Bellmouth rollers support cable entry into ducts.
  • Cable socks provide grip for pulling cable into position.
  • Swivels help prevent cable twisting during pulling.

Cable socks must be selected based on cable outside diameter, cable type, pulling force, route conditions and manufacturer recommendations.

Cable Ducts, Lubricants & Duct Pulling

Many LV, MV and HV cables are pulled through underground ducts. The duct protects the cable route, but it can also increase friction if the duct is dirty, undersized, damaged, obstructed or has tight bends.

Before pulling cable into a duct, the route should be checked carefully. The duct should be clear, correctly sized and suitable for the cable diameter and bend radius.

Cable ducting and duct condition are especially important because a cable can be damaged if it catches on a collapsed duct, poor joint, sharp duct edge or debris inside the route.

Cable lubricants are often used when pulling cables through ducts. They reduce friction between the cable sheath and duct wall, making the pull easier and helping reduce pulling tension.

Duct Pulling Checks

Duct Size Check the internal duct diameter against the cable outside diameter and pulling requirements.
Duct Condition Confirm the duct is clear, undamaged and free from debris, sharp edges or collapsed sections.
Bends & Route Changes Check that bends do not create excessive friction or force the cable below its minimum bend radius.
Lubricant Use suitable cable lubricant where required to reduce friction during pulling.
Duct Entry Protection Use bellmouths, rollers or entry protection to prevent cable sheath damage at duct mouths.

After installation, ducts entering substations, buildings or plant rooms may also need sealing using duct seals to reduce water or gas ingress risk.

Pulling Tension & Cable Damage

Pulling tension is one of the most important factors in cable installation. Every cable has a maximum pulling tension based on its construction, conductor material, size and manufacturer instructions.

If pulling tension becomes too high, the cable may be damaged. This can happen when:

  • The duct route is blocked or partially collapsed.
  • The cable catches on a bend, joint or duct edge.
  • The route has too many bends or too much friction.
  • The drum is poorly positioned.
  • The wrong pulling equipment is used.
  • The cable is pulled too quickly or without monitoring.
  • Cable rollers are missing, poorly positioned or unsuitable.

During motorised cable pulling, the tension gauge should be monitored continuously. If tension rises suddenly, it may indicate that the cable is obstructed, caught or dragging somewhere along the route. The winch should be slowed or stopped so the cause can be found before damage occurs.

A cable pulling record or protocol can also be useful, especially for larger MV, HV and EHV installations. This helps demonstrate that the cable was installed within acceptable pulling limits.

LV, MV & HV Cable Pulling

Cable pulling requirements vary depending on the voltage level, cable size, route and project type.

LV, MV & HV Cable Pulling

LV Cable Pulling Used for low voltage power cables, service cables, SWA cables, control cables and building distribution systems. Drum handling, rollers and safe route preparation are still important.
MV Cable Pulling Used for 11kV, 20kV and 33kV cable installations. Pulling tension, bend radius, duct condition and cable sheath protection become more critical.
HV Cable Pulling Used for 66kV, 132kV and EHV cable systems. These installations usually require detailed planning, specialist equipment, tension monitoring and experienced cable installation teams.

For high voltage cable projects, pulling equipment may be used alongside HV cable joints, terminations and connectors, cable ducting, duct sealing, cable cleats, cable jointing tools and electrical safety equipment.

Cable Pulling Checklist

Before pulling a cable, the installation team should check the cable, route, equipment and installation method.

Cable Pulling Pre-Start Checklist

Cable Data Confirm cable type, diameter, weight, minimum bend radius and maximum pulling tension.
Cable Drum Check drum condition, rotation direction, drum position, jacks, spindle and pay-out control.
Route Inspect duct, trench, tray or cable route for obstructions, sharp edges, collapsed sections or difficult bends.
Pulling Equipment Check winch, rollers, cable socks, swivels, duct rods, lubricants, bellmouths and communication equipment.
Tension Control Set safe pulling limits and ensure the pulling force can be monitored during installation.
Site Communication Ensure the winch operator, drum operator and route observers can communicate clearly.
Post-Pull Inspection Inspect the cable route and cable ends, check for visible damage and record any anomalies.

The checklist should be adapted to the cable manufacturer’s instructions, site method statement, risk assessment and project specification.

Common Cable Pulling Mistakes

Cable pulling problems are often caused by poor planning, unsuitable equipment or lack of control during installation.

Common mistakes include:

  • Pulling without checking the cable route – ducts, bends and trenches should be inspected before installation.
  • Ignoring maximum pulling tension – pulling force must stay within the cable manufacturer’s limit.
  • Using too few cable rollers – unsupported cable can drag, scrape or be damaged by edges and stones.
  • Poor drum positioning – incorrect pay-out angle can increase tension and make cable handling harder.
  • Not using cable lubricant where needed – friction can increase significantly in long or tight duct routes.
  • Using the wrong cable sock – the pulling grip must suit the cable diameter and pulling load.
  • Pulling too quickly – uncontrolled speed can make it harder to respond to rising tension or cable movement.
  • Failing to record tension data – pulling records can be important for quality assurance and warranty discussions.
  • Removing cable end caps too early – cable ends should remain protected from moisture and contamination until termination or jointing.

A safe cable pull is controlled, monitored and planned around the cable’s physical limits.

Cable pulling normally requires a complete installation equipment package rather than one isolated product.

  • Cable Pulling & Cable Laying Equipment – complete equipment range for LV, MV, HV and EHV cable installation.
  • Cable Winches – winches for pulling LV, MV and HV power cables where controlled pulling force is required.
  • Cable Rollers – rollers for supporting cables during pulling and laying.
  • Cable Socks – pulling grips for cable installation through ducts, conduits and trenches.
  • Cable Lubricants – lubricants for reducing friction during cable pulling into ducts.
  • Cable Duct – underground ducting for LV, MV and HV power cable protection.
  • Duct Seals – sealing systems for cable ducts entering substations, buildings and plant rooms.
  • HV Cable Joints, Terminations & Connectors – cable accessories used after cables are installed and prepared for jointing or termination.

Cable Pulling FAQs

Q: What is cable pulling?

A: Cable pulling is the controlled installation of cable through a duct, trench, conduit, tray, tunnel or cable route. It is used for LV, MV and HV power cables, fibre optic cables, telecoms cables and control cables.

Q: What equipment is used for cable pulling?

A: Cable pulling equipment can include cable pulling winches, cable rollers, cable socks, grips, swivels, drum jacks, drum trailers, duct rods, cable lubricants, bellmouths and cable protection products.

Q: What is a cable pulling winch?

A: A cable pulling winch is a mechanical pulling machine used to install cables where controlled pulling force is required. Cable winches are commonly used for heavy, long or high-tension cable pulls, including LV, MV and HV power cable installations.

Q: Why is pulling tension important?

A: Pulling tension is important because excessive force can damage the cable conductor, insulation, screen, armour or outer sheath. Pulling force should be monitored and kept within the cable manufacturer’s permitted limits.

Q: Why are cable rollers used?

A: Cable rollers support the cable during pulling and help reduce friction, dragging and sheath damage. They are used along trenches, ducts, bends and cable routes to control the cable’s movement.

Q: What are cable socks used for?

A: Cable socks are pulling grips used to attach a cable to a winch rope, draw rope or pulling line. They grip the cable over a length of sheath and help distribute the pulling force during installation.

Q: When should cable lubricant be used?

A: Cable lubricant should be considered when pulling cables through ducts, conduits or routes where friction may be high. It helps reduce friction between the cable sheath and duct wall, making the pull easier and reducing tension.

Q: What causes cable damage during pulling?

A: Cable damage during pulling can be caused by excessive tension, poor roller placement, sharp duct edges, collapsed ducts, stones, tight bends, poor drum handling, unsuitable pulling grips or pulling without monitoring the cable route.

Conclusion

Cable pulling is a critical stage in LV, MV and HV cable installation. The quality of the pull can directly affect the long-term reliability of the cable system.

A safe and successful cable pull depends on correct planning, suitable equipment, clean cable routes, controlled pulling tension, trained operators and careful inspection. Cable winches, rollers, socks, drum jacks, lubricants, duct rods and duct entry protection all play an important role in reducing installation risk.
