Cembre B-FL750ND | 18V Handheld Cordless Hydraulic Tool With Bilinear Structure

Published 26 Mar 2021

18V Handheld Cordless Hydraulic Tool With Bilinear Structure I Cembre B-FL750ND

Bilinear Hole Punching Tool

Cembre B-FL750ND

Bilinear

The B-FL750ND 18V Handheld Cordless Hydraulic Tool from Cembre is the new generation of handheld, cordless cable cutting and cable crimping tools, characterised by the “Bilinear” structure of the tool’s mechanics.

Operator comfort and convenience are key factors in producing repeatedly consistent high integrity crimped joints. Cembre ‘ND’ bilinear tools have their mechanical centre of gravity nearest to the operator’s wrist to optimise the overall ergonomics of the tool and provide a wider support for the hand.

Thus the innovative misalignment between the pump drive mechanism and the hydraulic system both reduce the torque generated on the operator’s wrist and best distribute the stresses acting on the hand.

A greater punch speed and punching force result from a revitalised hydraulic system with double speed action. The balanced punching head pivots 180deg through a full 360deg rotation for ease of use in confined spaces.

Smart ReleaseEquipped with intelligent automatic return at the end of the pressing cycle (Smart Release) and Li-Ion 18 V-2Ah rechargeable high capacity batteries.

Fitted with a maximum pressure sensor for enhanced precision and repeatability of the maximum pressure cycle, and a pressure relief valve providing additional safety for the operator.

Electronic Pressure Sensor (EPS)

The Electronic Pressure Sensor (EPS) guarantees the precision of the crimping operation, checking the actual value of pressure and informing the operator about possible errors.

The OLED display provides essential real time operating data, including:

  • generated crimping force thus verifying accordance with best practice
  • battery charge status
  • general operating information
  • the number of work cycles completed and remaining before recommended maintenance.

Weight and balance have been reconfigured to yield improvements in handling and convenience. The more rigid structure of the bi-component plastic body provides greater mechanical protection while its rubber inserts boost operator safety and comfort.

Quieter operation, illumination of the working area via LED lights and a minimum of vibration enhance the tool’s practicality.

SMARTOOL technology

The integrated memory card enables the user to store data from up to 200,000 compression cycles for transfer to a computer via a USB cable. (SMARTOOL technology).

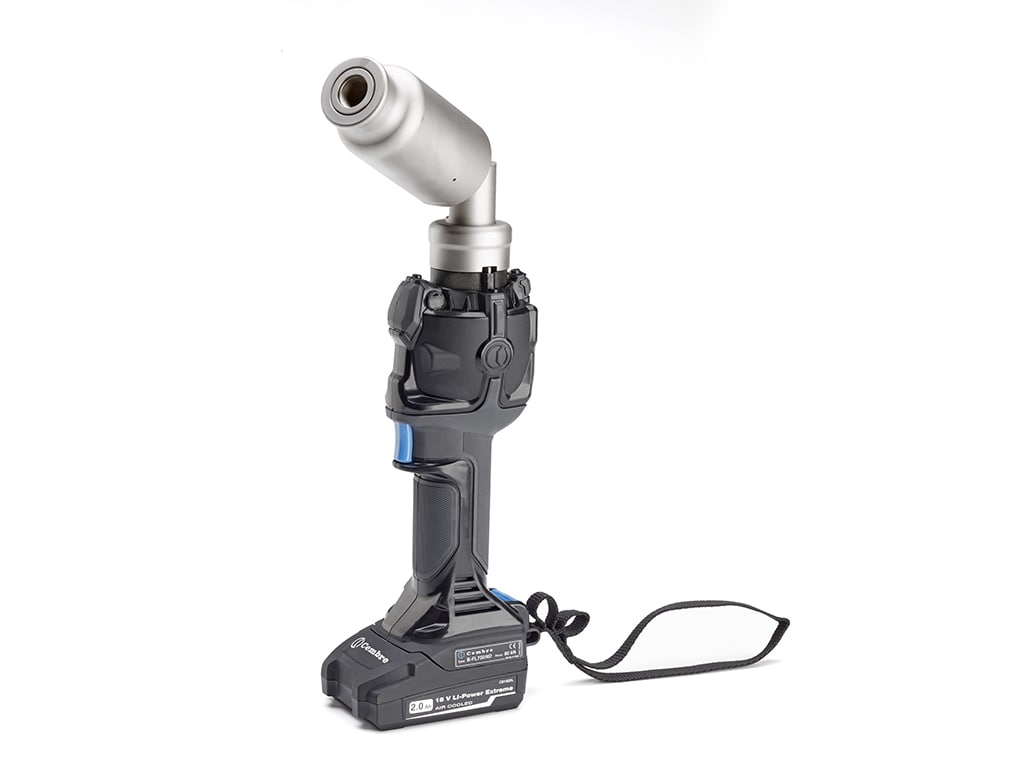

Cembre Bilinear puller type hole punching tool

Cembre B-FL750ND |  Bilinear Puller Type Hole Punching Tool

Cembre B-FL750ND

Operating features:

  • Bilinear mechanical design
  • Smart Release system to automatically retract the ram at the end of the crimping cycle
  • OLED multifunctional display with touch button
  • Electronic Pressure Sensor (EPS)
  • SMARTOOL technology for viewing and downloading operational data
  • 180° rotating head
  • Start button protected against accidental operation
  • Manual pressure release button
  • Illumination of working area via 4 x LED lights
  • Bi-component plastic body
  • Ergonomic design for operator comfort
  • Li-Ion 18.0 V-2Ah rechargeable high capacity battery
  • Battery connection system with release button.

18V Handheld Cordless Hydraulic Tool

Technical Characteristics

Type of Action Hole Punching
Maximum Diameter Pierceable 140mm
Battery Material Li-Ion
Battery Voltage 18V
Battery Current 2Ah
Length 136mm
Height 474mm
Width 81mm
Weight 4.1kg
Available Punching Accessories Round punch, square punch, rectangular punch, D punch.
