Network Rail Full Acceptance for Nexans Tee Connectors & Bushings for 25kV Power Transformers

Published 08 Mar 2022

Nexans

PR by Chris Dodds Sales & Marketing Manager at Thorne & Derrick | 08.03.2022

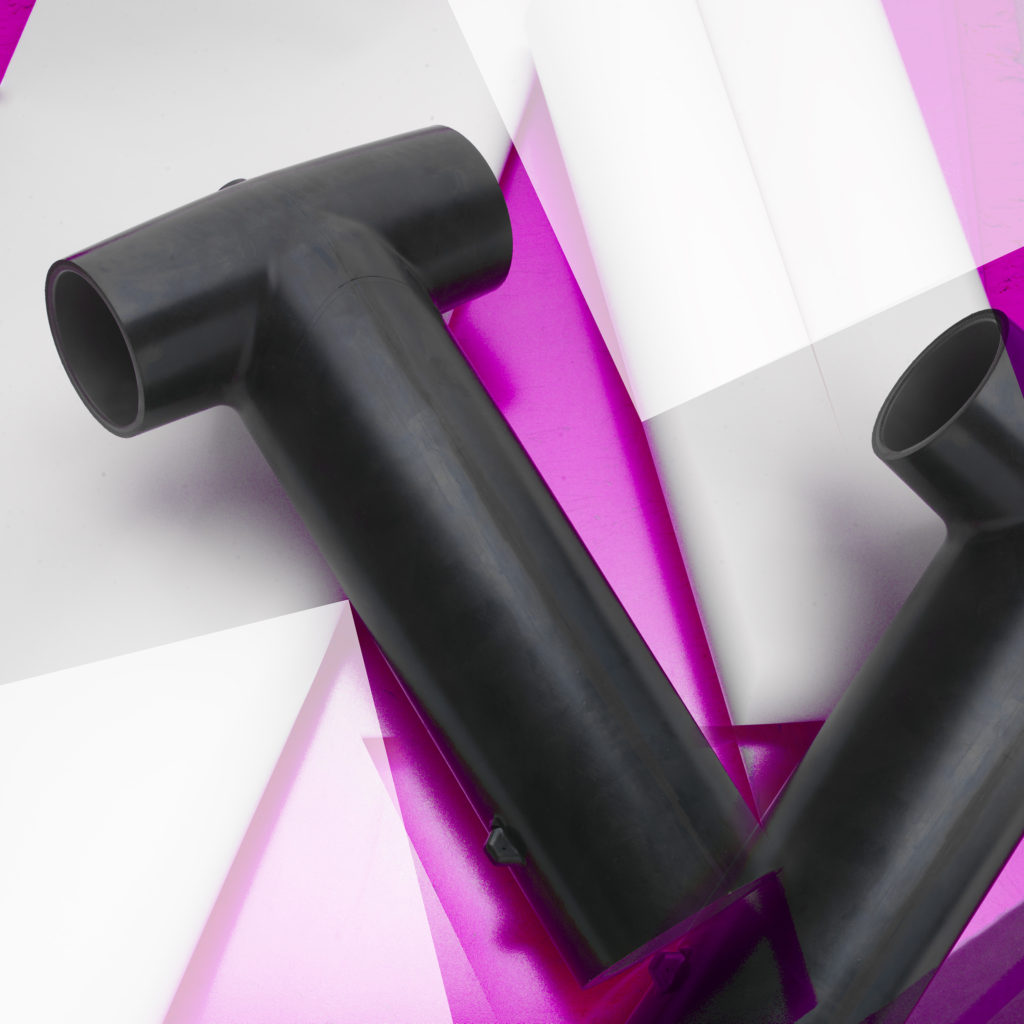

Following extensive and successful field trial testing the Nexans Euromold range of Connectors & Bushings have now received Full Acceptance by Network Rail with Official PADS Approval – specifically this includes Nexans Tee Connector model QM909TB Interface F and associated equipment bushing QM909AR.

The product authorisation by Network Technical Head Power Distribution HV/LV on behalf of the Network Rail Acceptance Panel (NRAP) permits the installation of the Tee Connectors and Bushings to ground mounted oil filled transformers up to 52kV – this covers:

Nexans Euromold Tee Connector Model QM909TB | Interface F Nexans Part Number 7009193 | PADS Catalogue No 0086/099432

Nexans Euromold 52kV 1250A Bushing | Interface F including 6 hole KBCDS-400 Clamping Kit & Sealing Gasket | PADS Catalogue No 0086/099430

➡ See Certificate of Acceptance PA05/05422 | Network Rail Certification

Thorne & Derrick are currently supplying this range of transformer terminations to several UK rail projects – we are Approved Vendors to Network Rail, CP6 Framework Delivery Partners and several HS2 Joint Ventures working on rail transport projects.

➡ For further information on Interface F Cable Accessories including Tee Connectors, Slip-on Terminations, Joints & Bushings refer to the download.

Nexans PADS Approved

Further Reading

25kV Switchgear Terminations

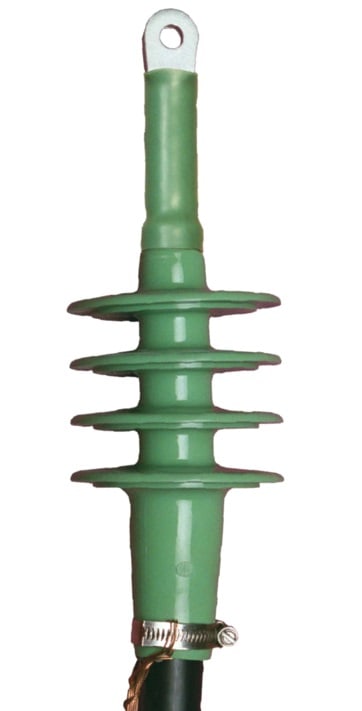

Nexans AFN36-6 42kV single core cable terminations are Network Rail PADS Approved for indoor 25kV air insulated switchgear applications.

The cold-applied Slip-on rail cable termination is approved for use with Siemens ASG25 – 25kV air insulated switchgear for AC traction power supply systems.

Nexans 42kV Order Code AFN36-6

Network Rail 054/214930

Network Rail Certificate of Acceptance PADS PA05/06215

AFN36 cable terminations are used to connect medium voltage feeder cables to supply three-phase AC electrical power to traction substations on electrified lines.

Contact Thorne & Derrick for further information, competitive quotations or assistance with the selection and specification of Medium Voltage Rail Cable Accessories.

Rail Cable Accessories, Electrification

& Installation Equipment

Thorne & Derrick supply an extensive range of 400V-33kV Rail Cable Accessories & Power Distribution Sytems including feeder pillars to contractors undertaking Low Voltage Power Distribution, HV Electrification & Substations, DC Traction & Networks, OLE and Track Feeder Cable Renewals – a complete range of Network Rail PADS approved track terminations, cable joints, cable repair and connection products up to 25kV AC.

Full range of Cable Pulling Equipment & Products to ensure safe and efficient of rail cables in to cable ducts and containment infrastructure including cable troughs.
