Nexans SPDF Heat Shrink Termination | PILC PICAS Outdoor 3 Core 12kV MV Cables

Published 05 Dec 2018

Cable Terminations 11kV 33kV | Single & 3 Core | Medium & High Voltage Cables MV HV

Cable Terminations

Nexans SPDF are 3 core heat shrink cable terminations for use outdoor and specified to terminate and connect medium/high voltage cables in the following voltage classes:

6/10 (12) kV
6.35/11 (12) kV

Heat shrinkable 11kV-33kV Nexans 3-core termination kits, suitable for medium voltage paper (PILC) insulated cables within an outdoor environment widely used by power utilities and in industrial applications.

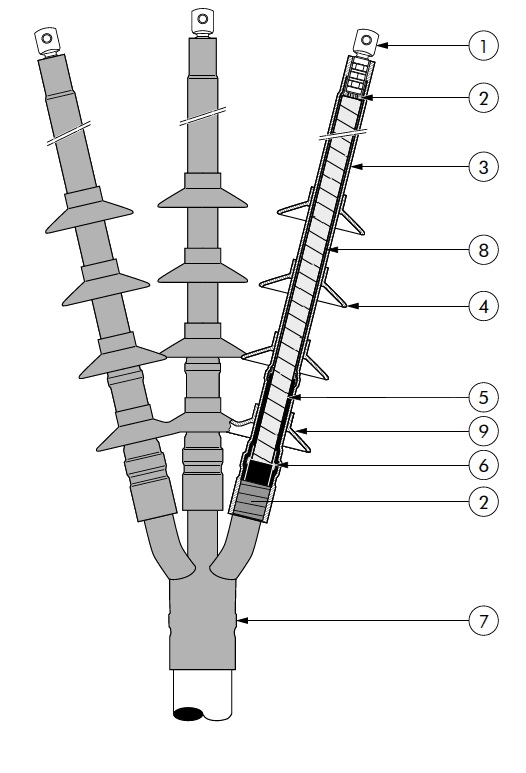

Nexans SPDF Heat Shrink Termination

11kV Terminations 3 Core Cables

Cable Lugs (Cembre Crimp Lugs or Pfisterer Sicon Mechanical Lugs)
Water Sealing Mastic
Anti Tracking Heat Shrink Tube (Red)
Anti Tracking Sheds (outdoor terminations only)
Stress Control Heat-Shrinkable Tube (Black)
Stress Control Mastic
3 Core Heat Shrink Cable Break-out
Oil Barrier Tube
Anti-tracking tri-shed

Nexans SPDF Heat Shrink Termination Specification

The following tables enable the selection of indoor cable terminations using Heat Shrinkable technology manufactured by Nexans:

Nexans Part Reference	Voltage Class (Um)	Cable Cross Section (sqmm)
SPDF 12/16-25 SPDF 12/35-70 SPDF 12/95-150 SPDF 12/185-500	12kV	16-25 35-70 95-150 185-500

Nexans

Thorne & Derrick distribute the complete range of medium/high voltage electrical equipment manufactured by Nexans – this includes Euromold bushings for use with oil fluid or gas insulated switchgear or transformers and associated screened separable connectors according to both IEC (Euromold) and IEEE (Elastimold) for the termination, connect+disconnect of MV-HV cables onto power distribution systems. To protect power systems against high voltage surges resulting from lightning or switching a complete range of surge arresters are available to be used with Euromold connectors in 11kV/12kV, 24kV and 33kV/36kV voltage classes.

Nexans Joints Connectors Terminations
