Nexans SPDI Heat Shrink Termination | PILC PICAS Indoor 3 Core 12kV MV Cables

Published 05 Dec 2018

11kV Termination - Single Core XLPE EPR Heat Shrink Cable Terminations

Cable Terminations 11kV 33kV | Single & 3 Core | Medium & High Voltage Cables MV HV

Cable Terminations

Nexans SPDI are 3 core heat shrink cable terminations for use indoor and specified to terminate and connect medium/high voltage cables in the following voltage classes:

  • 6/10 (12) kV
  • 6.35/11 (12) kV

Heat shrinkable 11kV Nexans 3-core termination kits, suitable for medium voltage paper (PILC) insulated cables within an indoor environment widely used by power utilities and in industrial applications.

Nexans SPDI Heat Shrink Termination

Nexans SPDI Heat Shrink Termination

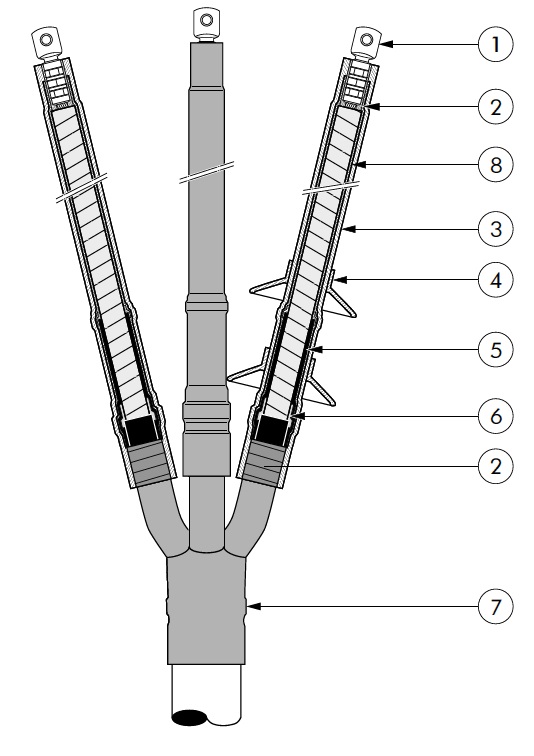

11kV Terminations 3 Core Cables
  1. Cable Lugs (Cembre Crimp Lugs or Pfisterer Sicon Mechanical Lugs)
  2. Water Sealing Mastic
  3. Anti Tracking Heat Shrink Tube (Red)
  4. Anti Tracking Sheds (outdoor terminations only)
  5. Stress Control Heat-Shrinkable Tube (Black)
  6. Stress Control Mastic
  7. 3 Core Heat Shrink Cable Break-out

Nexans SPDI Heat Shrink Termination Specification

The following tables enable the selection of indoor cable terminations using Heat Shrinkable technology manufactured by Nexans:

Nexans Part Reference Voltage Class (Um) Cable Cross Section (sqmm)
SPDI 12/16-25
SPDI 12/35-70
SPDI 12/95-150
SPDI 12/185-500		 12kV 16-25
35-70
95-150
185-500

Nexans
