Cable Clamps & Cable Cleats

Cable Clamps

Cable Cleats for MV Medium Voltage & HV High Voltage Power Transmission Cables

Universal Cable Clamps for Power Cables

id-Technik cable clamps are the world-wide leading brand of polyamide cable supports and management products.

The id-Technik range of cable clamps and cable cleats are suitable for use with all types of single and multi-conductor HV, MV and LV power cables in indoor and outdoor applications – typically used to clamp and support MV HV power cables in the offshore wind industry including wind turbine generators, masts and shafts applications.

Cable clamps are designed especially for the system cable e.g cable fastening for the all-purpose application in all areas of cable connections including high voltage power networks in both onshore and offshore substations such as wind energy farms.

Cable Clamps

Cable Clamps | Maximum resistance to short circuits for all voltage ranges and under the most extreme conditions.

Polyamide Cable Clamps

With the selection of a polyamide suitable for these requirements, id-Technik was the first manufacturer to introduce a polyamide cable clamp to the world market offering an alternative to metal (aluminium or stainless steel) and wooden cable clamps.

id-Technik distributes Cable Clamps for power cables of all voltage ranges (LV MV HV 1kV to 765kV). The diameter range of these power cables are from 24mm to 250mm, except the Elastic Inlay as it is possible to fasten smaller cables with diameters down to 19mm for electric compression of diameter variations to avoid cable damage caused by changes of load and ambient temperature.

An Overview of the id-Technik Cable Clamp Ranges

Cable Clamp Part Number Dynamic Resistance To Short Circuits Outer Diameter of Cables Product Image
Cable Clamps for single- and multi-core cables (also suitable for bundled fastening of multiple cables)
Series K 12,500N 19-90mm Series K

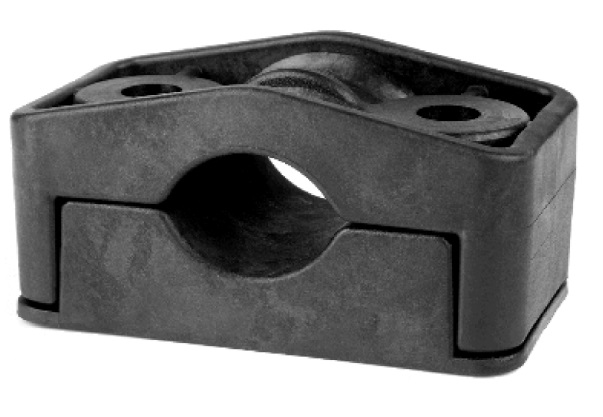

Series KT 25,000N 22-39mm Series KT

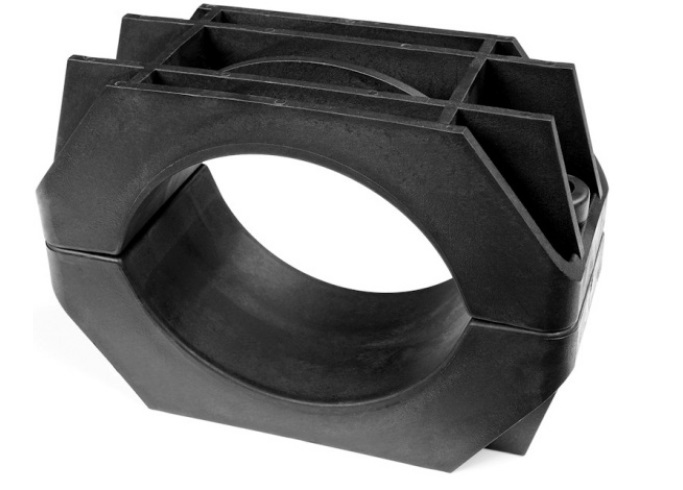

Series KR 30,000N 72-250mm Series KT
Cable Clamps for bundled fastening of single- and multi-core cables

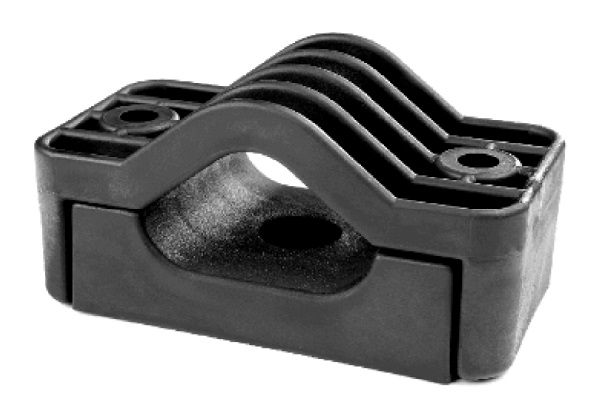

Series KS 13,000N 22-46mm Series KS

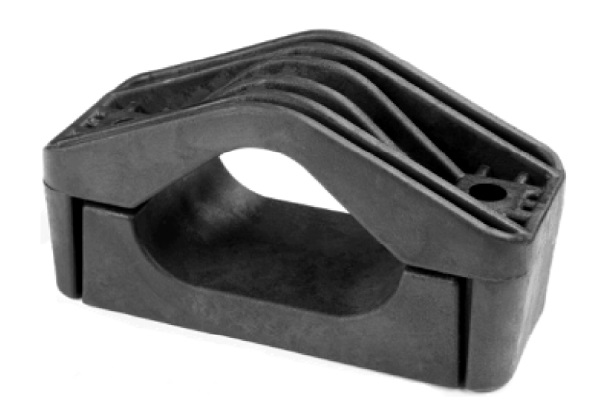

Series KP 25,000N 26-64mm Series KP
Series KH 30,000N 59-165mm Series KH

➡ Browse below sections to overview the complete range of id-Technik Cable Clamps & Cleats.
