Nexans DMV65 Torque Amplifiers

DMV65 Torque Amplifiers

Cable Jointers Tools

Nexans DMV65 torque amplifiers are suitable for a safe and reliable installation of shear-off-head bolts in mechanical lugs and connectors using standard cordless screwdrivers.

The torque amplifier Nexans DMV65 is appropriate for the installation of shear-off-head bolts in mechanical connectors using standard cordless screwdrivers. The jointers tool enables an optimum clamping force using mechanical connectors with conductor cross-sections up to 630sqmm.

The Nexans DMV65 ensures outstanding installation quality for mechanical connectors and cable lugs up to Ø 52 mm when installing MV HV medium/high voltage joints and terminations in both heat shrink and Cold Shrink technology.

The operating parts and rods of the Nexans DMV65 are manufactured from high strength quality steel whilst the engine body is made of aluminium with anodised surface.

Nexans DMV65 Technical Data

Shearhead Bolt Cable Lugs & Connectors Tool

  • Nexans Part Reference – DMV65
  • Max Engine Torque in (Nm) – 65
  • Package – Tool Case
  • Dimensions in (mm) – 370 x 240 x 120
  • Weight (g) – 2600
  • Triangle
  • 1/2″ Square for mounting of the socket wrench
  • Rods length 80.5 mm
  • Transmission ratio 1:24
  • Max. engine torque 65 Nm
  • Min. driving torque 5 Nm

Nexans DMV65

Kit Contents

  • Tool case with foam pads
  • Outer hexagon tools SW10, 13, 14, 17, 19, 22, 24
  • Hexagon socket key SW5
  • Instruction manual by Nexans
  • Inner hexagon tools SW5, 6, 8, 10

Design

  • Installed rods, length 80.5 mm
  • Rod socket
  • Inner tapped hole for Ø < 40 mm
  • Outer tapped hole for Ø < 53 mm
  • ½” Square with ball coupling and release function
  • Release hole
  • Gearbox
  • Triangle
  • Hexagon socket key SW5

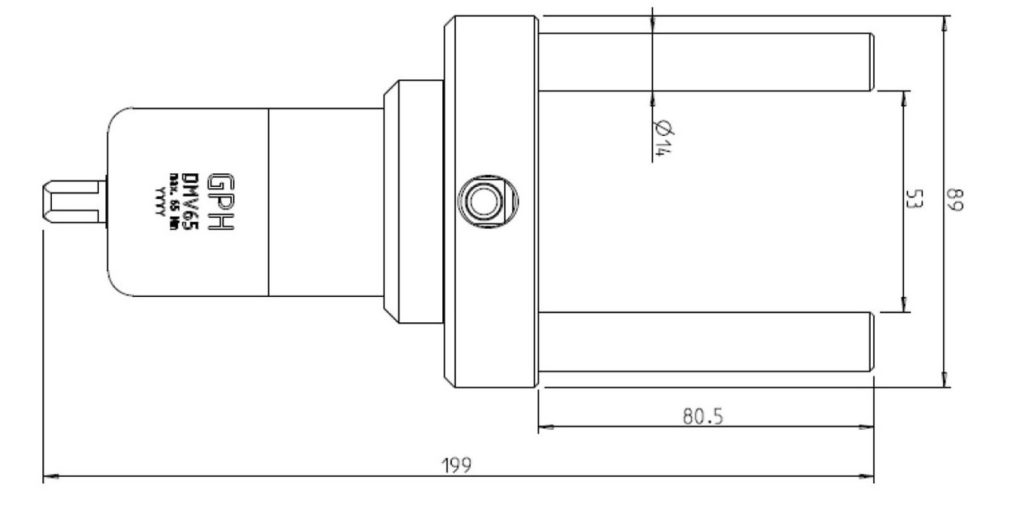

Nexans DMV65 Torque Amplifiers - Diagram

Nexans DMV65 Torque Amplifiers – Diagram

  1. Rods, assembled, length 80.5 mm
  2. Rod socket
  3. Inner tapped hole for Ø < 40 mm
  4. Outer tapped hole for Ø < 53 mm
  5. 1/2″ Square with ball coupling
  6. Release hole
  7. Gearbox
  8. Triangle
  9. Hexagon socket key SW5
