Solar Park Installations

Klauke Tools For Solar Park Installations

Always a secure connection…

Since 1960, Klauke have been a go-to partner for electrical connection materials. Cable cutting and crimping tools, manufactured by Klauke and distributed by Thorne & Derrick, are renowned for their high-quality in cable crimping, cutting and punching.

Klauke perform testing regularly, both in their in-house laboratory and at independent test centers – this is how they ensure that all products offered are of outstanding quality, fully compatible and combined into a perfect system. The extensive Klauke portfolio demonstrates expertise in solutions in electrical connection technology from 0.14 to 1,000 mm², for almost every challenge in electrical installation.

As a trendsetter, Klauke have created their own cable lug series (the R-Series), and work closely with key customers when it comes to customised individual solutions for various applications. In cable lug manufacturing, Klauke always choose the best materials, using high-purity copper and aluminum, which ensure a perfect electrical connection. The soft copper ensures an optimised material flow during crimping and reduces the effort required.

Battery operated cable crimping tools are made from the highest quality materials, rust proof and surface finished with a reputation for providing a long service live, consistently delivering safe electrical cable crimping connections for low and high voltage applications, 6-400sqmm.

Solar Installation Tools

Safety and reliability through quality

Klauke products are tested by authorised inspection agencies certified to ISO 17025 so that we’re able to offer our customers the highest safety and reliability possible. This ensures accurate and reliable test results. The scope of testing ranges from the connection materials to the tools. This serves to firmly establish the prerequisites for market entry and guarantees quality assurance, because the conformity assessment includes performance and qualification testing ranging from drop tests, flammability tests and functional safety tests to tensile testing and much more.

Klauke Tools CERTIFICATES

Company

  • ISO 14001
  • ISO 9001

Quality of the connection

  • IEC 61238-1 (Class A)
  • UL468A-468B
  • DNV

Safety of the tools

  • IEC 62841-1
  • VDE nach REG. F647

When it comes to safety and reliability, usability and robustness, Klauke’s products fulfill the highest demands and deliver more than the standards require.

Certified quality management systems of the Klauke companies

  • ISO 9001:2015 – Customer- and process-oriented quality management system
  • IATF 16949:2016 – The IATF 16949 standard goes beyond the DIN ISO 9001-series standards, and is the internationally recognized standard for quality management systems in the automotive industry.
  • ISO 14001:2015 – Environmental management systems for continuously improving environmental performance

A Complete Solution For Quality Solar Installations

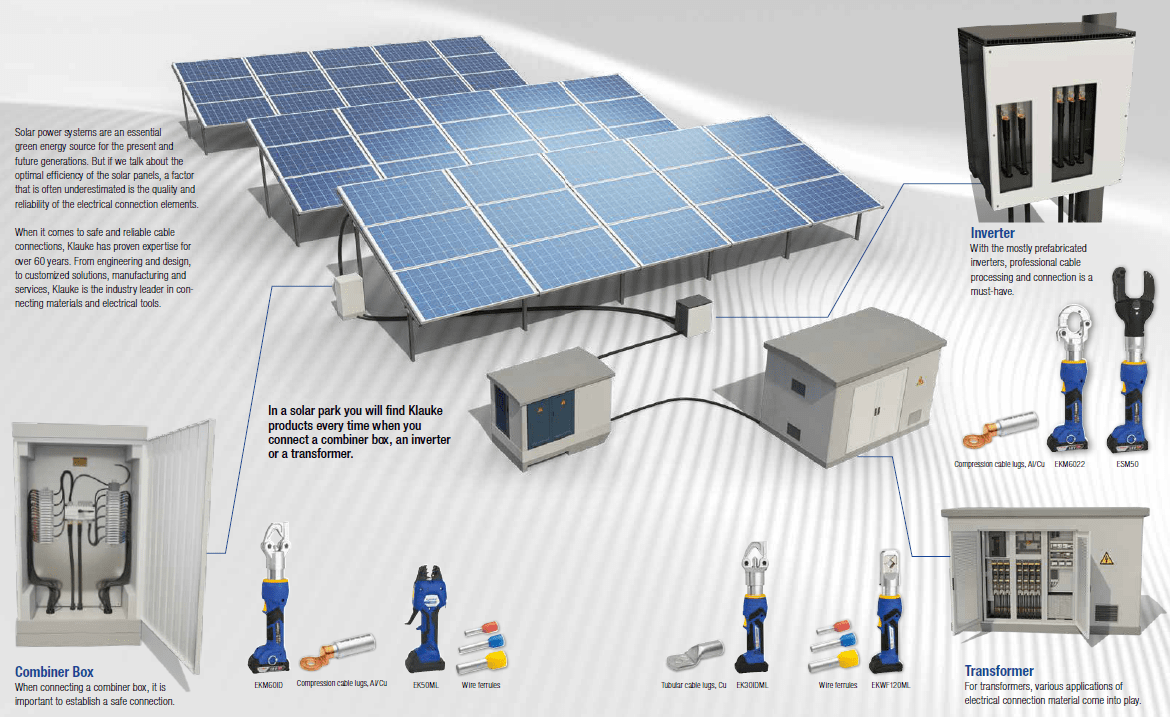

Klauke Solar Installations

Solar power systems are an essential green energy source for the present and future generations. However, if we talk about the optimal efficiency of the solar panels, a factor that is often underestimated is the quality and reliability of the electrical connection elements.

When it comes to safe and reliable cable connections, Klauke has proven expertise for over 60 years. From engineering and design, to customised solutions, manufacturing and services, Klauke is the industry leader in connecting materials and electrical tools. In a solar park you will find Klauke products every time you connect a combiner box, an inverter or a transformer.

Combiner Box Installation

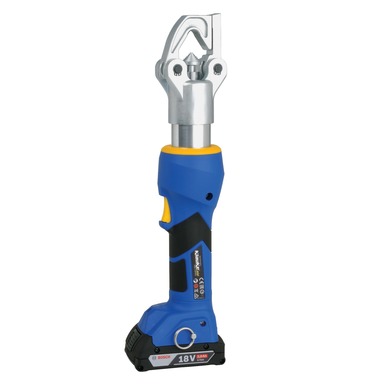

EKM 60 ID

Battery powered hydraulic crimping tool 10 – 240 mm²

  • Extra large crimping area due to innovative 2-stage telescopic cylinder
  • Indent crimping – no change of crimping dies required

IEC UL approvals

EKM 60 Crimping

Klauke EKM 60 ID

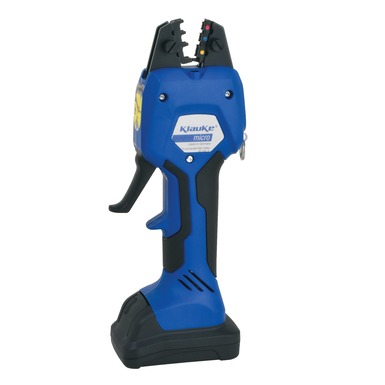

EK 50 ML

Electromechanical crimping tool  0,14 – 50 mm²

  • With the multitude of available crimping dies, the Klauke micro offers a very wide range of applications
  • Excellent crimping results with minimum effort

Certification

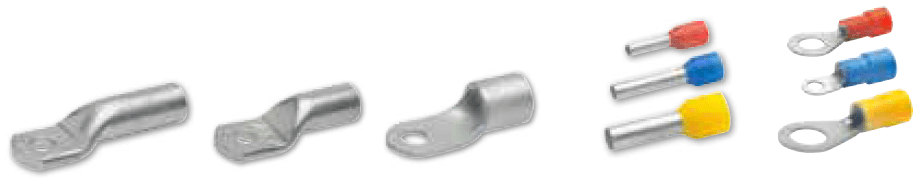

EK 50 ML Cable Lugs

Klauke EK 50 ML

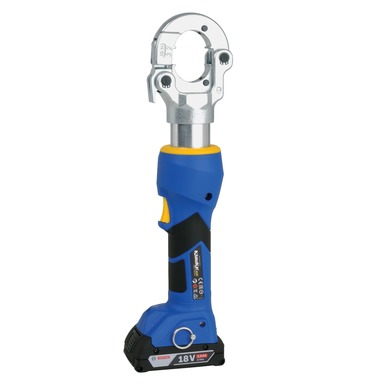

EKM 60/22

Battery powered hydraulic crimping tool, 6 – 300 mm²

  • The EKM6022 has a very large crimping range of up to 300 mm²
  • Interchangeable crimping dies of the 22 series can be used

IEC Approvals

Klauke EKM 60 22

ESM 50

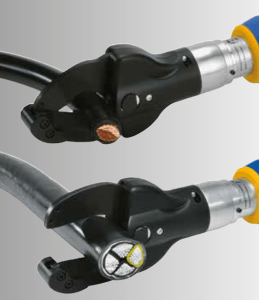

Battery powered hydraulic cutting tool 50 mm dia. for copper and aluminium cable

  • High cutting power for cutting copper and aluminium cables (fine stranded also)
  • Saves time with multiple cuts thanks to the manual retract stop (MRS)
  • Very low weight (3kg)
  • Optimum center of gravity

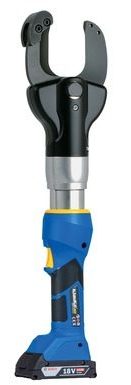

ESM 50 Battery Powered cutting Tool

  Klauke ESM 50

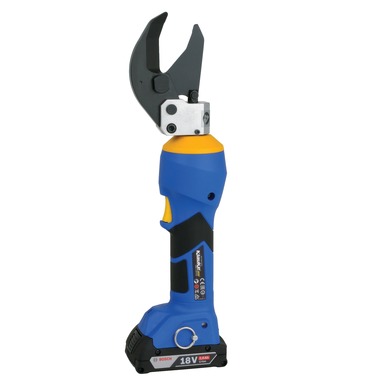

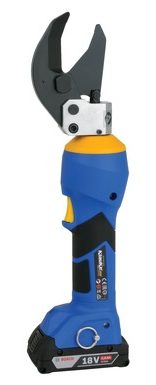

ES 32 F ML / ES 32 ML

Battery powered hydraulic cutting tools 32 mm dia.

  • The ES32FML is ideally suited for cutting fine and superfine stranded copper cables
  • The ES32ML is designed for cutting multi-stranded copper and aluminium cables
  • Both tools have a slim cutting head – ideal when space is critical
Klauke ES 32F ML

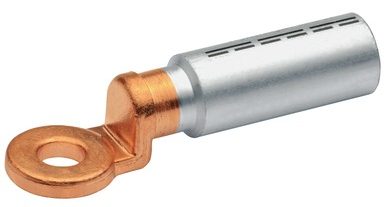

Compression Cable Lugs AI CU

Compression cable lugs, Al/Cu and aluminum, tinned

Al/Cu: 16 – 400 mm², Aluminum: 16 – 500 mm²

  • For non-tension connections of Al conductors to DIN EN 60228
  • Tube dimension to DIN 46329

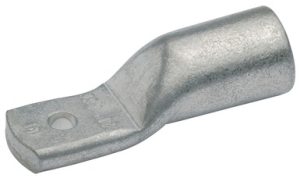

Tubular Cable Lugs CU

Tubular cable lugs, Cu, standard type

6 – 400 mm², R-Series

  • For multi-stranded round conductors, e.g. to DIN EN 60228 Cl. 2
  • In combination with the EKM 60 ID suitable for fine wired conductors
  • For pre-rounded multi-stranded sector shaped conductors

Insulated cable end-sleeveInsulated cable end-sleeve

according to DIN with Easy-Entry

  • For fine and superfine stranded conductors, e.g. according to DIN EN 60228 Cl. 5 and 6
  • Easy-Entry Insulation for splice-free cable entry
  • Alternative color codings available

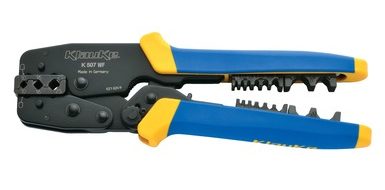

K 507 WF

Crimping tool with interchangeable crimping dies for wire ferrules, 0,5 – 50 mm²

  • Changing crimping dies on the K507WF is quick and easy (dies easily stowed in the handle)
  • Due to the optimum width, fewer pressings are required
Klauke K 507 WF

Combiner Box Installation

EKM 60 ID

Battery powered hydraulic crimping tool 10 – 240 mm²

  • Extra large crimping area due to innovative 2-stage telescopic cylinder
  • Indent crimping – no change of crimping dies required

IEC UL approvals

EKM 60 Crimping

Klauke EKM 60 ID

Compression Cable Lugs AI CU

Compression cable lugs, Al/Cu

16 – 400 mm²

  • For connecting aluminum conductors to copper terminals
  • For non-tension connections of Al conductors to DIN EN 60228
  • Tube dimension to DIN 46329

EKM 60/22

Battery powered hydraulic crimping tool, 6 – 300 mm²

  • Extremely fast: Automatic retract stop (ARS) for positioning control in case of multiple crimps

IEC Approvals

Klauke EKM 60 22

ESM 50

Battery powered hydraulic cutting tool 50 mm dia. for copper and aluminium cable

  • High cutting power for cutting copper and aluminium cables (fine-stranded also)
  • Saves time with multiple cuts thanks to the manual retract stop (MRS)
  • Very low weight (3kg)
  • Optimum center of gravity
  Klauke ESM 50

Transformer Installation

EKM 60/22

Battery powered hydraulic crimping tool, 6 – 300 mm²

  • Extremely fast: Automatic retract stop (ARS) for positioning control in case of multiple crimps

IEC Approvals

Klauke EKM 60 22

ES 32 F ML / ES 32 ML

Battery powered hydraulic cutting tools 32 mm dia.

  • The ES32FML is ideally suited for cutting fine and superfine stranded copper cables
  • The ES32ML is designed for cutting multi-stranded copper and aluminium cables
  • Both tools have a slim cutting head – ideal when space is critical
Klauke ES 32F ML ESM 50

Battery powered hydraulic cutting tool 50 mm dia. for copper and aluminium cable

  • High cutting power for cutting copper and aluminium cables (fine-stranded also)
  • Saves time with multiple cuts thanks to the manual retract stop (MRS)
  • Very low weight (3kg)
  • Optimum center of gravity
Klauke ESM 50

EKM 60 ID

Battery powered hydraulic crimping tool 10 – 240 mm²

  • Extra large crimping area due to innovative 2-stage telescopic cylinder
  • Indent crimping – no change of crimping dies required

IEC UL approvals

EKM 60 Crimping

Klauke EKM 60 ID

EK WF 120 ML

Battery powered hydraulic crimping tool for wire ferrules 6 – 120 mm²

  • Simple and safe crimping using innovative technology
  • Square crimping for optimal compatibility with the common clamps
  • The use of interchangeable crimping dies is completely unnecessary because the square mechanism adjusts flexibly to the respective cable end sleeve shape

IEC UL approvals

Klauke EK WF 120 ML

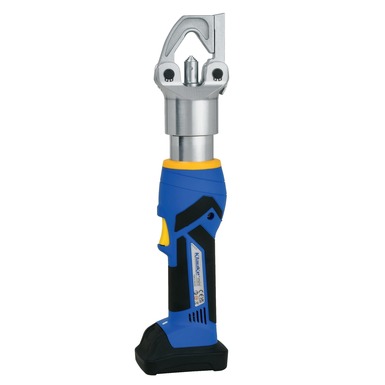

EK 30 ID ML

Battery powered hydraulic crimping tool 6 – 120 mm²

  • Indent crimping – no change of crimping dies required
Klauke EK 30 ID ML EK 50 ML

Electromechanical crimping tool  0,14 – 50 mm²

  • The Klauke micro with intuitive PowerSense function combines the benefits of manual crimping tools with the convenience of battery powered hydraulic crimping tools
Klauke EK 50 ML

Compression cable lugs, Al/Cu and aluminum, tinned

Al/Cu: 16 – 400 mm², Aluminum: 16 – 500 mm²

  • For non-tension connections of Al conductors to DIN EN 60228
  • Tube dimension to DIN 46329




Tubular Cable Lugs CU

Tubular cable lugs, Cu, standard type

6 – 400 mm², R-Series

  • For multi-stranded round conductors, e.g. to DIN EN 60228 Cl. 2
  • In combination with the EKM 60 ID suitable for fine wired conductors
  • For pre-rounded multi-stranded sector shaped conductors




Tubular Cable Lugs

Tubular cable lugs for switch cabinet (narrow palm) connections, Cu, standard type

35 – 300 mm²

  • For multi-stranded round conductors, e.g. to DIN EN 60228 Class 2
  • In combination with the EKM 60 ID suitable for fine wired conductors
  • For fastening within switch cabinets with reduced connecting space

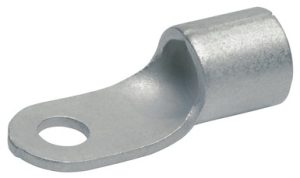

Solderless Terminals DIN

Solderless terminals to DIN, Cu

0,5 – 240 mm²

  • For round conductors, e.g. to DIN EN 60228 Cl. 2, 5 and 6
  • To DIN 46234
  • High-quality brazing process in the cimp area




Insulated cable end-sleeve

Insulated cable end-sleeve

according to DIN with Easy-Entry

  • For fine and superfine stranded conductors, e.g. according to DIN EN 60228 Cl. 5 and 6
  • Easy-Entry Insulation for splice-free cable entry
  • Alternative color codings available

Insulated crimped cable lugs

Insulated crimped cable lugs

0,1 – 6 mm²

  • For fine and superfine stranded conductors, e.g. according to DIN EN 60228 Cl. 5 and 6
  • Nach DIN 46237

Additional Tools

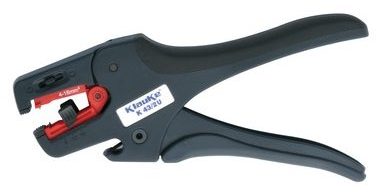

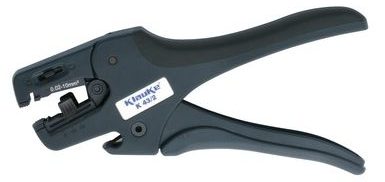

K43/2V / K43/2U

Automatic wire stripper
K43/2V: 0,1 – 4 mm² / K43/2U: 4 – 16 mm²

  • Self-setting cutting and stripping tool for application-specific solid and flexible cables
  • No loss of individual strands – conductor inserts into the core sleeve more easily

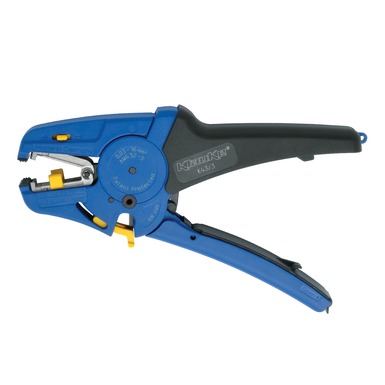

k43 wire stripperk432 wire stripper K43/3

Wire stripper with stepless stripping range 0,03 – 16 mm²

  • First wire stripper with stepless stripping range 0.03 – 16 mm²
  • Ideal for damage-free stripping of solid and fine stranded conductors with PVC
k43 3 wire stripper

LS 50 FLEX

Battery powered hydraulic punching tool

  • Fast and clean work is guaranteed with the LS50FLEX
  • Enjoy a high degree of flexibility with the rotating head
Klauke LS 50 FLEX Speed Punch™

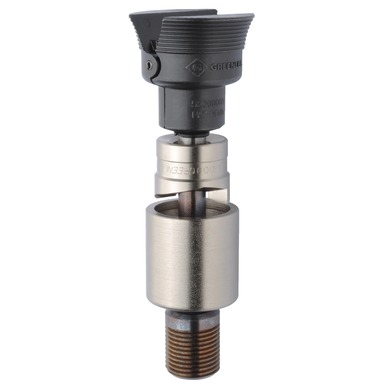

Rapid Hole punching system

  • Innovative threadless punch profile
  • Easy and quick handling as no screwing or unscrewing of the counter nut is required
Klauke Speed Punch

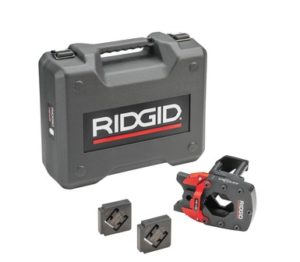

Strutslayr Strut Channel CutterSTRUTSLAYR™

Strut Shear Head

  • Increased Efficiency – Clean, consistent cuts in 5 seconds or less
  • Safe Operation – No grinding or sawing sparks
  • Compatible with RIDGID 32kN press tools
STRUTSLAYR The Strongest Most Powerful Strut Channel Cutter

CABLE TOOLS

Should you require technical assistance to select the correct cable crimping or cable cutting tools please contact us.

Thorne & Derrick are Specialist Distributors of cable tools to enable the preparation of all LV MV HV cables prior to the installation of Joints, Terminations & Connectors – this includes Klauke, Cembre, Alroc and Boddingtons cable jointing tools for removal of cable sheath, screen and insulation on 11/33kV (MV) and 66kV/132kV (HV) power cables.

Cable Crimping Cable Cutting Tools

View the complete range of Cable Crimping & Cable Cutting Tools
