NEXANS EXPERT TOOL KIT

HV Cable Jointers Tool Kit

Nexans Power Accessories mission is to provide unique innovative cable jointing and accessories solutions that support the world’s electrification and environmental challenges – the Nexans Expert Tool Kit is no exception.

As specialists in the field, Nexans understand the cable preparation and cable fixing solutions that are required by jointers and engineers. As such, we have combined complementary tools into one kit – Nexans Expert Toolkit – allowing professionals to have all the expert tools they need in one place.

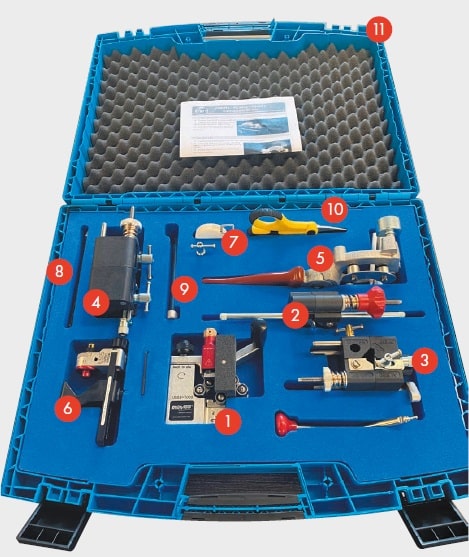

Jointer KIT Contents

Supplier		Part No	Tool Description
1	Ripley	US02-7000	Semi-con Shaving Tool
2	Alroc	LHA-60	Chamfering Tool
3	Alroc	BRMRD1E	Insulation Removal Tool
4	Alroc	LH2	Large Insulation Removal Tool
5	Alroc	PG4HTA3033	Outer Sheath Removal Tool
6	Ripley	US15	Large Format Cable Slitter
7	Alroc	MRA	Cable Measure Tape
8	Nexans	n/a	Pencil
9	Nexans	n/a	Ruler
10	Ripley	KS2	Scissors
11	Alroc	n/a	Case with Foam Cut-outs

---

---

Spotlight

Below is a closer look at the Kit List contents of the Nexans Expert Tool Kit.

US02-7000 Semicon Shaver & Stripping Tool by Ripley quickly and easily removes bonded semi-con from MV & HV power cables without the requirement for lubrication. The US02 tool provides an exceptionally smooth finish and does not require lubricating grease as the integral wheels provide a sustained motion during the cable preparation process. More about Ripley US02-7000

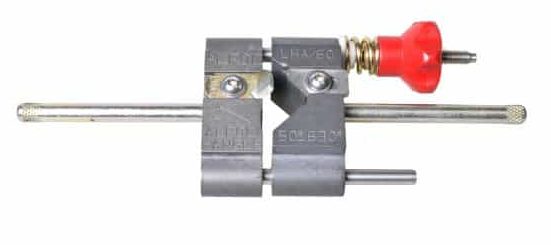

	LHA/60 cable jointing tools manufactured by Alroc are used by MV-HV jointers to remove the insulation to prepare the cable ready for the installation of joints, terminations or connectors. The Alroc LHA-60 enables the user to realise a chamfer of 30° at the extremity of the insulation of MV cables. More about Alroc LHA-60
BRMRD1E cable jointing tools manufactured by Alroc are used by MV-HV jointers to remove the XLPE insulation to prepare the cable ready for the installation of cable joints, terminations or connectors. The BRMRD1E enables the user to set the length and remove the insulation with a straight and neat cut on MV cables. More about Alroc BRMRD1E
	LH2 cable jointing tools manufactured by Alroc are used by MV-HV jointers to remove the insulation to prepare the cable ready for the installation of joints, terminations or connectors. The LH2 enables ruler to set the length of insulation to be removed and back-iron to set the pitch of the tool making easy to rotate the tool. More about Alroc LH2

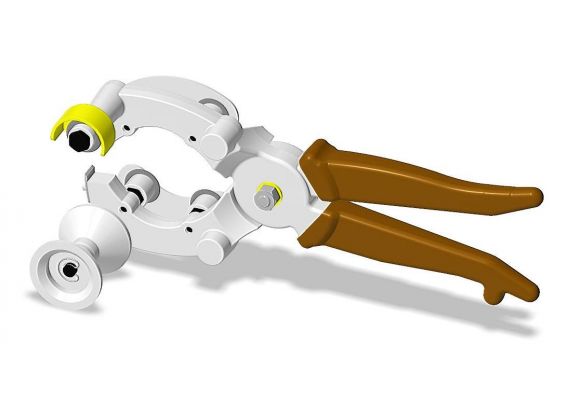

PG4 HTA cable tools manufactured by Alroc are used by MV-HV jointers to remove the outer sheath to prepare the cable ready for the installation of joints, terminations or connectors.The PG4 HTA enables the user to make a circular and longitudinal cut in order to remove cable’s outer sheath. More about Alroc PG4HTA3033

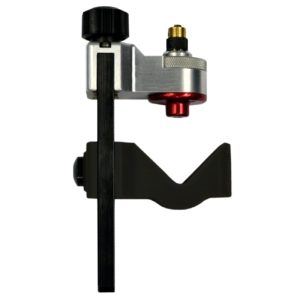

	US15 Cable Sheath Jacket Stripping Tool by Ripley provides fast, safe, and precise jacket removal from both hard and soft insulated cables without damaging the underlying layers on LV MV HV (Low | Medium | High Voltage Cables). The US15 tool is a versatile medium duty slitting tool, used primarily to assist in the removal of outer sheathing and primary insulation on lower voltage industrial power cables. More about Ripley US15

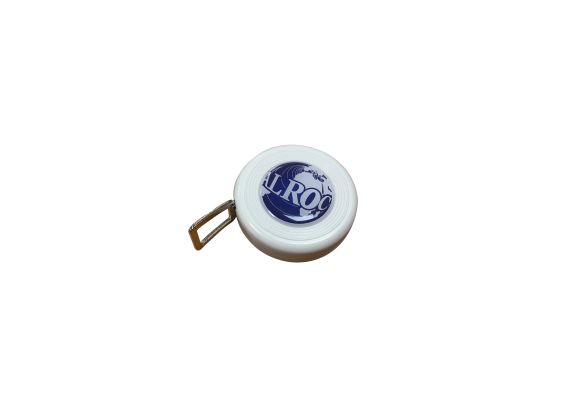

The MRA meter is used to measure the diameter of the cables according to its circumference and the stripping lengths to be performed and is a useful part of the Nexans Expert Tool Kit.

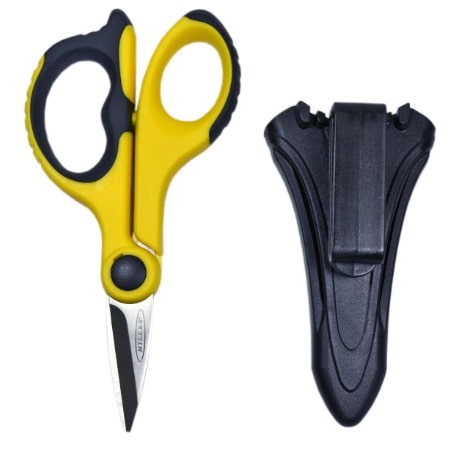

	6″ Fiber Optic Kevlar® Scissors. Ergonomic, comfort grip shears designed to cut through tough Kevlar® strength fibers. Micro-serrated stainless steel blades grip fibers, reducing slippage and producing clean cuts every time. Optional molded pouch with belt loop keeps the tool safely on hand

Also as well as the Nexans Expert Tool Kit Thorne & Derrick stock and supply a range of MV-HV Cable Joints, Terminations & Connectors suitable for connecting, repairing and extending 11kV and 33kV high voltage power cable circuits.

Thorne & Derrick stock and distribute the full range of Medium Voltage Cable Accessories manufactured by Nexans in heat shrink, cold applied slip-on and EPDM rubber technology – this includes MONO Terminations, JTS Joints and Euromold Connectors up to 33kV.

Contact our trained team of Technical Sales Engineer for competitive quotations and delivery from stock.
