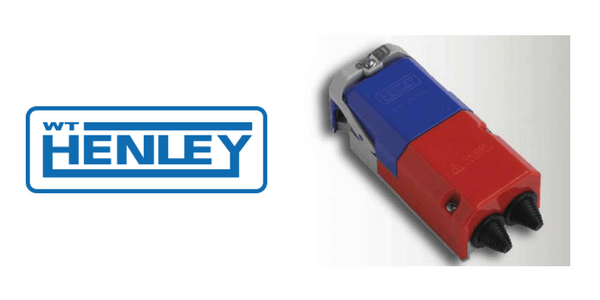

WT Henley single pole/double pole street lighting cut out 25A for single phase supplies is designed to fit the smallest street lighting columns and posts with versatility and ease of installation in mind.

The street lighting cut outs are robust, lightweight and moulded from a high grade thermoplastic with an option for a single or double pole swinging action.

Each unit is designed with a drip proof hood and each cut out is able to accept tag type fuse-links (LST) and are supplied complete with fixing screws and cable entry bushes.

Street Lighting Cut Outs 25A Single Phase

Street Lighting Cut Outs 25A Single Phase

Street Lighting Cut Outs 25A Single Phase

Features & Benefits

  • Cut-out compliant with BS7654 : 1997
  • Zero force lever release system for safe fuse and carrier removal
  • Single phase SNE or CNE cut-out versions
  • Slim line design for limited access street lighting columns and posts
  • Accepts up to 25sqmm cable conductors for cable terminating
  • Accepts tag type fuse links to BS88
  • Suitable for SWA armoured cables when used with armour bond kit
  • Loop in, loop out kit for 3 phase cables option
  • All the Street Lighting Cutouts are designed to meet the requirements of BS 7654:2010

Street Lighting Cut Outs 25A Single Phase

Product Specification

WT Henley Street Lighting Cutout Part Number  Description
54715-18 SNE Single Pole
54715-22 CNE Double Pole
54715-12 CNE Single Pole
54718-15 Armour Bond kit
54718-20 Loop in connector
54718-25 Terminal Shroud
