Remote Racking Systems For LV MV HV Circuit Breakers & Switchgear

Remote Racking Systems For LV MV HV Power Systems

Remote Racking Systems

Electrical Safety Protection for MV HV Switchgear & Circuit Breakers

CBS ArcSafe

CBS ArcSafe remote racking systems enable service personnel to stay outside the arc flash protection boundary while racking low, medium and high voltage draw-out circuit breakers, reducing the need for a full-body arc flash suit. These systems promote compliance with NFPA 70E by offering a safer way to operate circuit breakers, effectively safeguarding personnel from arc flash risks; typically power system voltages include 3.3kV, 6.6kV, 11kV, 25kV and 33kV medium and high voltage switchgear equipment.

CBS ArcSafe provide bespoke electrical safety equipment to prevent arc flash injuries to personnel improving operator electrical safety where Authorised Personnel (AP’s) and Senior Authorised Personnel (SAP’s) and undertaking maintenance tasks to ensure construction and maintenance on high voltage electrical systems, typically at 33kV.

CBS ArcSafe’s universal remote circuit breaker racking devices are compatible with a broad range of low, medium and high (LV MV HV) voltage circuit breakers from various manufacturers.

The distinctive design of each rotary remote racking system, featuring specially engineered drive shafts and couplings, allows it to support numerous MV HV Circuit Breaker types that utilize a jack screw rotary mechanism for insertion and extraction.

These remote racking devices are suitable for use with draw out type air, gas insulated SF6, and vacuum circuit breakers, regardless of whether they have a horizontal or vertical racking mechanism.

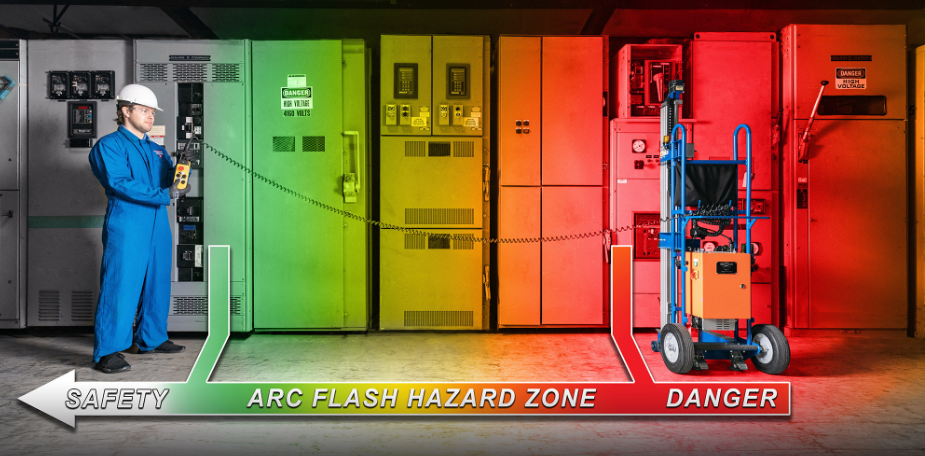

Arc Flash Boundary & Electrical Safety on Medium & High Voltage Electrical Equipment, Circuit Breakers & Switchgear

The arc flash boundary around LV MV HV Switchgear is the approach limit from an arc source at which incident energy equals 1.2 cal/cm2.  Remote and integral remote racking capability for MV & HV switchgear is becoming a common requirement to allow operators to be outside of the arc flash boundary for these operations. Understanding the differences between solutions is important for creating maintenance, operating plans and electrical safety protocols.

Remote Racking - Circuit Breakers MV HV 11kV 33kV

Universal Rotary Remote Racking System

CBS ArcSafe RRS-1

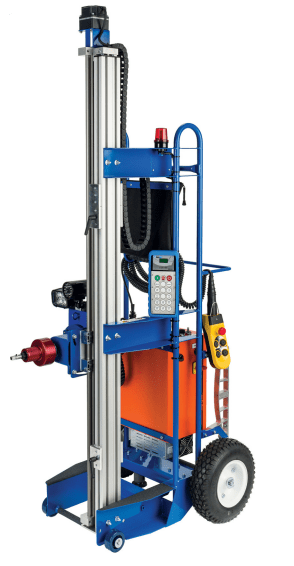

Remote Racking System for Rotary Circuit Breakers RRS-1The CBS ArcSafe RRS-1 is a versatile remote racking system designed to safely insert or remove low and medium voltage draw-out rotary circuit breakers, allowing the operator to remain outside the arc flash boundary.

This system is compatible with circuit breakers that use a jack screw mechanism for insertion and removal.

  • WEIGHT . . . 200 lbs.
  • BATTERY LIFE . . . >50 operations*
  • SYSTEM VOLTAGE . . . 24 V DC
  • CHARGER VOLTAGE . . . 120 ±10% V AC, 47-63 Hz†
  • MAXIMUM AC CURRENT . . . 12.2 A
  • DRIVE MOTOR POWER . . . 250 W
  • DRIVE ASSEMBLY SPEED . . . 80 RPM
  • CHARGE TIME . . . Under 60 minutes
  • DIMENSIONS . . . 74″ H x 26″ W x 38.1″ D
  • OPERATING DISTANCE . . . 35 feet‡













Lightweight Rotary Remote Racking System

CBS Arc Safe RRS-1 LT

Remote Racking System - CBS Arc Safe RRS-1 LTThe CBS ArcSafe RRS-1 LT is a lightweight and compact counterpart to the industry-leading RRS-1 universal rotary remote circuit breaker racking system.

The RRS-1 LT is designed specifically for applications and environments where a weight and/or size constraint may limit the use of the RRS-1.

  • WEIGHT . . . 200 lbs.
  • BATTERY LIFE . . . >50 operations*
  • SYSTEM VOLTAGE . . . 24 V DC
  • INPUT VOLTAGE . . . 120 ±10% V AC, 47-63 Hz†
  • MAXIMUM AC CURRENT . . . 12.2 A
  • DRIVE MOTOR POWER . . . 250 W
  • DRIVE ASSEMBLY SPEED . . . Variable: 60/80 RPM
  • CHARGE TIME . . . Approx. 6 hours
  • DIMENSIONS . . . 74″ H x 26″ W x 38.1″ D
  • OPERATING DISTANCE . . . 35 ft. wired; 300 ft. wireless‡

















Dual-Mode Rotary Remote Racking System

CBS Arc Safe RRS-4

Remote Racking System - CBS Arc Safe RRS-4The CBS ArcSafe RRS-4 remote circuit breaker racking device boasts many of the same structural and mechanical components as the CBS ArcSafe RRS-1 unit, which make it the most portable, easily adjustable, and user friendly Remote Racking System in the industry today.

  • WEIGHT . . . 200 lbs.
  • BATTERY LIFE . . . >50 operations*
  • SYSTEM VOLTAGE . . . 24 V DC
  • INPUT VOLTAGE . . . 120 ±10% V AC, 47-63 Hz†
  • MAXIMUM AC CURRENT . . . 12.2 A
  • DRIVE MOTOR POWER . . . 250 W
  • DRIVE ASSEMBLY SPEED . . . Variable: 60/80 RPM
  • CHARGE TIME . . . Approx. 6 hours
  • DIMENSIONS . . . 74″ H x 26″ W x 38.1″ D
  • OPERATING DISTANCE . . . 35 ft. wired; 300 ft. wireless‡

















Worker Safety for Authorised Personnel Racking In & Racking Out Circuit Breakers at Medium & High Voltage | 33kV

Primary Benefits of the CBS ArcSafe Remote Racking Systems

  • Remote operation places operator outside the arc-flash protection boundary
  • Compatible with low, medium-voltage and high-voltage circuit breakers produced by all major switchgear manufacturers
  • Use with horizontal and vertical types of air, SF6, and vacuum circuit breakers
  • Height and angle of the drive is easily adjusted
  • Quick release drive shafts & couplings simplify setup
  • Redundant over-racking protection is provided
  • Seamless transfer AC/DC power
  • Hand-truck design provides easy mobility
  • Aid compliance with NFPA 70E relative to protecting personnel by using external circuit breaker rack-out devices

Remote racking in medium voltage 33kV power systems allows operators to rack (Connect or Disconnect) circuit breakers from a safe distance, minimizing the risk of arc flash injuries – this is achieved using specialized remote racking devices (RRDs) or systems. These devices enable operation of the circuit breaker without the operator being in front of the MV HV switchgear.

Compatible with all Medium & High Voltage Switchgear manufacturers, including:

  • ABB
  • AEG
  • Allis-Chalmers
  • Alstom
  • Areva
  • Asea
  • BBC
  • Controlled Power
  • Cutler-Hammer
  • Eaton
  • Federal Pacific Electric
  • Federal Pioneer
  • Fuji
  • GEC
  • General Electric
  • Hyundai
  • ITE
  • McGraw-Edison
  • Merlin Gerin
  • Mitsubishi
  • Powell
  • Reyrolle
  • Schneider Electric
  • Siemens
  • Siemens-Allis
  • Square D
  • Toshiba
  • Westinghouse
Medium & High Voltage Power Cable Accessories & Electrical Equipment

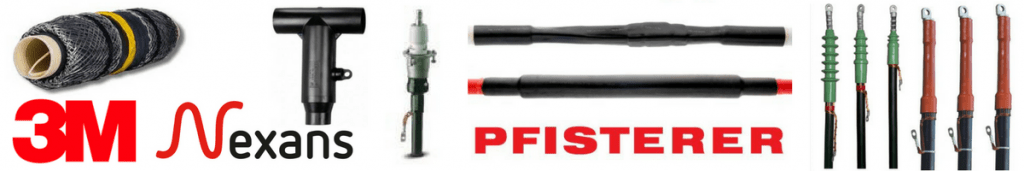

Thorne & Derrick distribute the most extensive range of MV HV Medium & High Voltage Cable Joints, Terminations & Connectors from manufacturers including 3M, Prysmian, Nexans Euromold, Elastimold, Pfisterer CONNEX & SEANEX and Shrink Polymer Systems.
