Cable Joint - Fire Resistant Zero Halogen

Zero halogen cable joints with enhanced fire resistant version are specified and installed to joint single and multi-core cables in onshore, offshore and underground rail applications – suitable for power, control and instrumentation cables (multicore / multipair), 600/1000 volts.

Zero Halogen Cable Joints

With fire resistant version

    • Fire tested and compliant with London Underground standards 2-0100-002 or the fire safety of materials and E4156 cable standard
    • Slim profile and unlimited shelf life complete with range taking mechanical shearbolt connectors
    • Full range of cable joints available for all cable types including power and multicore cables
    • Designed for use where low smoke fume, zero halogen and fire resistance is essential
    • Designed and tested in leading UK fire testing laboratory in accordance with the procedures specified in IEC 60331-21:1999
    • Test report available
    • Cable joints available for all types of LV MV HV cables

Fire Resistant Cable Joints

Fire resistant cables are specified to provide uninterrupted electricity supply to power, control and instrumentation cables to vital circuits required to operate in fire conditions – applications include underground, onshore and offshore fire alarm systems, voice alarm systems and emergency lighting systems.

The standard zero halogen heat shrink cable joints can be enhanced to incorporate a flexible outer fire barrier tube and Mica tape protection to the cable cores to provide fire, heat and flame barrier – joints can operate at 1800°F (982°C) and are able to withstand short term exposure up to 3000°F (1650°C).

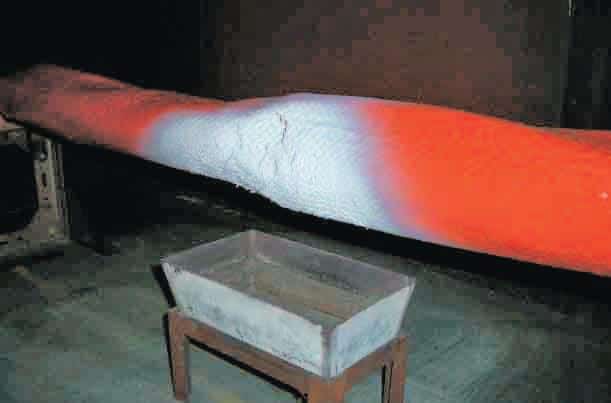

Fire Resistant Cables

London Underground Approved

Developed specifically for London Underground and for use within rail tunnels and above surface, the low smoke zero halogen cable joint incorporates flame retardant, non halogen polyolefin heat shrink tubing with a meltable inner liner providing excellent flame retardant properties with reduced acid gas emission and smoke generation.

A complete range of multicore and multipair cable joints are available with LU approval for rail power, signals and telecoms cables.

London Underground Cable Joints

London Underground Cable Joints

Marine & Offshore Cables IEC 60331-1:2009

Fire resistant cable joints meet the performance and specification requirements for low voltage power and control cables to maintain circuit integrity when subject to fire and mechanical shock under specified conditions.

Fire Resistant cable Joints to Suit Single or 2/3/4 Core XLPE / EPR Cables

SPS Part Number Fire Resistant Cable Joint Range Voltage
SPA NHF 1.5-2.5 1.5-2.5sqmm 600/1000V
SPA NHF 4-6 4-6sqmm 600/1000V
SPA NHF 10-16 10-16sqmm 600/1000V
SPA NHF 25-50 25-50sqmm 600/1000V
SPA NHF 70-95 70-95sqmm 600/1000V
SPA NHF 120-185 120-185sqmm 600/1000V
SPA NHF 240-300 240-300sqmm 600/1000V
SPA NHF 400-630 400-630sqmm 600/1000V
SPA NHF 800-1000 800-1000sqmm 600/1000V
For non armoured joints, omit letter (A) from the part number. Add last digit to part number to indicate the number of cores

Fire Resistant Cable Joints to Suit Multicore / Multipair XLPE / EPR Cables

SPS Part Number Fire Resistant Cable Joint Range Voltage
SPA NHF 1.5-2.5 5 core 1.5-2.5sqmm 600/1000V
SPA NHF 1.5-2.5 7 core 1.5-2.5sqmm 600/1000V
SPA NHF 1.5-2.5 12 core 1.5-2.5sqmm 600/1000V
SPA NHF 1.5-2.5 19 core 1.5-2.5sqmm 600/1000V
SPA NHF 1.5-2.5 27 core 1.5-2.5sqmm 600/1000V
SPA NHF 1.5-2.5 37 core 1.5-2.5sqmm 600/1000V
SPA NHF 1.5-2.5 48 core 1.5-2.5sqmm 600/1000V
SPA NHF 1.5-2.5 61 core 1.5-2.5sqmm 600/1000V
For non-armoured cable joints, omit letter (A) from the part number. Add letter “PR” to end of part number to indicate multipair cables.

Fire resistant cable joints ensure continued operation of emergency and essential building service systems required to operate in the event of fire in rail tunnels, offshore, public building and construction industry.
Zero Halogen Fire Resistant Cable Joints

➡ View the complete range of Zero Halogen Fire Resistant Cable Joints.
