Plugs & Sockets For Industrial & Hazardous Areas (20A-400A 400°C)

Industrial & Hazardous Area Plugs & Sockets

Industrial & Hazardous Area Plugs & Sockets | Stockists & Suppliers

Plugs & Sockets | Decontactors

Thorne & Derrick distribute the full range of plugs and sockets manufactured by Marechal for the distribution of LV power in both industrial and hazardous areas – the Decontactors can safely be disconnected under a full electrical load for rapid change out of equipment or planned maintenance during plant shutdowns.

Marechal plugs and sockets are used in various industries globally including mining, oil and gas, data centres, renewable energy, offshore, food and drink, shipping and petrochemical as well as other areas that require a guaranteed safe electrical connection.

MARECHAL

Marechal Distributors | Stocked & Supplied by Thorne & Derrick UK


Marechal Decontactor Technology

A Decontactor is a plug and socket outlet system with an integrated power switch permitting safe connection and disconnection of electrical equipment with “Plug and Play” simplicity and includes a integral load break switch which has many benefits such as:

  • Safe electrical disconnections for Low Voltage Power Distribution
  • High temperature, high current and hazardous area certified plugs
  • Automatically watertight plug/socket assembly
  • Cost reduction due to dual-voltage systems
  • Robust and reliable Decontactor alternative to conventional plugs and sockets
  • Electrical connection and contact quality

DECONTACTOR= SWITCH + SOCKET OUTLET

Did you know? The Decontactor is the only electrical connector that combines a connector with a switch. Marechal’s unique technology allows users to connect and disconnect electrical power supply from 5Amps to 250Amps on load. The below video shows that Marechal plugs combine electrical safety and reliability for power control and distribution in industrial and hazardous areas.


Below is the full product offering of Industrial & Hazardous Areas Plugs & Sockets ranging from 20 Amps to 400 Amps.

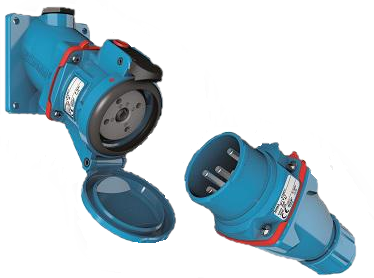

DSN pLUGS & sOCKETS (20-63 Amps)

The Marechal range includes an integrated switch, high compact and waterproof plugs and socket-outlets covering all needs of industrial electrical connections. The DSN ranges from 20Amps to 63Amps and offers many options for electrical installation such as boxes, sleeves and handles. The DSN range of Decontactors from Marechal is rated IP66/IP67/IP69 (Ingress Protection).

Marechal Part Number



Marechal DSN1 Plug & Socket



DSN1

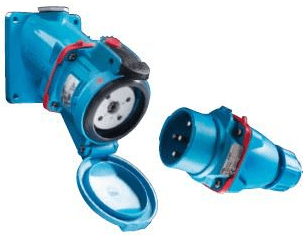

Marechal DSN3 Plug & Socket

DSN3

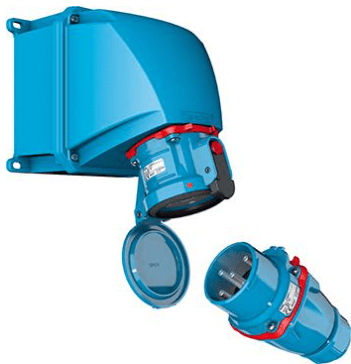

Marechal DSN6 Plug & Socket

DSN6

Rated Current (with wiring according to standard) 20 Amps 32 Amps 63 Amps
Maximum Voltage 500 Volts 690 Volts 1000 Volts
IP Protection Lid Closed IP66/IP67/IP69 IP66/IP67/IP69 IP66/IP67/IP69
IP Protection Connected Plug IP66/IP67/IP69 IP66/IP67/IP69 IP66/IP67/IP69
Shock Resistance IK08 IK08 IK08
Ambient Temperature -40º C to + 60º C -40º C to + 60º C -40ºC to + 60ºC
Flexible Wiring (Min-Max) 1sqmm – 2.5sqmm 2.5sqmm – 6sqmm 6sqmm – 16sqmm
Stranded Wiring (Min-Max)  1.5sqmm – 4sqmm 2.5sqmm – 10sqmm 10sqmm – 25sqmm
Other Wiring On Request On Request On Request
Keying Positions 24 24 24
Marechal DSN Specification Download

DS PLUGS (30-400A)

The DS Electrical plugs and socket-outlets are available in a range of current ratings from 30 Amps to 400 Amps – the Decontactors manufactured by Marechal have an integrated switch and both sockets and inlets are available in metal versions from 90Amps rating and offers numerous options (including boxes, handles and sleeves).

Marechal Part Number



Marechal DS1 Plug & Socket

DS1

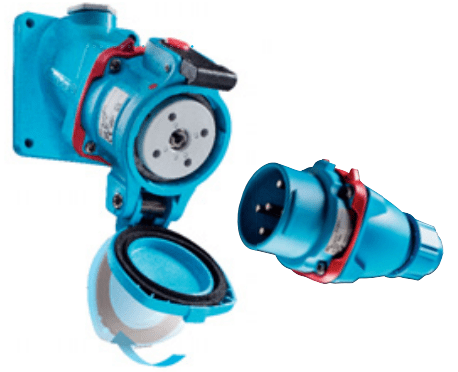

Marechal DS3 Plug & SocketDS3

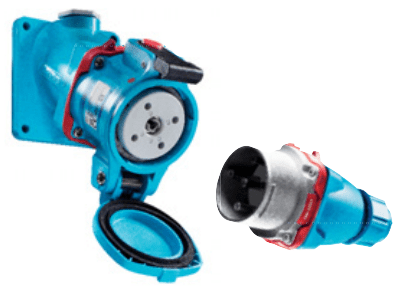

Marechal DS6 Plug & Socket

DS6

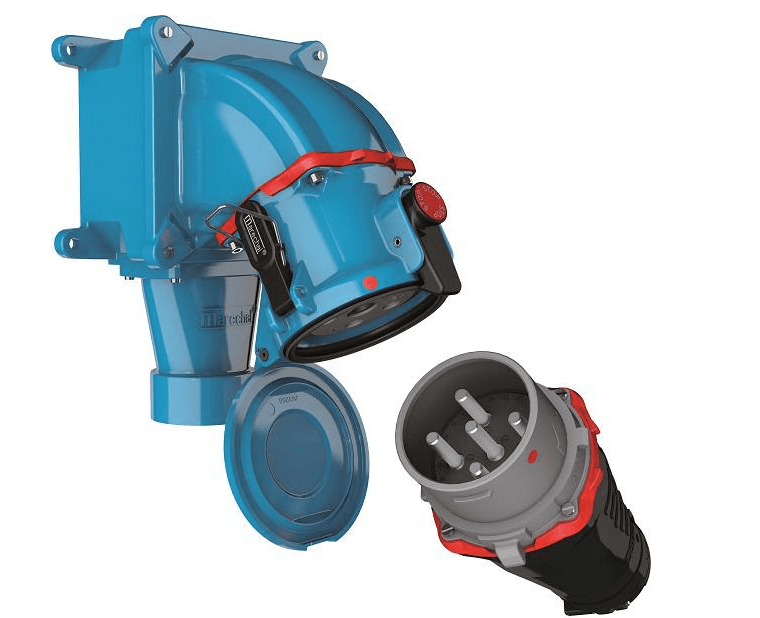

Marechal DS2 Plug & Socket

DS2





Marechal DS4 Plug & Socket

DS4





Marechal DS9 Plug & Socket

DS9 (GRP/METAL)

Rated Current (with wiring according to standard) 30 Amps 50 Amps 90 Amps 250 Amps 400 Amps 150 Amps (GRP / Metal)
Maximum Voltage 690 Volts 1000 Volts 1000 Volts 1000 Volts 1000 Volts 1000/1500 Volts
IP Protection Lid Closed IP55 IP55 IP55 IP66/IP67 IP54 IP66/67 (GRP) IP55 (Metal)
IP Protection Connected Plug IP54 IP54 IP54 IP66/IP67 IP66/IP67 IP66/67 (GRP) IP54 (Metal)
Shock Resistance IK09 IK08 IK09 IK10 IK09 IK08 (GRP) IK09 (Metal)
Ambient Temperature – 40ºC to + 60ºC -40°C to +60°C -40°C to +60°C -40°C to +60°C -40°C to +60°C – 40°C to + 60°C
Flexible Wiring (Min-Max) 2.5sqmm – 6sqmm 6sqmm – 16sqmm 10sqmm – 25sqmm 70sqmm – 95sqmm 95sqmm – 150sqmm 25sqmm – 70sqmm
Stranded Wiring (Min-Max) 2.5sqmm – 10sqmm 10sqmm – 25sqmm 10sqmm – 35sqmm 70sqmm – 120sqmm 95sqmm – 185sqmm 25sqmm – 95sqmm
Other Wiring On Request On Request On Request On Request Pilot Contact – 2 On Request
Keying Positions 24 24 24 12 12 24
Marechal DS1/DS3 Specification Download
Marechal DS2/DS4 Specification Download
Marechal DS6/DS9 Specification Download

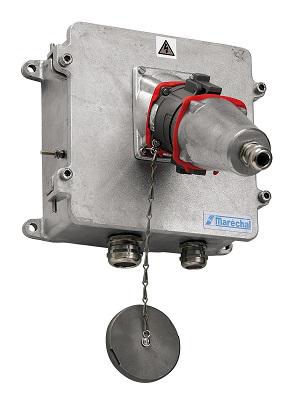

DSHT Plugs (High Temperature 400°C)

The DSHT industrial power plugs are suitable for environments where the operating temperature can reach up to 400°C – the Decontactors from Marechal ensure excellent electrical connection quality and are very robust and can withstand corrosion in industrial applications.

Marechal Part Number Marechal DSHT High Temperature Plug DSHT
Rated Current (with wiring according to standard) 125 Amps
Maximum Voltage 440 Volts
IP Protection Lid Closed IP45
IP Protection Connected Plug IP44
Shock Resistance IK09
Ambient Temperature -40ºC to +60ºC
Flexible Wiring (Min-Max) 10-35sqmm
Stranded Wiring (Min-Max) 10-50sqmm
Other Wiring On Request
Keying Positions 24
Marechal DSHT Specification Download

DXN Plugs & sOCKETS (20-63A, IP66/IP67) – ATEX

ATEX Certified Plugs & Sockets | Marechal Decontactors

Decontactors

These Ex Decontactor plugs and socket-outlets come with a integrated switch and are designed and certified for use in hazardous areas – the Decontactors are certified to “de” protection mode and comply with the ATEX 2014/34/EU Directive and IECEx standards.

The Marechal DXN range of Decontactors can be used in hazardous area Zones 1 & 2 (Flammable Gas) and Zones 21 & 22 (Combustible Dust) – these plugs are supported by a range of ancillary components including female socket-outlets, male inlets, wall boxes and adapter sleeves.



Marechal Part Number

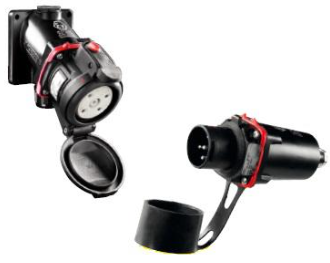

Marechal DXN1 Plug & Socket

DXN 1



Marechal DXN3 Plug & Socket

DXN 3

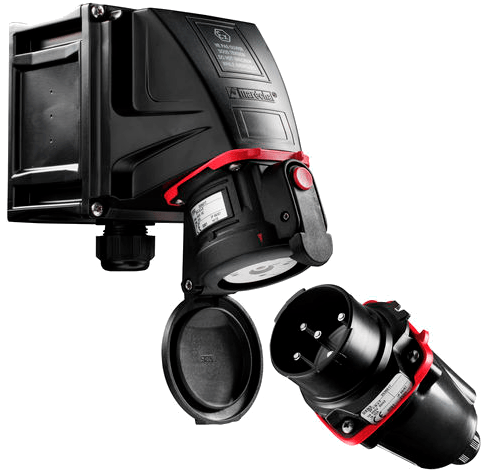

Marechal DXN6 Plug & Socket

DXN 6

Rated Current (with wiring according to standard) 20 Amps 32 Amps 63 Amps
Maximum Voltage 550 Volts 750 Volts 750 Volts
IP Protection Lid Closed IP66 IP66/7 IP66/7
IP Protection Connected Plug IP66/IP67 IP66/IP67 IP66/7
Shock Resistance IK09 IK09 IK09
Ambient Temperature -40°C +60°C -40°C +60°C -40°C +60°C
Flexible Wiring (Min-Max) 1-4sqmm 5-10sqmm 6-16sqmm
Stranded Wiring (Min-Max) 1-5.6sqmm 2,5-16sqmm 6-25sqmm
Other Wiring On Request On Request On Request
Keying Positions 24 24 24
T Class (Temperature Rating)  T5 (T90°C) / T6 (T70°C) T5 (T77°C) / T6 (T57°C) T4 (T107°C) / T5 (T87°C)
Hazardous Area Certification & Approvals | ATEX & IECEx EX II 2 G D | Ex de eb IIC T* Gb (T4,T5 & T6 Options)
Marechal DXN1 Download
Marechal DXN6 Download
Marechal DXN3 Download

DX Plugs & sOCKETS (20-200a mETAL) – ATEX

ATEX Certified Plugs & Sockets | Marechal Decontactors

Decontactors

The DX range of plugs and sockets are designed and certified for used in hazardous areas, with “de” protection mode – the Decontactors comply with the ATEX 2014/34/EU Directive and IECEx standards.for use in hazardous area  Zones 1 & 2 (Flammable Gas) and Zones 21 & 22 (Combustible Dust).

The DX plug and socket outlet products come with a integrated switch designed for hazardous areas.

The Marechal DX range of Decontactors can be used in hazardous area Zones 1 & 2 (Flammable Gas) and Zones 21 & 22 (Combustible Dust) – these plugs are supported by a range of ancillary components including female socket-outlets, male inlets, wall boxes and adapter sleeves.

 Marechal Part Number DX1 Marechal Electrical Connectors | Plugs & Sockets
DX1
DX3 Marechal Electrical Connectors | Plugs & Sockets

DX3

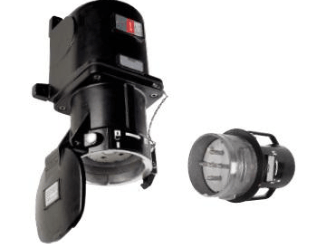

DX6 Marechal Electrical Connectors | Plugs & Sockets

DX6

DX2 Marechal Electrical Connectors | Plugs & Sockets

DX2



DX9 Marechal Electrical Connectors | Plugs & Sockets

DX9

Rated Current (with wiring according to standard) 20 Amps 32 Amps 63 Amps 200 Amps 125 Amps
Maximum Voltage 750 Volts 750 Volts 750 Volts 750 Volts 750 Volts
IP Protection Lid Closed IP65 IP65 IP65 IP65 IP65
Zones 1, 2, 21, 22 1, 2, 21, 22 1, 2, 21, 22 1, 2, 21, 22 1, 2, 21, 22
Shock Resistance IK10 IK10 IK10 IK10 IK10
Ambient Temperature -25° + 60°C -25° + 60°C -40°C + 60°C -40°C + 60°C -40°C + 60°C
Flexible Wiring (Min-Max) 2,5-10sqmm 2,5-10sqmm 16-35sqmm 50sqmm 35-50sqmm
Stranded Wiring (Min-Max) 2,5-10sqmm 2,5-10sqmm 16-50sqmm 70sqmm 50-70sqmm
T Class (Temperature Rating)  T5 (T84°C) / T6 (T74°C) T5 (T84°C) / T6 (T74°C) T5 (T90°C) / T6 (T80°C) T3 (T91°C) T5 (T90°C) / T6 (T80°C)
Hazardous Area Certification & Approvals | ATEX & IECEx EX II 2 G D | Ex de eb IIC tD A21 (T3,T5 & T6 Options)
Marechal DX2 Datasheet Download
Marechal DX3 Datasheet Download
Marechal DX6 Datasheet Download
Marechal DX9 Datasheet Download

dxa plugs & sOCKETs (20a – metal) – ATEX

ATEX Certified Plugs & Sockets | Marechal Decontactors

Decontactors

The DXA range of metal and waterproof Ex Decontactor plug and socket outlet IP66/IP67 comes with a integrated switch which is designed and certified for use in hazardous areas with “de” protection mode (ATEX) – they are suitable in Zones 1 & 2 (Flammable Gas) and Zones 21 & 22 (Combustible Dust).

The range of Marechal Decontactors are certified according to IECEx standards.

The Marechal DXA range of Decontactors can be used in hazardous area Zones 1 & 2 (Flammable Gas) and Zones 21 & 22 (Combustible Dust) – these plugs are supported by a range of ancillary components including female socket-outlets, male inlets, wall boxes and adapter sleeves.

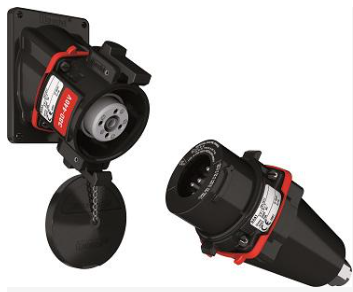

Marechal Part Number Marechal DXA Plug & Socket

DXA 1

Rated Current (with wiring according to standard) 20 Amps
Maximum Voltage 550 Volts
IP Protection Lid Closed IP66/IP67
IP Protection Connected Plug IP66/IP67
Shock Resistance IK10
Ambient Temperature -55ºC to +60ºC
Flexible Wiring (Min-Max) 1sqmm – 4sqmm
Stranded Wiring (Min-Max) 1,5sqmm – 6sqmm
Keying Positions 24
Protection Mode db eb, tb
ATEX Zones 1 & 2, 21 & 22
T Class (Temperature Rating)  T6 (T68°C) / T5 (T88°C)
Hazardous Area Certification & Approvals | ATEX & IECEx Ex II 2 G D |Ex db eb IIC T* Gb (T5 & T6 Options)
Marechal DXA1 Download

Marechal

To view the full range of Marechal Plugs, Sockets & Decontactors distributed by Thorne & Derrick please see the table below or contact us.

Industrial Multicontact Plugs & Sockets Industrial Single Pole Connectors
Multicontact Plugs & Sockets For Industrial & Hazardous Areas (7-37 Contacts up to 50A) Single Pole Connectors For Industrial & Hazardous Areas (680A/ 1000V)
Hazardous Area Multicontact Plugs & Sockets Hazardous Area Single Pole Connector
INDUSTRIAL PLUG & SOCKET-OUTLET 660 A
High Voltage Plugs, Sockets & Connectors (660A)

Marechal Plugs

Industrial Power Plugs | Decontactors (Switch+Socket Outlets) 16A to 400A | IP66 IP67 IP69 | up to 400 degrees Celsius (DSHT)
