10 Cal Arc Flash Clothing
Arc Flash Clothing Kit | ATPV 10 cal/cm² Coverall with retroreflective tapes | Class 1 Arc Flash ProtectionÂ
AFCOM10 arc flash garments offer protection from the thermal effects of short circuit electrical arcs, with an ATPV that does not exceed 10 cal/cm².
The arc flash clothing kit is designed for prolonged use throughout the day, and is recomended for operators working on or close to live electrical installations. The arc flash coveralls are also suitable for use in explosive atmospheres (ATEX).
The arc flash protection kit comprises of a high collar coverall with elasticated wait and retroreflective tapes. Garments comply to the latest standards including EN ISO 11612 and IEC 61482-2.
The 10 Cal arc flash clothing coveralls are available in sizes XS to 3XL.
Thorne & Derrick distribute a complete range of PPE to protect workers against the risk and hazards of Arc Flash – our range of Clothing & Workwear protects those working on or in the vicinity of live or potentially live electricity and power systems at LV MV HV. We hold large volumes of garments and clothing in-stock for worker protection on underground cables or overhead lines – providing electrical safety to Jointers, SAP’s, Technicians and Linemen carrying out daily Low Voltage fusing and jointing or the scheduled Medium/High switching or racking-in and racking-out of circuit breakers on medium/high voltage switchgear.
Arc Flash PPE & Switching Suits for MV HV Power Systems From UK Stocks
Arc Flash PPE Specification
The 10 cal arc flash coverall is made from flame retardant and antistatic material, composed of 20% polyester, 79% cotton and 1% antistatic fibres. The fabric contains both natural and manmade fibres, and combines the comfort of cotton with the ease of care of polyester. It offers high resistance to wear, tearing and abrasion. It also has ideal washing behaviour.
Arc Flash Clothing
Coveralls

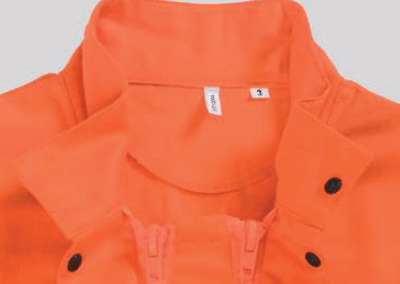

- High collar, double non metallic zip fastener with flap closed by press studs, elasticated waist, kneepad pockets, adjustable cuffs, retroreflective tapes
- 1 chest pocket, 2 waist pockets, 1 rule pocket and 1 rear pocket with flap closed by press studs
The arc flash garments offer high visibilty along with optimal protection and ease of use. Arc flash clothing is free of metal, using zipper and press studs made from a plastic material.
aRC fLASH STANDARDS
10 Cal Arc Flash Protection Kit complies to the following standards:
- EN ISO 11612
- EN ISO 11611
- IEC 61482-2
- EN 1149-5
- EN 13034
The range of arc flash protection suits and kits addresses the requirements for clothing that protects from the thermal hazards of electric arcs according to applicable international standards.
The performance of clothing to protect from electrical arcs may be qualified using two test methods, depending on the zone of influence :
IEC 61482-2 : GENERAL REQUIREMENTS
| Test Methods | |
| IEC 61481-2 Open arc methodDetermination of the ATPV rating of clothing stated in calories/cm² (American principle) |
IEC 61482-1-2 Box test methodDetermination of the protection class of the clothing depending on the level of intensity of the electrical installation, according to two classes: Class 1 (4 kA during 0,5 s at 30 cm) Class 2 (7 kA during 0.5 s at 30 cm) (European principle) |
In the USA, the national fire protection association (NFPA) uses four categories to classify the arc flash risk. The principle of categories is the method used in NFPA 70E to inform users about the protection they need while working on or near live equipment. The aim is to be protected from the risk of second-degree burns.
Arc Flash Garment Selection
| Part Number | Description | Sizes |
| AFCOM10-OR | Orange arc flash overalls class 1, ATPV 10 cal/cm² | XS – 3XL |
| AFCOM10-BL | Blue arc flash overalls class 1, ATPV 10 cal/cm² | XS – 3XL |
| AFCOM10-GR | Grey arc flash coverall class 1, ATPV 10 cal/cm² | XS – 3XL |
These high-visibility garments are available in additional colours. Contact Thorne & Derrick for more information.
Arc Flash Clothing Daily Wear Size Guide
Trousers
| XS | S | M | L | XL | XXL | 3XL | 4XL |
5XL |
||||||||||
| EU Size | 36 | 38 | 40 | 42 | 44 | 46 | 48 | 50 | 52 | 54 | 56 | 58 | 60 | 62 | 64 | 66 | 68 | 70 |
| Waist (cm) | 68 – 72 | 73 – 76 | 77 – 80Â Â | 81 – 84 | 85 – 88Â Â | 89 – 92 | 93 – 96Â Â | 97 – 100 | 101 – 104 | 105 – 108 | 109 – 112 | 113 – 116 | 117 – 120 | 121 – 124 | 125 – 128 | 129 – 132 | 133 – 136 | 137 – 140 |
Jacket / Overalls
| XS | S | M | L | XL | XXL | 3XL | 4XL |
5XL |
||||||||||
| Neck Size (cm) | 35 – 36 | 37 – 38 | 39 – 40 | 41 – 42 | 43 – 44 | 45 – 46 | 47 – 48 | 49 – 50 | 51 – 52 | |||||||||
| EU Size | 36 | 38 | 40 | 42 | 44 | 46 | 48 | 50 | 52 | 54 | 56 | 58 | 60 | 62 | 64 | 66 | 68 | 70 |
| Chest Size (cm) | 78 – 80 | 81 – 84 | 85 – 88 | 89 – 92Â Â | 93 – 96Â Â | 97 – 100 | 101 – 104 | 105 – 108 | 109 – 112 | 113 – 116 | 117 – 120 | 121 – 124 | 125 – 128 | 129 – 132 | 133 – 136 | 137 – 140 | 141 – 144 | 145 – 148 |
Arc Flash Protection | Thorne & Derrick understand how critical it is to have reliable, highest quality personal protection equipment (PPE), clothing and workwear available from stock at competitive prices – protecting utility workers against arc flash dangers posed during maintenance on underground electric cables, overhead line conductors or electrical equipment.
