Arc Flash Helmets & Visors, from the ProGARM range of Arc Rated garments and clothing are used to protect against arc flash accidents as the last line of defence. Arc Flash PPE will not prevent incidents, and it is therefore vital that a comprehensive electrical safety plan for maintenance, repair and diagnostic procedures (involving energised LV, MV or HV electrical equipment) is also implemented.

Thorne & Derrick distribute a range of arc flash helmets & visors to suit a range of requirements. Variations include hoods, visors and helmet options suitable for a wide range of industries. Contact Thorne & Derrick with your specific PPE requirements and we will be happy to help.

The ProGARM range of Flame Resistant protective garments are designed for every-day wear and protection – the highly breathable clothing ranges are designed for comfort and safety without compromising the ability of the wearer to work productively, safely and unhampered by cumbersome garments prone to overheating.

Other garments and protection products include Arc Flash Coveralls, Arc Clothing, Arc Flash Suits and Arc Flash Gloves.

The importance Of Arc Flash Protection

Arc rated clothing and electrical PPE should be worn when working on energised conductors, cables or circuits.

Over 50% of workplace accidents from low voltage switchgear are from arc related faults – they are not confined to medium/high voltage power distribution networks where even small levels of residual voltage can trigger an arc flash. Arc Flash Hazard is a subject that is undergoing increased discussion and scrutiny in today’s safety conscious environment. The intent of the standards in this area is to provide an increased level of safety for the electrical worker.

Put simply, an Arc Flash incident can cause significant injuries, and possible death without the correct procedures in place. Consequently, it is vital that the correct procedures are in place to mitigate the risks and protect against potential accidents.

➡ To find out more about real-life arc flash incidents, and how protective clothing has saved lives, read Eddie’s Arc Flash Story.

Featured Product | ProGARM 2688 Class 2 Arc Flash safety helmet comes with an integrated face shield and protects the head against injuries caused by falling objects, electric shock by preventing shock current flow through the head and also against Arc Flash and molten metal splashes.

ProGARM 2688 Arc Flash Safety Helmet

ProGARM 2688 Arc Flash Safety Helmet


Arc Flash Helmets & Visors | Product Selection

The below product guide has been designed to help with the selection process of protective garments and clothing to suit the individual requirements of your workplace – ProGARM garments, including hoods, helmets & visors, provide arc flash protection using inherently flame resistant lightweight VXS+ fabrics, potentially saving lives and preventing life changing injuries.

Light but Strong | Innovative Protection Against Arc Flash

ProGARM clothing products are manufactured from a premium VSX+ lightweight fabric with a Lifetime Seam Guarantee providing both arc flash and FR (Flame Resistant) protection with excellent durability for field use by Jointers, Linesmen, Senior Authorised Persons (SAPs and Substation Engineers working on underground cables and overhead lines.


Arc Flash Helmet 2688 | 8.4 Cal Arc Flash Protection Helmet PPE

Arc Helmet & Visor | progarm 2688

ProGARM Arc Flash Helmet 2688 provides Category 2 protection against arc flash risks and hazards up to 8.4cal/cm2 according to EN 166 and GS-ET 29.

Arc Rating | 8.4Cal ARC 2

Box Test | Class 2

EN 166  GS-ET 29 | ATPV=8.4 cal/cm²

➡ For garment material specification, fabric, design, sizing and coverall product information please go to ProGARM 2688.


ProGARM 2660

Arc Helmet & Visor | ProGarm 2660

The ProGARM 2660 Arc Flash Helmet provides Class 1 protection against arc flash risks and thermal hazards according to EN 166 and GS-ET 29 standards.

Protection Type | Arc Flash & Antistatic

Box Test | 4KA Class 1

EN 166 | GS-ET 29

➡ For garment material specification, fabric, design, sizing and helmet product information please go to ProGARM 2660.


ProGARM 2690 Arc Flash Helmet & Visor

Arc Helmet & Visor | ProGARM 2690

ProGARM Arc Flash Helmet 2690 provides Class G protection against electric shock, arc flash risks and molten metal splashes according to EN 166 and GS-ET 29.

Protection Type | Arc Flash, Antistatic, Heat & Flame

Box Test | Class 2

EN 166  GS-ET 29 | ATPV 24cal/cm²

➡ For garment material specification, fabric, design, sizing and coverall product information please go to ProGARM 2690.

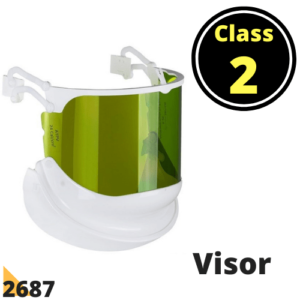

ProGARM 2687 Arc Flash Visor

Arc Visor | ProGarm 2687

The ProGARM 2687 Arc Flash Visor for use with ProGARM 2688 Safety Helmet provides Class 2 protection against arc flash risks and thermal hazards up to 8.4cal/cm² according to EN 166 and IEC 61482 standards.

Protection Type | Arc Flash, Antistatic, Heat & Flame

Box Test | Class 2

EN 166 IEC 61482 | ATPV=8.4 cal/cm²

➡ For garment material specification, fabric, design, sizing and helmet product information please go to ProGARM 2687.


ProGARM 2667 Arc Flash Visor

Arc Visor | ProGarm 2667

ProGARM 2667 Arc Flash Visor for use with ProGARM 2690 Safety Helmet provides Class 1 protection against arc flash risks and thermal hazards up to 24cal/cm² according to ANSI/ISEA Z89.1-2014, ANSI/ISEA Z87.1-2015 and ASTM F2178-12 standards.

Protection Type | Arc Flash, Antistatic, Heat & Flame

Box Test | Class 1

ASTM F2178 | ATPV=24 cal/cm² / HAF=91%

➡ For garment material specification, fabric, design, sizing and coverall product information please go to ProGARM 2667.


ProGARM 2668 Arc Flash Visor

Arc Visor | ProGarm 2668

The ProGARM 2668 Arc Flash Visor for use with ProGARM 2660 Safety Helmet provides Class 1 protection against arc flash risks and thermal hazards according to EN GS-ET 29 standards.

Protection Type | Arc Flash, Antistatic, Heat & Flame

Box Test | Class 1

GS-ET 29: 2010 | PNEN166: 2001

➡ For garment material specification, fabric, design, sizing and helmet product information please go to ProGARM 2668.

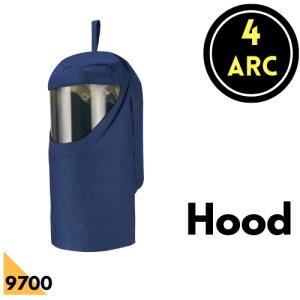

ProGARM 9700 Arc Flash Hood

Arc Hood | ProGarm 9700

The ProGARM 9700 Arc Flash Hood  provides Class 2 protection against arc flash risks and thermal hazards up to 47cal/cm² according to IEC 61482-1-1:2009 ‘Open Arc’ test method.

Arc Rating | ARC 4

Box Test | Class 2

IEC 61482-2: 2009 | ASTM F2178

➡ For garment material specification, fabric, design, sizing and hood product information please go to ProGARM 9700.


Helmets & Visors Stock | the range of garments consists of Core Products featured here – we stock, or have in production garments within these product ranges in an assortment of sizes, cal ratings and arc flash protection levels. In-Stock helmets & visors can be dispatched within 24hours from our warehouse, or for stock holding, please contact the UK sales office to discuss further. Branded gloves can be provided subject to MOQ.

Protective Helmets & Visors technical Specification

Arc FLash Helmet & Visor Part Number                                 Cal Rating                                             Category/Class

9700 Arc Flash Hood


47 Cal


Category 4


2688 Arc Flash Safety Helmet


8.4 Cal


Class 2


2687 Replacement Visor for ProGARM 2688


8.4 Cal


Class 2


2667 Replacement Visor for ProGARM 2690


24 Cal


Class 1


2660 Arc Flash Safety Helmet



Class 1


2690 Arc Flash Safety Helmet


24 Cal


Class 1


2668 Replacement Visor for ProGARM 2660



Class 1


PROGARM – DISTRIBUTORS, STOCKISTS & SUPPLIERS

Arc Flash Clothing Protection

Arc Flash Helmets & Visors | Thorne & Derrick understand how critical it is to have reliable, highest quality personal protection equipment (PPE), clothing and arc workwear available from stock at competitive prices – protecting utility workers against arc flash dangers posed during maintenance on underground electric cables, overhead line conductors or electrical equipment.

Arc Flash Clothing Protection PPE

 Arc Workwear | Jackets | Arc Flash Suits | Trousers | Sweatshirts | Helmets & Visors | Arc Flash Gloves

All ProGARM products conform to the European Directives regulating PPE and display the correct care labels to guarantee certification and traceability. Thorne & Derrick provide competitive prices and fast delivery from stock for the complete range of ProGARM arc flash protection, clothing and garments.
