25 Cal Arc Flash Clothing
Arc Flash Clothing Kit | ATPV 25 cal/cm² Jacket, Trousers and Coverall | Class 2 Arc Flash Protection
AFSIB25 arc flash garments offer protection from the thermal effects of short circuit electrical arcs, with an ATPV that does not exceed 25 cal/cm².
The arc flash clothing kit is designed for prolonged use throughout the day, and is recomended for operators working on or close to live electrical installations. AFSIB25 clothing is also suitable for use in explosive atmospheres (ATEX).

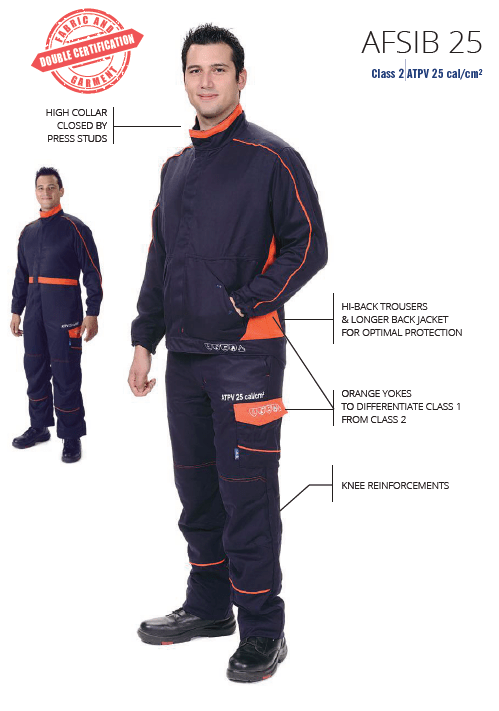

The arc flash protection kit comprises of a high collar jacket, trousers with elasticated belt and high collar coverall closed by press studs. Garments comply to the latest standards including EN ISO 11612 and IEC 61482-2.
The 25 Cal arc flash clothing coveralls are available in sizes XS to 3XL.
Thorne & Derrick distribute a complete range of PPE to protect workers against the risk and hazards of Arc Flash – our range of Clothing & Workwear protects those working on or in the vicinity of live or potentially live electricity and power systems at LV MV HV. We hold large volumes of garments and clothing in-stock for worker protection on underground cables or overhead lines – providing electrical safety to Jointers, SAP’s, Technicians and Linemen carrying out daily Low Voltage fusing and jointing or the scheduled Medium/High switching or racking-in and racking-out of circuit breakers on medium/high voltage switchgear.
Arc Flash PPE & Switching Suits for MV HV Power Systems From UK Stocks
Arc Flash PPE Specification
The 25 cal arc flash coverall is made from flame retardant and antistatic material, composed of 30% cotton, 35% modacrylic, 20% viscose, 14% para-aramid and 1% antistatic fibres. This double layer fabric combines the inherent properties of aramid and the comfort of cotton. Available in navy blue and orange.
Arc Flash Clothing
Jacket

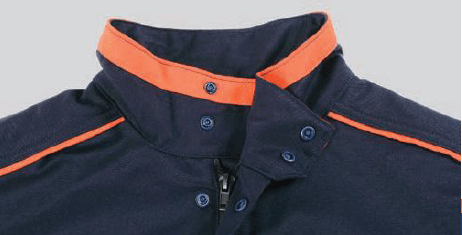

- High collar closed by press studs, zip fastener with flap closed by press studs, adjustable cuffs, longer back
- 2 low pockets with flap closed by press studs
Trousers
- Elasticated belt closed by button, zip fly, high back, knee reinforcements

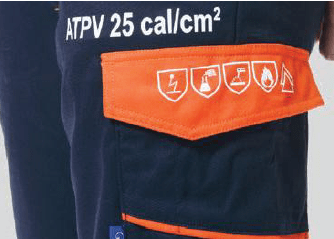

- 1 cargo pocket and 1 rule pocket with flap closed by press studs, 2 slant pockets with flap

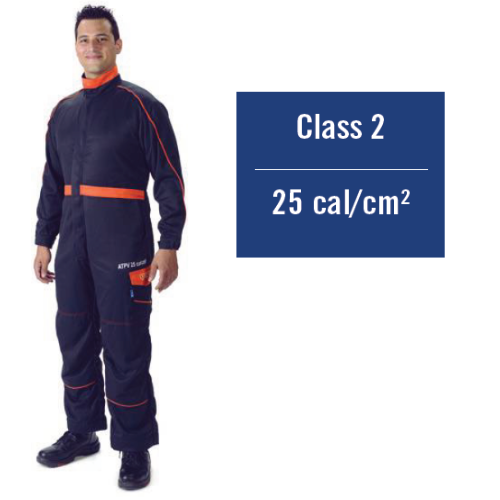

Coverall
- High collar closed by press studs, zip fastener with flap closed by press studs, adjustable cuffs, knee reinforcements
- 1 cargo pocket and 1 rule pocket with flap closed by press studs, 2 slant pockets with flap
The arc flash garments offer high visibilty and are comfortable and breathable. Arc flash clothing is free of metal, using zipper and press studs made from a plastic material. Excellent weight/performance ratio while being very comfortable
aRC fLASH STANDARDS
25 Cal Arc Flash Protection Kit complies to the following standards:
- EN ISO 11612
- EN ISO 11611
- IEC 61482-2
- EN 1149-5
- EN 13034
The range of arc flash protection suits and kits addresses the requirements for clothing that protects from the thermal hazards of electric arcs according to applicable international standards.
The performance of clothing to protect from electrical arcs may be qualified using two test methods, depending on the zone of influence :
IEC 61482-2 : GENERAL REQUIREMENTS
| Test Methods | |
| IEC 61481-2 Open arc methodDetermination of the ATPV rating of clothing stated in calories/cm² (American principle) |
IEC 61482-1-2 Box test methodDetermination of the protection class of the clothing depending on the level of intensity of the electrical installation, according to two classes: Class 1 (4 kA during 0,5 s at 30 cm) Class 2 (7 kA during 0.5 s at 30 cm) (European principle) |
In the USA, the national fire protection association (NFPA) uses four categories to classify the arc flash risk. The principle of categories is the method used in NFPA 70E to inform users about the protection they need while working on or near live equipment. The aim is to be protected from the risk of second-degree burns.
Arc Flash Garment Selection
| Part Number | Description | Sizes |
| AFSIB-VES25 | Arc flash jacket class 2, ATPV 25 cal/cm² | XS – 3XL |
| AFSIB-PAN25 | Arc flash trousers class 2, ATPV 25 cal/cm² | XS – 3XL |
| AFSIB-COM25 | Arc flash coverall class 2, ATPV 25 cal/cm² | XS – 3XL |
These high-visibility garments are available in additional colours. Contact Thorne & Derrick for more information.
Arc Flash Clothing Daily Wear Size Guide
Trousers
| XS | S | M | L | XL | XXL | 3XL | 4XL |
5XL |
||||||||||
| EU Size | 36 | 38 | 40 | 42 | 44 | 46 | 48 | 50 | 52 | 54 | 56 | 58 | 60 | 62 | 64 | 66 | 68 | 70 |
| Waist (cm) | 68 – 72 | 73 – 76 | 77 – 80 | 81 – 84 | 85 – 88 | 89 – 92 | 93 – 96 | 97 – 100 | 101 – 104 | 105 – 108 | 109 – 112 | 113 – 116 | 117 – 120 | 121 – 124 | 125 – 128 | 129 – 132 | 133 – 136 | 137 – 140 |
Jacket / Overalls
| XS | S | M | L | XL | XXL | 3XL | 4XL |
5XL |
||||||||||
| Neck Size (cm) | 35 – 36 | 37 – 38 | 39 – 40 | 41 – 42 | 43 – 44 | 45 – 46 | 47 – 48 | 49 – 50 | 51 – 52 | |||||||||
| EU Size | 36 | 38 | 40 | 42 | 44 | 46 | 48 | 50 | 52 | 54 | 56 | 58 | 60 | 62 | 64 | 66 | 68 | 70 |
| Chest Size (cm) | 78 – 80 | 81 – 84 | 85 – 88 | 89 – 92 | 93 – 96 | 97 – 100 | 101 – 104 | 105 – 108 | 109 – 112 | 113 – 116 | 117 – 120 | 121 – 124 | 125 – 128 | 129 – 132 | 133 – 136 | 137 – 140 | 141 – 144 | 145 – 148 |
Arc Flash Protection | Thorne & Derrick understand how critical it is to have reliable, highest quality personal protection equipment (PPE), clothing and workwear available from stock at competitive prices – protecting utility workers against arc flash dangers posed during maintenance on underground electric cables, overhead line conductors or electrical equipment.
