41 Cal Arc Flash Clothing

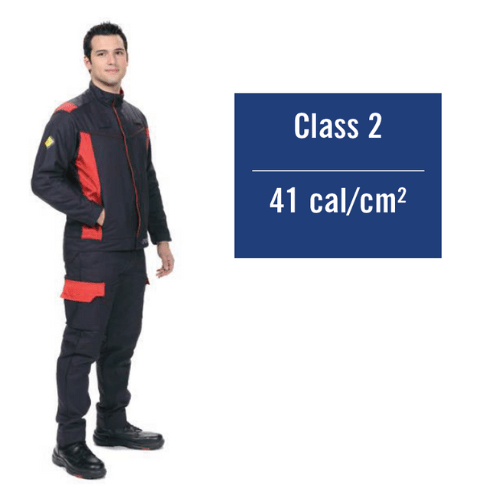

Arc Flash Clothing Kit | ATPV 41 cal/cm² Jacket & Trousers | Class 2 Arc Flash Protection
AFPRO41 arc flash garments offer protection from the thermal effects of short circuit electrical arcs, with an ATPV that does not exceed 41 cal/cm².
The arc flash clothing kit is designed for prolonged use throughout the day, and is recommended for operators working on or close to live electrical installations. AFPR041 clothing is also suitable for use in explosive atmospheres (ATEX).
The arc flash protection kit comprises of a high collar jacket and trousers with elasticated belt. Garments comply to the latest standards including EN ISO 11612 and IEC 61482-2.
The 41 Cal arc flash clothing coveralls are available in sizes XS to 3XL.
Thorne & Derrick distribute a complete range of PPE to protect workers against the risk and hazards of Arc Flash – our range of Clothing & Workwear protects those working on or in the vicinity of live or potentially live electricity and power systems at LV MV HV. We hold large volumes of garments and clothing in-stock for worker protection on underground cables or overhead lines – providing electrical safety to Jointers, SAP’s, Technicians and Linemen carrying out daily Low Voltage fusing and jointing or the scheduled Medium/High switching or racking-in and racking-out of circuit breakers on medium/high voltage switchgear.
Arc Flash PPE & Switching Suits for MV HV Power Systems From UK Stocks
Arc Flash PPE Specification
The 41 cal arc flash jacket nd trousers are made from flame retardant and antistatic material, composed of 10.5% cotton, 13% modacrylic, 75% Nomex® and 1.5% antistatic fibres. Nomex® fabric is intrinsically flame-resistant and has high thermal protection properties, while being the lightest in the market. Available in dark blue / red.
Arc Flash Clothing

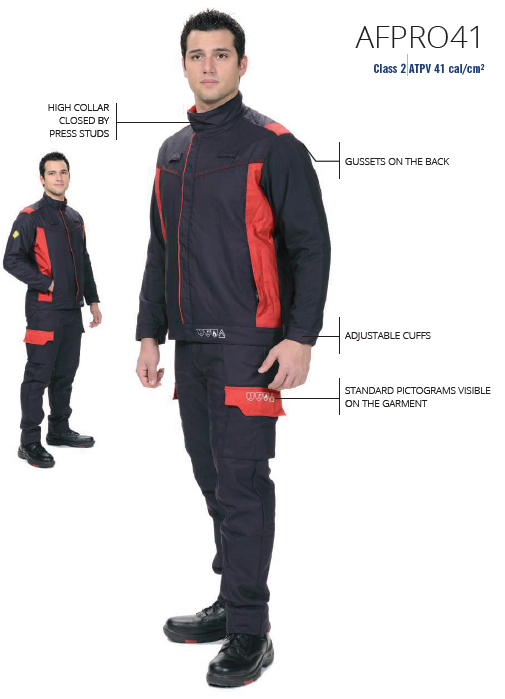

Jacket

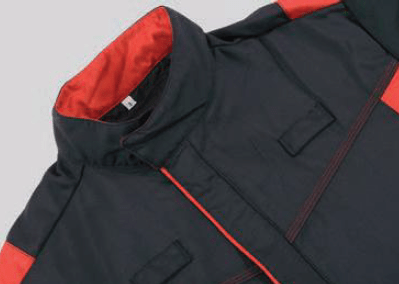

- High collar closed by press studs, zip fastener with flap closed by press studs, adjustable cuffs, 2 chest loops, gussets on the back, longer back
- 2 low pockets with flap closed by press studs, 1 inner pocket
Trousers
- Elasticated belt closed by button, zip fly, high back
- 2 cargo pockets and 1 rear pocket with flap closed by press studs, 2 slant pockets
The arc flash garments are lightweight, supple and comfortable – made from double layer aramid-based fabric which is inherently flame retardant. The AFPRO41 boasts the best weight performance on the market. Arc flash clothing is free of metal, with zip fasteners and press studs in a plastic material
aRC fLASH STANDARDS
41 Cal Arc Flash Protection Kit complies to the following standards:
- EN ISO 11612
- EN ISO 11611
- IEC 61482-2
- EN 1149-5
The range of arc flash protection suits and kits addresses the requirements for clothing that protects from the thermal hazards of electric arcs according to applicable international standards.
The performance of clothing to protect from electrical arcs may be qualified using two test methods, depending on the zone of influence :
IEC 61482-2 : GENERAL REQUIREMENTS
| Test Methods | |
| IEC 61481-2 Open arc methodDetermination of the ATPV rating of clothing stated in calories/cm² (American principle) |
IEC 61482-1-2 Box test methodDetermination of the protection class of the clothing depending on the level of intensity of the electrical installation, according to two classes: Class 1 (4 kA during 0,5 s at 30 cm) Class 2 (7 kA during 0.5 s at 30 cm) (European principle) |
In the USA, the national fire protection association (NFPA) uses four categories to classify the arc flash risk. The principle of categories is the method used in NFPA 70E to inform users about the protection they need while working on or near live equipment. The aim is to be protected from the risk of second-degree burns.
Arc Flash Garment Selection
| Part Number | Description | Sizes |
| AFPRO-VES41 | Arc flash Nomex® jacket class 2, ATPV 41 cal/cm² | XS – 3XL |
| AFPRO-PAN41 | Arc flash Nomex® trousers class 2, ATPV 41 cal/cm² | XS – 3XL |
These high-visibility garments are available in additional colours. Contact Thorne & Derrick for more information.
Arc Flash Clothing Daily Wear Size Guide
Trousers
| XS | S | M | L | XL | XXL | 3XL | 4XL |
5XL |
||||||||||
| EU Size | 36 | 38 | 40 | 42 | 44 | 46 | 48 | 50 | 52 | 54 | 56 | 58 | 60 | 62 | 64 | 66 | 68 | 70 |
| Waist (cm) | 68 – 72 | 73 – 76 | 77 – 80 | 81 – 84 | 85 – 88 | 89 – 92 | 93 – 96 | 97 – 100 | 101 – 104 | 105 – 108 | 109 – 112 | 113 – 116 | 117 – 120 | 121 – 124 | 125 – 128 | 129 – 132 | 133 – 136 | 137 – 140 |
Jacket / Overalls
| XS | S | M | L | XL | XXL | 3XL | 4XL |
5XL |
||||||||||
| Neck Size (cm) | 35 – 36 | 37 – 38 | 39 – 40 | 41 – 42 | 43 – 44 | 45 – 46 | 47 – 48 | 49 – 50 | 51 – 52 | |||||||||
| EU Size | 36 | 38 | 40 | 42 | 44 | 46 | 48 | 50 | 52 | 54 | 56 | 58 | 60 | 62 | 64 | 66 | 68 | 70 |
| Chest Size (cm) | 78 – 80 | 81 – 84 | 85 – 88 | 89 – 92 | 93 – 96 | 97 – 100 | 101 – 104 | 105 – 108 | 109 – 112 | 113 – 116 | 117 – 120 | 121 – 124 | 125 – 128 | 129 – 132 | 133 – 136 | 137 – 140 | 141 – 144 | 145 – 148 |
Arc Flash Protection | Thorne & Derrick understand how critical it is to have reliable, highest quality personal protection equipment (PPE), clothing and workwear available from stock at competitive prices – protecting utility workers against arc flash dangers posed during maintenance on underground electric cables, overhead line conductors or electrical equipment.
