8 Cal Arc Flash Clothing

Arc Flash Clothing Kit | ATPV 8 cal/cm² Jacket, Trousers and Coverall | Class 1 Arc Flash Protection


AFHV8 arc flash garments offer protection from the thermal effects of short circuit electrical arcs, with an ATPV that does not exceed 8 cal/cm².

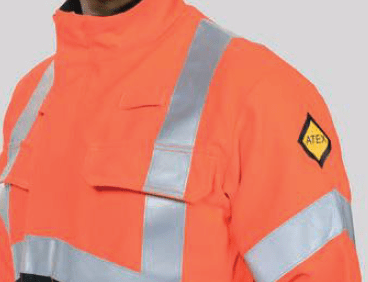

The arc flash clothing kit is designed for prolonged use throughout the day, and is recomended for operators working on or close to live electrical installations. The suits are also suitable for use in explosive atmospheres (ATEX).

The arc flash protection kit comprises of a high collared jacket and elaticated trousers, or coverall option. Garments comply to the latest standards including EN ISO 11612 and IEC 61482-2.

The 8 Cal arc flash protection kits are available in sizes XS to 3XL.

Thorne & Derrick distribute a complete range of PPE to protect workers against the risk and hazards of Arc Flash – our range of Clothing & Workwear protects those working on or in the vicinity of live or potentially live electricity and power systems at LV MV HV. We hold large volumes of garments and clothing in-stock for worker protection on underground cables or overhead lines – providing electrical safety to Jointers, SAP’s, Technicians and Linemen carrying out daily Low Voltage fusing and jointing or the scheduled Medium/High switching or racking-in and racking-out of circuit breakers on medium/high voltage switchgear.

40 Cal Arc Flash Protection PPE Suit & Kit | 40 Cal ARC40

Arc Flash PPE & Switching Suits for MV HV Power Systems From UK Stocks


Arc Flash PPE Specification

The arc flash protection kit is made from flame retardant and antistatic material, composed of 50% polyester, 27% modacrylic, 22% cotton and 1% antistatic fibres. The fabric combines the cooling properties of eucalyptus fibres and the high performance of modacrylic in the presence of electrical arcs, making the garments comfortable to wear and durable with long life span. Available in navy blue and orange.

Arc Flash Garments
8 Cal Arc Flash Clothing Benefits

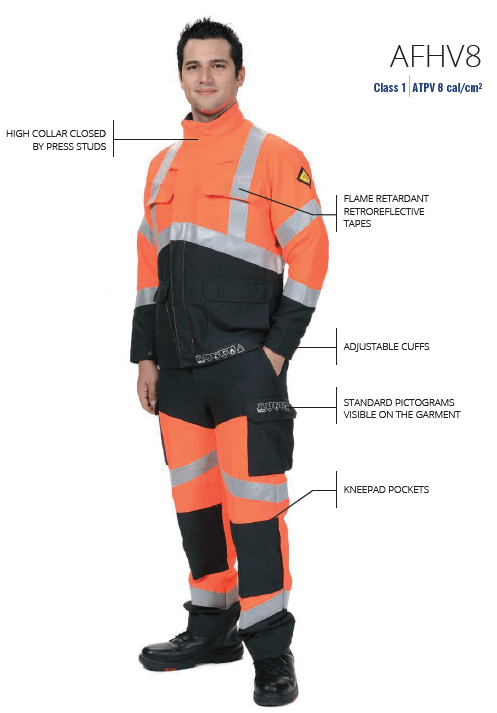

Jacket

  • High collar closed with presss studs, zip fastener with flap closed by press studs, 2 chest loops, longer back, adjustable cuffs, retroreflective tapes
  • 2 chest pockets and 2 low double entry pockets with flap closed by press studs, 1 inner pocket closed by press stud.

Trousers

  • Elasticated waist closed by button, zip fly, high back, kneepad pockets, retroreflective tapes
  • 2 slant pockets, 2 cargo pants and 1 rear pocket closed by press studs

Coverall

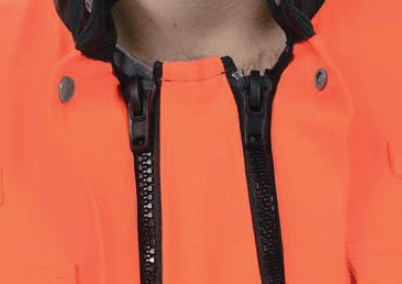

  • High collar closed with presss studs, double non-metallic zip fastener with flap closed by press studs, 2 chest loops, elasticated waist, kneepad pockets, adjustable cuffs, retroreflective tapes.
  • 2 chest pockets, 2 waist pockets, 1 rule pocket and 1 rear pocket with flap closed by press studs



8 Cal Arc Flash Clothing | Jacket, Trousers & Coverall8 Cal Arc Flash Clothing | Jacket, Trousers & Coverall


AFHV8 8 Cal Arc Flash Protection

The arc flash garments offer high visibilty along with optimal protection and ease of use. Arc flash clothing is free of metal, using zipper and press studs made from a plastic material.


aRC fLASH STANDARDS

8 Cal Arc Flash Protection Kit complies to the following standards:

  • EN ISO 11612
  • EN ISO 11611
  • IEC 61482-2
  • EN 1149-5
  • EN 13034
  • EN ISO 20471

Arc Flash Approvals

The range of arc flash protection suits and kits addresses the requirements for clothing that protects from the thermal hazards of electric arcs according to applicable international standards.

The performance of clothing to protect from electrical arcs may be qualified using two test methods, depending on the zone of influence :

IEC 61482-2 : GENERAL REQUIREMENTS

Test Methods
IEC 61481-2
Open arc methodDetermination of the ATPV rating of clothing stated in calories/cm² (American principle)
IEC 61482-1-2
Box test methodDetermination of the protection class of the clothing depending on the level of intensity of the electrical installation, according to two classes:
Class 1 (4 kA during 0,5 s at 30 cm)
Class 2 (7 kA during 0.5 s at 30 cm)
(European principle)

Arc Flash Approvals

In the USA, the national fire protection association (NFPA) uses four categories to classify the arc flash risk. The principle of categories is the method used in NFPA 70E to inform users about the protection they need while working on or near live equipment. The aim is to be protected from the risk of second-degree burns.


Arc Flash Garment Selection

Part Number Description Sizes
AFHV-VES8 Arc flash high visibility jacket class 1, ATPV 8 cal/cm² XS – 3XL
AFHV-PAN8 Arc flash high visibility trousers class 1, ATPV 8 cal/cm² XS – 3XL
AFHV-COM8 Arc flash high visibility coverall class 1, ATPV 8 cal/cm² XS – 3XL

These high-visibility garments are also available in fluorescent yellow/grey with 15 cal/cm² ATPV rating. Contact Thorne & Derrick for more information.

Arc Flash Clothing Daily Wear Size Guide

Trousers

XS S M L XL XXL 3XL 4XL
5XL
EU Size 36 38 40 42 44 46 48 50 52 54 56 58 60 62 64 66 68 70
Waist (cm) 68 – 72 73 – 76 77 – 80    81 – 84 85 – 88    89 – 92 93 – 96    97 – 100 101 – 104 105 – 108 109 – 112 113 – 116 117 – 120 121 – 124 125 – 128 129 – 132 133 – 136 137 – 140



Jacket / Overalls

XS S M L XL XXL 3XL 4XL
5XL
Neck Size (cm) 35 – 36 37 – 38 39 – 40 41 – 42 43 – 44 45 – 46 47 – 48 49 – 50 51 – 52
EU Size 36 38 40 42 44 46 48 50 52 54 56 58 60 62 64 66 68 70
Chest Size (cm) 78 – 80 81 – 84 85 – 88 89 – 92    93 – 96    97 – 100 101 – 104 105 – 108 109 – 112 113 – 116 117 – 120 121 – 124 125 – 128 129 – 132 133 – 136 137 – 140 141 – 144 145 – 148
