A2 Cable Glands
Prysmian Bicon A2 cable glands are low smoke zero halogen cable glands for LSOH unarmoured cables along with LUL approval.
A2 cable gland kits are used for galvanised steel single wire armour plastic or rubber sheathed cables in dry, dust free and non-hazardous areas – the A2 gland kit includes:
- A1/A2 Cable Gland
- Brass Locknut
- LSOH Shroud (2 per kit up to and including 25mm gland size)
A2 Cable Gland Kits
LV Cable Terminations
Prysmian Bicon A2 cable gland kits comply with BS EN 50262 & BS 6121-1: 1989. Suitable for glanding SWA unarmoured cables – stranded copper conductors can be terminated using Cembre crimp or Pfisterer shearbolt cable lugs. Complies with LU Standard 1-085 for installation in all sub-surface locations and LUL APR Product ID 1971. A2 cable gland rated to IP66 with use of suitable sealing washer or thread sealant at gland interface.
Saffire 6491B – Single Core Zero Halogen, Low Smoke Cable (OHLS®)
Saffire 6242B – Flat, Twin Core Zero Halogen, Low Smoke Cable (OHLS®)
Saffire BS6724 – Multi-Core Armoured Zero Halogen, Low Smoke Cable (OHLS®)
Saffire BS6724 Auxiliary – Multi-Core Armoured Zero Halogen, Low Smoke Cables (OHLS®)
Saffire Railsure – London Underground Approved Single Core Zero Halogen, Low Smoke Cable (OHLS®)
CuZn39Pb3 brass alloy is used for guaranteed performance – the gland kit is suitable for service temperatures from -20ºC to +90ºC.
Prysmian Cable Glands – Industrial, Hazardous Area & High Voltage Cable Terminations
Prysmian Bicon A2 Cable Gland Kits (Low Smoke Zero Halogen LSF)
Technical Specification
| Prysmian Bicon Reference (Standard) | Prysmian Bicon Reference (Nickel Plated) | Size | Quantity Per Kit | Cable Dimensions (mm) | A2 Cable Gland Dimensions (mm) | |||||
| Cable Diameter Ø (B) mm) | Entry Thread (D) | Thread Length (E) | Protrusion Length (F) | Hexagon | ||||||
| Min | Max | A/F (G) | A/C (H) | |||||||
| 423LSF-71 | 423LSF-71V | 20SS | 2 | 3.5 | 8.5 | M20 x 1.5 | 10 | 20 | 22 | 24.9 |
| 423LSF-52 | 423LSF-52V | 20S | 2 | 8.0 | 11.5 | M20 x 1.5 | 10 | 22 | 22 | 24.9 |
| 423LSF-53 | 423LSF-53V | 20 | 2 | 11.0 | 13.5 | M20 x 1.5 | 10 | 22 | 24 | 27 |
| 423LSF-55 | 423LSF-55V | 25 | 2 | 13.0 | 19.5 | M25 ×1.5 | 10 | 25 | 30.5 | 34 |
| 423LSF-56 | 423LSF-56V | 32 | 1 | 19.0 | 25.5 | M32 × 1.5 | 10 | 25 | 42.4 | 48 |
| 423LSF-57 | 423LSF-57V | 40 | 1 | 25.0 | 32.0 | M40 × 1.5 | 15 | 33 | 47.2 | 53.6 |
| 423LSF-58 | 423LSF-58V | 50S | 1 | 31.5 | 37.0 | M50 ×1 .5 | 15 | 30 | 55 | 60 |
| 423LSF-59 | 423LSF-59V | 50 | 1 | 36.5 | 43.0 | M50 × 1.5 | 15 | 30 | 56.4 | 61.5 |
| 423LSF-60 | 423LSF-60V | 63S | 1 | 42.5 | 50.0 | M63 × 1.5 | 15 | 34 | 70.1 | 77.2 |
| 423LSF-61 | 423LSF-61V | 63 | 1 | 49.5 | 55.0 | M63 × 1.5 | 15 | 32 | 75 | 83 |
| 423LSF-62 | 423LSF-62V | 75S | 1 | 54.5 | 61.0 | M75 × 1.5 | 15 | 32 | 80 | 87.4 |
| 423LSF-63 | 423LSF-63V | 75 | 1 | 60.5 | 67.0 | M75 ×1 .5 | 15 | 40 | 85 | 95 |

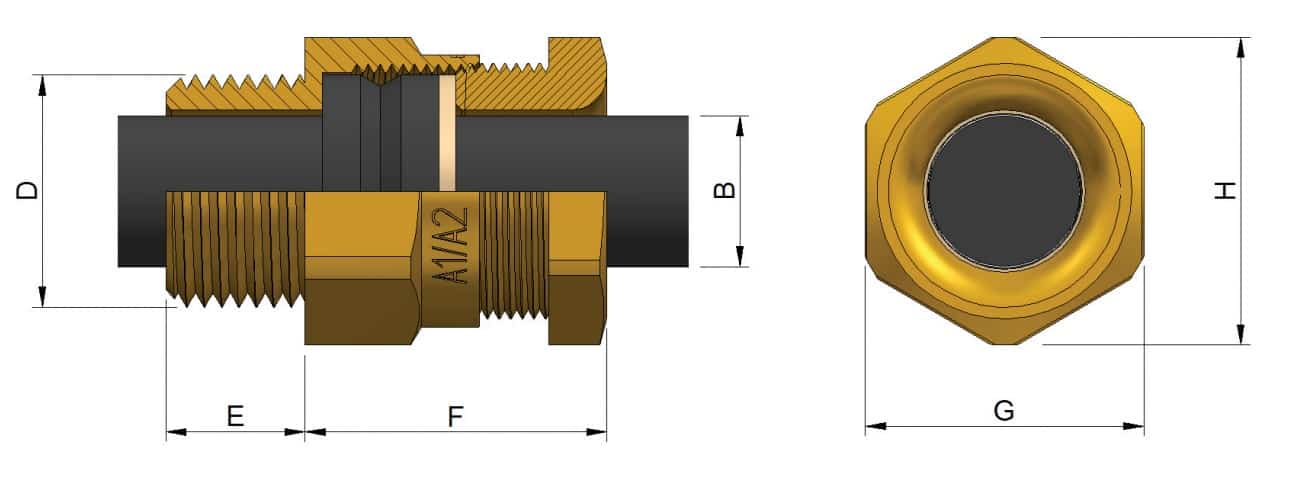

Prysmian Bicon A2 LSF Cable Gland Kits – Dimensions Illustration
Prysmian Cable Glands
Terminating Low Voltage Cables
Prysmian cable gland kits available in brass, aluminium, nickel plated or stainless steel for cable termination of wire armoured, wire braided and unarmoured cables, including low smoke zero halogen cables in industrial non-hazardous areas. Flameproof and explosion proof Ex e/Ex d hazardous area cable glands with ATEX and IECEx certifications also available.
Also a complete range of Prysmian single, trefoil and bundled LV-HV cable cleats.
Prysmian Bicon BW Brass, CW Brass, CW Aluminium and A2 Brass Cable Glands
➡ For complete information, technical specifications and ordering details about A2 LSF Cable Glands see the product sections below.
