Bare Aluminium Tape | Furse

Bare Aluminium Tape

Furse

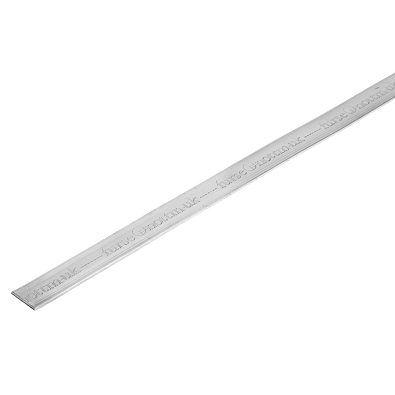

Bare aluminium tape, manufacfured by Furse, is available in a range of sizes to meet differing current ratings (see product information table) – copper earth tape also available.

Furse Product Details

All bare aluminium tape sold in full coil lengths only

Earthing Standards

BS EN 755-5
IEC/BS EN 62561-2 (TA030)

Furse Bare Aluminium Tape

➡ The following table enables the selection of bare aluminium tapes manufactured by Furse – should you require any further information please do not hesitate to contact us.

Conductors

Earthing conductors are available in high conductivity copper and aluminium as bare, tinned or lead with PVC or LSOH (Low Smoke Zero Halogen) covering – conductors are used to prevent large transients entering a buildings power distribution system safely dispersing the electrical currents.

Furse Bare Aluminium Tape	Conductor size (mm)	Standard coil size (m)	Weight per metre (kg)
TA005	12.5 x 1.5	50	0.05
TA020	20 x 3	50	0.17
TA030	25 x 3	50	0.21
TA042	30 x 3	50	0.25
TA040	25 x 6	50	0.42
TA068	40 x 6	50	0.67
TA080	50 x 6	25	0.85
