Prysmian Bicon BW cable glands are low smoke zero halogen cable glands for the rapid termination of steel wire LSOH armoured cables.
BW cable gland kits are used for galvanised steel single wire armour plastic or rubber sheathed cables in dry, dust free and non-hazardous areas – the BW gland kit includes:
- BW Cable Gland
- Brass Earth Tag
- Brass Locknut
- PVC Shroud (2 per kit up to and including 25mm gland size)
BW Cable Gland Kits
LV Cable Terminations
Prysmian Bicon BW cable gland kits comply with BS6121-1:2005. Suitable for glanding SWA armoured cables including BS 6724 – stranded copper conductors can be terminated using Cembre crimp or Pfisterer shearbolt cable lugs. Complies with LU Standard 1-085 for installation in all sub-surface locations, BS 6121-1: 2005 and LUL APR Product ID 1968.
Saffire 6491B – Single Core Zero Halogen, Low Smoke Cable (OHLS®)
Saffire 6242B – Flat, Twin Core Zero Halogen, Low Smoke Cable (OHLS®)
Saffire BS6724 – Multi-Core Armoured Zero Halogen, Low Smoke Cable (OHLS®)
Saffire BS6724 Auxiliary – Multi-Core Armoured Zero Halogen, Low Smoke Cables (OHLS®)
Saffire Railsure – London Underground Approved Single Core Zero Halogen, Low Smoke Cable (OHLS®)
CuZn39Pb3 brass alloy is used for guaranteed performance – the gland kit is suitable for service temperatures from -20ºC to +90ºC.
Prysmian Cable Glands – Industrial, Hazardous Area & High Voltage Cable Terminations
Prysmian Bicon BW Cable Gland Kits (Low Smoke Zero Halogen LSF)
Technical Specification
| Prysmian Bicon Reference | Size | Quantity Per Kit | Cable Dimensions (mm) | BW Cable Gland Dimensions (mm) | |||||
| Under Armour ∅ (A) | Armour Wire ∅ | Entry Thread (D) | Thread Length (E) | Protrusion Length (F) | Hexagon | ||||
| Max | A/F (G) | A/C (H) | |||||||
| 420LSF-52 | 20S | 2 | 11.6 | 0.9 | M20 x 1.5 | 10 | 24 | 22 | 24.9 |
| 420LSF-53 | 20 | 2 | 13.9 | 0.9/1.25 | M20 x 1.5 | 10 | 25 | 27 | 30.5 |
| 420LSF-55 | 25 | 2 | 19.9 | 1.25/1.6 | M25 x 1.5 | 10 | 26 | 32.9 | 36.8 |
| 420LSF-56 | 32 | 1 | 26.2 | 1.6/2.0 | M32 x 1.5 | 10 | 28 | 42.4 | 47.8 |
| 420LSF-57 | 40 | 1 | 32.1 | 1.6/2.0 | M40 x 1.5 | 15 | 25 | 50 | 57 |
| 420LSF-59 | 50 | 1 | 44.0 | 2.0/2.5 | M50 x 1.5 | 15 | 36 | 70.1 | 77.2 |
| 420LSF-61 | 63 | 1 | 55.9 | 2.5 | M63 x 1.5 | 15 | 30 | 80 | 87.4 |
| 420LSF-62 | 75S | 1 | 61.9 | 2.5 | M75 x 1.5 | 15 | 40 | 85 | 95 |
| 420LSF-63 | 75 | 1 | 67.9 | 2.5 | M75 x 1.5 | 15 | 40 | 98.8 | 109.2 |

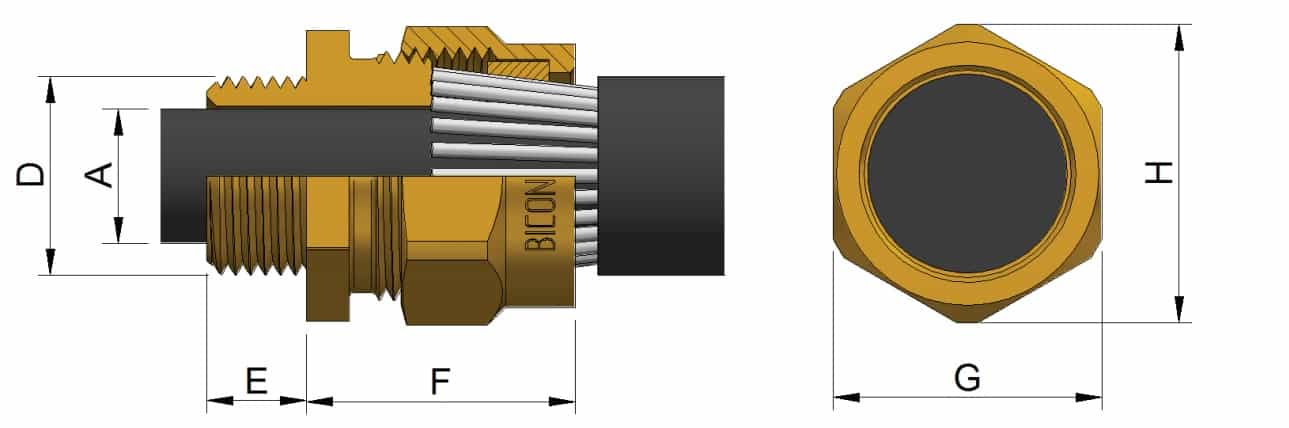

Prysmian Bicon BW LSF Cable Gland Kits – Dimensions Illustration
