Cable Jack Towers For Heavy Cable Drum Lifting (Up To 40 Tonnes)

Cable Jack Towers For Heavy Cable Drum Lifting (Up To 40 Tonnes)

Jack Towers for Lifting LV MV HV Cable Drums

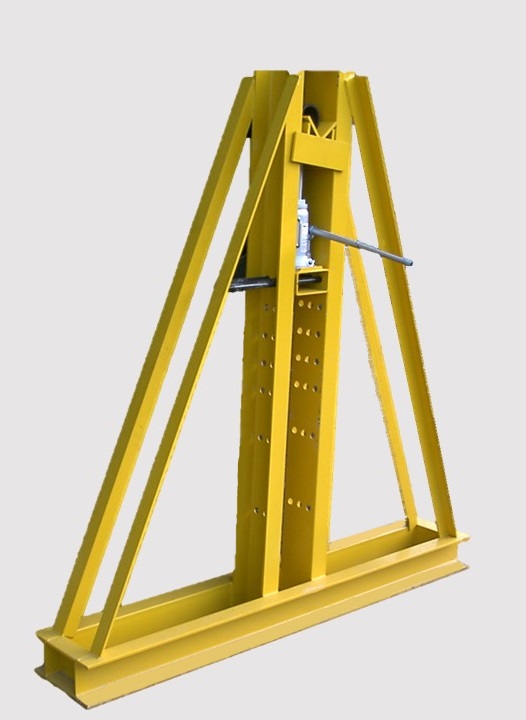

Cable jack towers are designed for lifting cable drums up to 40 tonnes and form part of the SEB cable jack range – robust in construction with spindle ‘V’ blocks and high quality hydraulic jacks.

Cable jack towers can also be supplied with an additional outrigger leg and an uprated jack to lift abnormal loads up to 40 tonnes – a complete range of Spindle Bars & Locking Collars to suit the range of Cable Drum Jack Towers are available from stock.

Cable Jack Towers

Designed for Lifting Heavy & High Voltage Cable Drums

Drum Lifting Cable Jacks 20 Tonne

SEB JT20

20 Tonne Capacity SWL Per Pair of Cable Jacks
Minimum Drum Dia 1480mm
Maximum Drum Dia 3400mm
Base Area 1830x285mm
Weight Per Jack Pair 370Kgs

Drum Lifting Cable Jacks 30 Tonne

SEB JT30

30 Tonne Capacity SWL Per Pair of Cable Jacks
Mimimum Drum Dia 3000mm
Maximum Drum Dia 4500mm
Base Area 2000x800mm
Weight Per Jack Pair 660Kgs

Drum Lifting Cable Jacks 40 Tonne

SEB JT40

40 Tonne Capacity SWL Per Pair of Cable Jacks
Minimum Drum Dia 3000mm
Maximum Drum Dia 4500mm
Base Area 2000x1000mm
Weight Per Jack Pair 1150kgs

Cable Drum Jacks

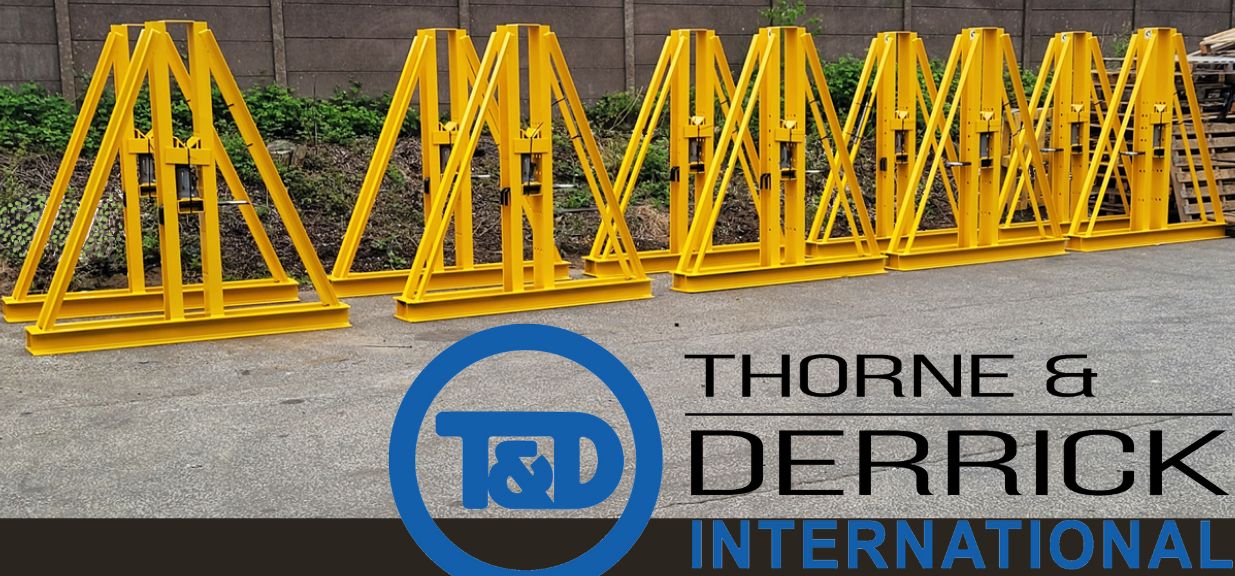

Pictured: 5 sets of cable jack towers – the JT20 Cable Drum Jack Towers to support the safe on-site handling of LV-EHV cable drums at National Grid UK. Robust engineered construction with hydraulic jacks and adjustable height spindle support blocks.

Drum Lifting Jack Specification | JT20 20 Tonne Capacity SWL Per Pair, Minimum Drum Dia 1480mm, Maximum Drum Dia 3400mm, Base Area 1830x285mm, Weight Per Pair 370Kgs.
