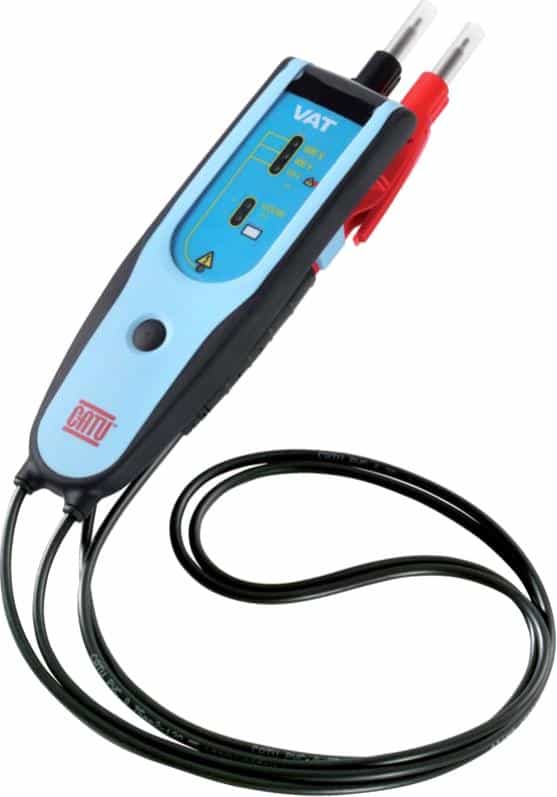

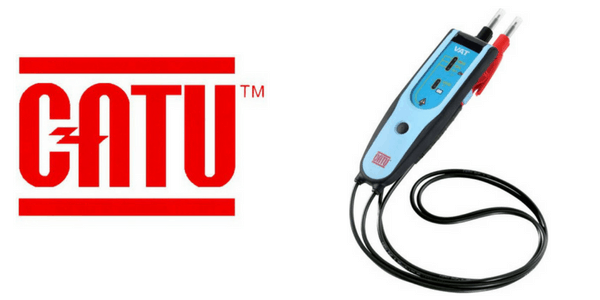

CATU MS-917-VE NVT LV Detector
CATU MS-917-VE NVT LV Detector
CATU MS-917-VE is a low voltage detector compliant IEC 61243-3 standards and the European standards EN 61243-3 & EN 50110-1. The MS-917-VE is specifically designed to check for no voltage and direct current voltages on electric or hybrid vehicles.
Safety features include checking voltage levels from 12 to 750 V DC and searching for polarity in a DC circuit.
CATU MS-917-VE NVT LV DETECTOR FEATURES
- Checking a circuit’s sound and light continuity (power off),
- Test button and continuity control
- IP2X test-lead points retractable sleeves
- New: the “Touch” function: hold in the retracted position in complete safety
- Voltage detection on electrical power circuit.
CATU Electrical MS-917-VE NVT LV Detector
CATU MS-917-VE NVT LV DETECTOR
- Part Number – CATU Electrical MS-917-VE
- Voltage – 50/60 Hz +/- 10 %
- Protection – IP65, IK06
- Class – II
- Category IV – 600 V
- Operating Temperature – -15 to +45 °C (class N)
- Batteries –Â 2 AAA batteries 1.5 V
- Weight – 210g
