CMP A2F Zone 2 Hazardous Area ATEX Cable Gland Ex e, Ex d, Ex nR, Ex ta

CMP A2F Zone 2 Hazardous Area ATEX Cable Gland Ex e, Ex d, Ex nR, Ex ta

CMP A2F Cable Gland

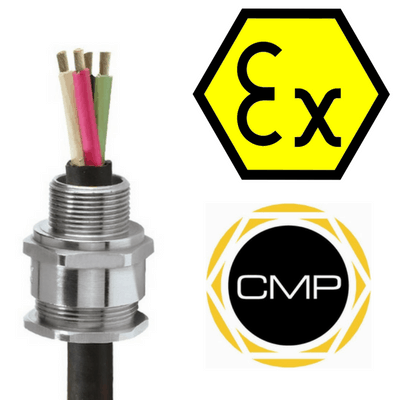

CMP A2F cable gland for terminating all types of unarmoured and braid type cables located in Zone 2 hazardous areas.

CMP A2F Cable Glands

  • Displacement type flameproof seal
  • Deluge protected cable gland
  • -60ËšC to +130ËšC, -20ºC to 200ºC (ThermEx option A2FHT)
  • Globally marked – hazardous area certified to IECEx & ATEX
  • Class I Zone 1, Class I Division 2 BCD (Canada only)
  • Order Code: CMP A2F** (Brass) Cable Gland

Hazardous Area Cable Glands

CMP A2F cable glands are certified by ATEX for safe glanding of cables in Zone 2 potentially explosive atmospheres according to the following hazardous area classification:

  •  II 2G, II 1D Ex d IIC Gb, Ex e IIC Gb, Ex ta IIIC Da
  • II 3G Ex nR IIC Gc I M2 Ex d I Mb, Ex e I Mb

âž¡ See full range of CMP ATEX Cable Glands for unarmoured and braided cables – to view the complete range of CMP glands for Zone 1 & Zone 2 cable termination please visit Hazardous Area Cable Glands Zone 1 & Zone 2 locations.

cmp A2f Cable Glands specification

CMP A2F Cable Gland Material: Brass, Electroless Nickel Plated Brass, Aluminium, Stainless Steel

Cable Gland Design Specification: BS6121: Part 1: 1989, IEC 62444, EN 62444

The following table enables the selection of CMP A2F cable glands – should you need to discuss a specific application for hazardous area or high voltage cable applications please call T&D.

CMP Cable Gland Size Available Entry Threads “C” (Alternative Metric Thread Lengths Available Overall Cable Diameter “A” Across Flats “D” Across Corners “D” Protrusion Length “F” Combined Ordering Reference (Brass Metric) Cable Gland Shroud Cable Gland Weight (kgs)
Standard Option
Metric Thread Length (Metric) “E” NPT Thread Length (NPT) “E” NPT Min Max Max Max Max Size Type Ordering Suffix
A2F16 M16 15.0 – – – 3.2 8.7 24.0 26.4 29.9 16 A2F 1RA PVC02 0.060
A2F20s16 M20 15.0 1/2″ 19.9 3/4″ 3.2 8.7 24.0 26.4 26.0 20S16 A2F 1RA PVC04 0.070
A2F20S M20 15.0 1/2″ 19.9 3/4″ 6.1 11.7 24.0 26.4 26.0 20S A2F 1RA PVC04 0.060
A2F20 M20 15.0 1/2″ 19.9 3/4″ 6.5 14.0 27.0 29.7 27.7 20 A2F 1RA PVC05 0.070
A2F25 M25 15.0 3/4″ 20.2 1″ 11.1 20.0 36.0 39.6 35.5 25 A2F 1RA PVC09 0.130
A2F32 M32 15.0 1″ 25.0 1 1/4″ 17.0 26.3 41.0 45.1 35.1 32 A2F 1RA PVC10 0.150
A2F40 M40 15.0 1 1/4″ 25.6 1 1/2″ 23.5 32.2 50.0 55.0 35.1 40 A2F 1RA PVC13 0.200
A2F50S M50 15.0 1 1/2″ 26.1 2″ 31.0 38.2 55.0 60.5 33.0 50S A2F 1RA PVC15 0.260
A2F50 M50 15.0 2″ 26.9 2 1/2″ 35.6 44.0 60.0 66.0 37.3 50 A2F 1RA PVC18 0.270
A2F63S M63 15.0 2″ 26.9 2 1/2″ 41.5 49.9 70.5 77.6 33.5 63S A2F 1RA PVC21 0.430
A2F63 M63 15.0 2 1/2″ 39.9 3″ 47.2 55.9 75.0 82.5 36.2 63 A2F 1RA PVC23 0.400
A2F75S M75 15.0 2 1/2″ 39.9 3″ 54.0 61.9 84.0 92.4 34.1 75S A2F 1RA PVC24 0.520
A2F75 M75 15.0 3″ 41.5 3 1/2″ 61.1 67.9 84.0 92.4 40.9 75 A2F 1RA PVC26 0.500
A2F90 M90 24.0 3 1/2″ 42.8 4″ 66.6 79.9 108.0 118.8 60.3 90 A2F 1RA PVC31 1.600
A2F100 M100 24.0 3 1/2″ 42.8 4″ 76.0 91.0 123.0 135.3 57.2 100 A2F 1RA LSF33 1.780
A2F115 M115 24.0 4″ 44.0 5″ 86.0 97.9 133.4 146.7 67.3 115 A2F 1RA LSF34 2.670
A2F130 M130 24.0 5″ 46.8 – 97.0 114.9 152.4 167.6 74.7 130 A2F 1RA LSF35 3.800
