Anderlite Curved Concrete Trough

Anderlite Concrete Trough

Curved

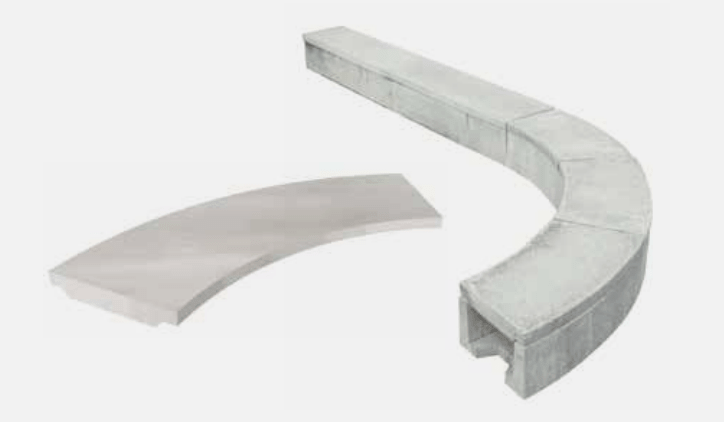

Anderlite curved concrete cable troughs are manufactured by Anderton and used to provide cable containment and protection and can be used within rail industry applications.

Curved cable troughs & lids are non-conductive to electricity and ensure cables are protected from environmental damage.

Anderton’s Anderlite curved cable troughs & lids are for pedestrian traffic only. Additionally once the lid is fitted, the internal capacity of the concrete cable trough will be reduced.

This lightweight and easy to handle concrete trough can reduce transport costs by up to 20% making the Anderlite range a cost effective solution.

Up to 4 times cheaper than alternative cable trough, Anderlite products utilise 7% recycled materials and is completely compatible with all existing concrete trough systems.

ANDERLITE Curved CONCRETE TROUGH

FEATURES

Anderlite concrete is naturally fire resistant. The system also offers the optional benefit of being able to protect cables against theft when used in conjunction with Ander-Loc and Ander-Fin cable theft deterrents.

Some of the benefits of Anderlite troughing are:

Network Rail Approved
Environmentally Friendly
Up to 30% lighter than traditional systems
Reduces manual handling concerns
Cost effective in purchase
Strong, robust and durable
Reduces transport costs by up to 20%
Fire resistant
Weather resistant

Curved Concrete Cable Troughs

Specification

Order Code	PADS Number	Weight	Dimensions				Number per Tonne	Pallet Quantity
			Internal Dimensions		Radius (R)	External Width (WE)
			Width (W)	Depth (D)	Radius (R)	External Width (WE)
C/1/16TCRW	0004/131491	19kg	190mm	90mm	1000mm	130mm	52	24
C/1/11TCRW	–	16kg	190mm	90mm	1500mm	130mm	63	10
C/1/17TCRW	0004/131493	16kg	220mm	130mm	1000mm	170mm	62	24
C/1/12TCRW	–	30kg	220mm	130mm	1500mm	170mm	33	48
C/1/18TCRW	0004/131495	29kg	250mm	200mm	1000mm	240mm	34	24
C/1/13TCRW	–	43kg	250mm	200mm	1500mm	240mm	23	10
C/1/19TCRW	0004/131470	18kg	280mm	130mm	1000mm	170mm	55	40
C/1/14TCRW	0004/131487	28kg	280mm	130mm	1500mm	170mm	35	48
C/1/15TCRW	0004/131489	36kg	340mm	130mm	1500mm	170mm	27	10
C/1/20TCRW	0004/131472	21kg	340mm	130mm	1000mm	170mm	47	36
C/1/30TCRW	0004/131497	23kg	440mm	130mm	1000mm	170mm	43	10
C/1/31TCRW	0004/131499	45kg	440mm	130mm	1500mm	170mm	22	10
C/1/82TCRW	0004/131503	61kg	440mm	300mm	1000mm	340mm	16	10

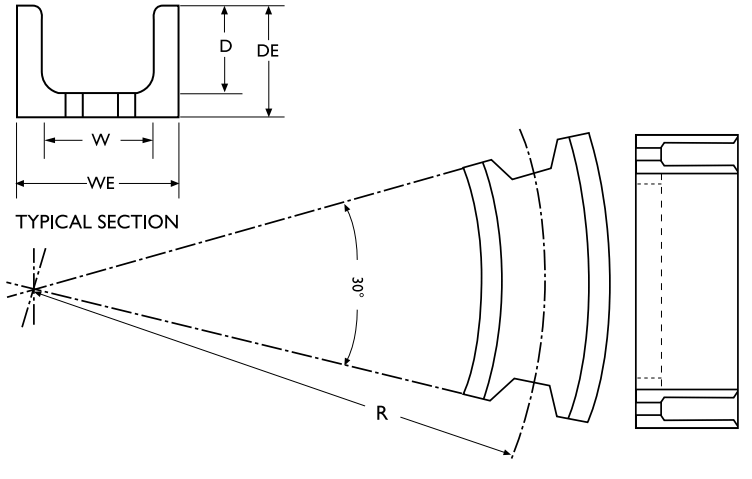

Anderlite Curved Concrete Trough | Dimensions

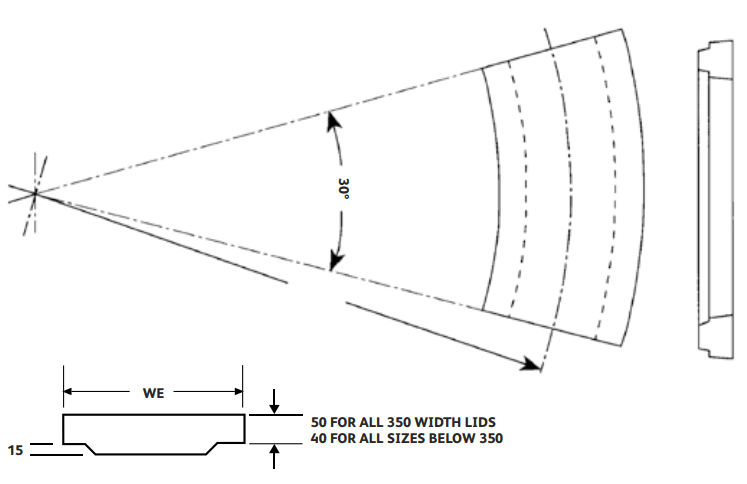

Curved Concrete Cable Trough Lids

Specification

Order Code	PADS Number	Weight	Dimensions				Number per Tonne	Pallet Quantity
			Internal Dimensions		Radius (R)	External Width (WE)
			Width (W)	Depth (D)	Radius (R)	External Width (WE)
C/1/16LCRW	0004/131492	8kg	100mm	90mm	1000mm	130mm	125	24
C/1/11LCRW	–	10kg	100mm	90mm	1500mm	130mm	100	10
C/1/17LCRW	0004/131494	10kg	130mm	130mm	1000mm	170mm	100	24
C/1/12LCRW	–	16kg	130mm	130mm	1500mm	170mm	52	48
C/1/18LCRW	0004/131496	12kg	150mm	200mm	1000mm	240mm	83	24
C/1/13LCRW	–	18kg	150mm	200mm	1500mm	240mm	55	10
C/1/19LCRW	0004/131471	11kg	190mm	130mm	1000mm	170mm	90	80
C/1/14LCRW	0004/131488	22kg	190mm	130mm	1500mm	170mm	45	48
C/1/15LCRW	0004/131490	24kg	250mm	130mm	1000mm	170mm	41	10
C/1/20LCRW	0004/131473	14kg	250mm	130mm	1500mm	170mm	71	48
C/1/30LCRW	0004/131498	22kg	350mm	130mm	1000mm	170mm	45	24
C/1/31LCRW	0004/131500	42kg	350mm	130mm	1500mm	170mm	23	30
C/1/82LCRW	0004/131504	26kg	350mm	300mm	1000mm	340mm	38	24
