Concrete Cable Trough

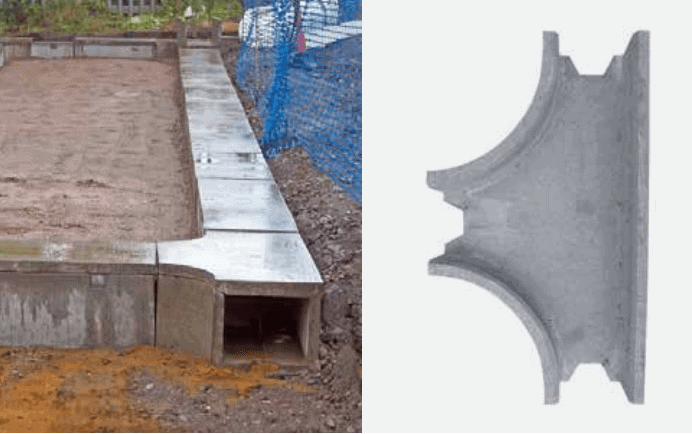

Anderlite T-Piece

Anderlite T-Piece is part of the concrete cable troughs range manufactured by Anderton and used to provide cable containment and protection and can be used within rail industry applications.

Anderton Anderlite T-Piece concrete cable troughs and lids are non-conductive to electricity and ensure cables are protected from environmental damage.

This lightweight and easy to handle concrete trough can reduce transport costs by up to 20% making the Anderlite range a cost effective solution.

Up to 4 times cheaper than alternative cable trough, Anderlite products utilise 7% recycled materials and is completely compatible with all existing concrete trough systems.

ANDERLITE T-Piece CONCRETE TROUGH

FEATURES

Anderlite concrete is naturally fire resistant. The system also offers the optional benefit of being able to protect cables against theft when used in conjunction with Ander-Loc and Ander-Fin cable theft deterrents.

Concrete Cable Troughs & Lids - Tee Some of the benefits of Anderlite troughing are:

Network Rail Approved
Environmentally Friendly
Up to 30% lighter than traditional systems
Reduces manual handling concerns
Cost effective in purchase
Strong, robust and durable
Reduces transport costs by up to 20%
Fire resistant
Weather resistant

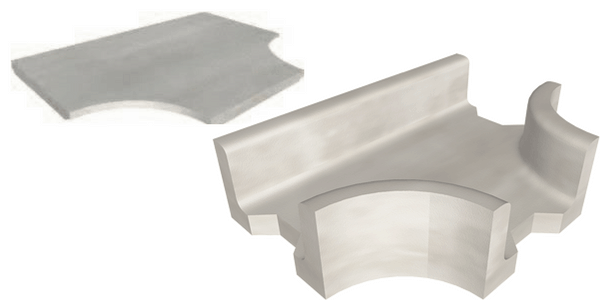

Anderlite Concrete Trough - T-Piece

T-Piece Concrete Cable Troughs

Specification

Order Code	PADS Number	Weight	Dimensions (Length 1000mm)					Number per Tonne	Pallet Quantity
			Main Route		Branch		x
			Width (W1)	Depth (D1)	Width (W2)	Depth (D2)	x
C/1/41TTRW	0004/131466	33kg	100mm	90mm	100mm	90mm	450mm	30	10
C/1/39TTRW	0004/131464	45kg	130mm	130mm	130mm	130mm	450mm	22	10
C/1/23TTRW	0004/131456	64kg	150mm	200mm	150mm	200mm	450mm	15	8
C/1/37TTRW	0004/131462	44kg	190mm	130mm	190mm	130mm	450mm	22	10
C/1/34TTRW	0004/131460	47kg	250mm	130mm	250mm	130mm	450mm	21	10
C/1/80TTRW	0004/131468	55kg	350mm	130mm	350mm	130mm	450mm	18	10
C/1/81TTRW	0004/131486	91kg	350mm	300mm	350mm	300mm	450mm	11	4
C/1/42TTRW	–	112kg	350mm	130mm	150mm	200mm	450mm	9	8
C/1/32TTRW	0004/131458	53kg	350mm	130mm	250mm	130mm	450mm	18	10

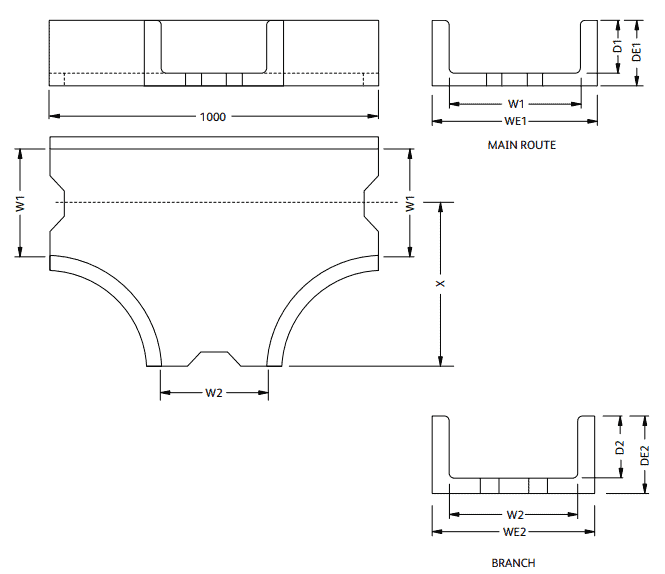

Anderlite T-Piece – Dimensions

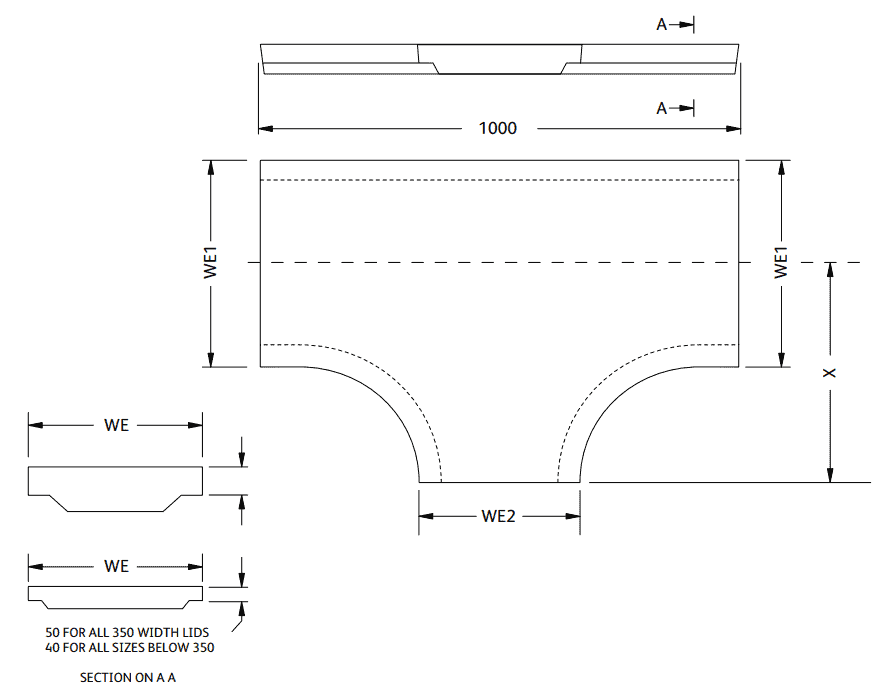

T-Piece Concrete Cable Trough Lids

Specification

Order Code	PADS Number	Weight	Dimensions (Length 1000mm)					Number per Tonne	Pallet Quantity
Order Code	PADS Number	Weight	Main Route	Branch	Width (WE)	Width (WE2)	Size of Trough Branch	Number per Tonne	Pallet Quantity
C/1/41LTRW	0004/131467	25kg	100 x 90	100 x 90	190mm	190mm	450mm	40	20
C/1/39LTRW	0004/131465	28kg	130 x 130	130 x 130	220mm	220mm	450mm	35	20
C/1/23LTRW	0004/131457	35kg	150 x 200	150 x 200	250mm	250mm	500mm	28	16
C/1/37LTRW	0004/131463	33kg	190 x 130	190 x 130	280mm	280mm	450mm	30	20
C/1/34LTRW	0004/131461	39kg	250 x 130	250 x 130	340mm	340mm	450mm	25	20
C/1/80LTRW	0004/131469	51kg	350 x 130	350 x 130	440mm	440mm	450mm	19	20
C/1/81LTRW	0004/131469	50kg	350 x 300	350 x 300	440mm	440mm	450mm	20	20
C/1/42LTRW	–	33kg	350 x 130	150 x 200	440mm	440mm	450mm (with C/1/8 Branch)	16	16
C/1/32LTRW	0004/131459	57kg	350 x 130	250 x 130	440mm	440mm	450mm	17	20
