E1W Cable Glands

Prysmian Bicon E1W cable glands are low smoke zero halogen cable glands that have a weatherproof dual seal high performance cable gland suitable for LS0H cables along with LUL approval.

E1W cable gland kits are used for galvanised steel single wire armour plastic or rubber sheathed cables in dry, dust free and non-hazardous areas – the E1W gland has a three part amour lock with separate armour locking ring, ideal for checking electrical continuity.

E1W Brass Cable Gland Kits

LV Cable Terminations

Prysmian Bicon E1W cable gland kits comply with BS EN 50262 & BS 6121-1: 1989. Suitable for glanding all Steel wire armoured cables inc: BS 6724, BS 8519, BS 7846, BS 6387 and BS 7835 – stranded copper conductors can be terminated using Cembre crimp or Pfisterer shearbolt cable lugs. Complies with LU Standard 1-085 for installation in all sub-surface locations and LUL APR Product ID 1968. E1W cable gland rated to IP66 with use of suitable sealing washer or thread sealant at gland interface.

Saffire 6491B – Single Core Zero Halogen, Low Smoke Cable (OHLS®)

Saffire 6242B – Flat, Twin Core Zero Halogen, Low Smoke Cable (OHLS®)

Saffire BS6724 – Multi-Core Armoured Zero Halogen, Low Smoke Cable (OHLS®)

Saffire BS6724 Auxiliary – Multi-Core Armoured Zero Halogen, Low Smoke Cables (OHLS®)

Saffire Railsure – London Underground Approved Single Core Zero Halogen, Low Smoke Cable (OHLS®)

CuZn39Pb3 brass alloy is used for guaranteed performance – the gland kit is suitable for service temperatures from -20ºC to +90ºC.

Prysmian Cable Glands – Industrial, Hazardous Area & High Voltage Cable Terminations

Prysmian Bicon e1w Cable Gland Kits (LUL London Underground Approved)

Technical Specification

Prysmian Bicon Reference	Size	Quantity Per Kit	Under Armour Max Ø (A)		Cable Dimensions (mm)		E1W Cable Gland Dimensions (mm)
			Min	Max	Cable Diameter Ø (B) mm)		Armour Wire Ø	Entry Thread (D)	Thread Length (E)	Protrusion Length (F)	Hexagon
			Min	Max	Min	Max	Armour Wire Ø	Entry Thread (D)	Thread Length (E)	Protrusion Length (F)	A/F (G)	A/C (H)
421LSF-71	20SS	2	6.3	8.6	8.0	13.2	0.9	M20×1.5	15	44	23.4	26.7
421LSF-52	20S	2	8.7	11.6	8.0	15.8	0.9/1.25	M20×1.5	15	46	25.7	29.2
421LSF-53	20	2	11.7	13.9	11.7	20.8	0.9/1.25	M20×1.5	15	46	30.5	34.0
421LSF-55	25	2	13.0	19.9	17.0	27.2	1.25/1.6	M25×1.5	15	51	37.6	42.2
421LSF-56	32	1	20.0	26.2	23.5	33.5	1.6/2.0	M32×1.5	15	56	47.3	53.6
421LSF-57	40	1	26.3	32.1	29.0	39.9	1.6/2.0	M40×1.5	15	59	56.4	61.5
421LSF-58	50S	1	32.2	38.1	38.0	46.2	2.0/2.5	M50×1.5	15	64	60.0	66.0
421LSF-59	50	1	38.2	44.0	39.5	52.6	2.0/2.5	M50×1.5	15	64	70.1	77.2
421LSF-60	63S	1	44.1	50.0	50.0	58.9	2.5	M63×1.5	15	67	75.0	83.0
421LSF-61	63	1	50.1	55.9	51.3	65.3	2.5	M63×1.5	15	67	80.0	87.4
421LSF-62	75S	1	56.0	61.9	62.0	71.6	2.5	M75×1.5	15	76	90.2	99.1
421LSF-63	75	1	62.0	67.9	62.5	78.0	2.5	M75×1.5	15	76	98.8	109.2

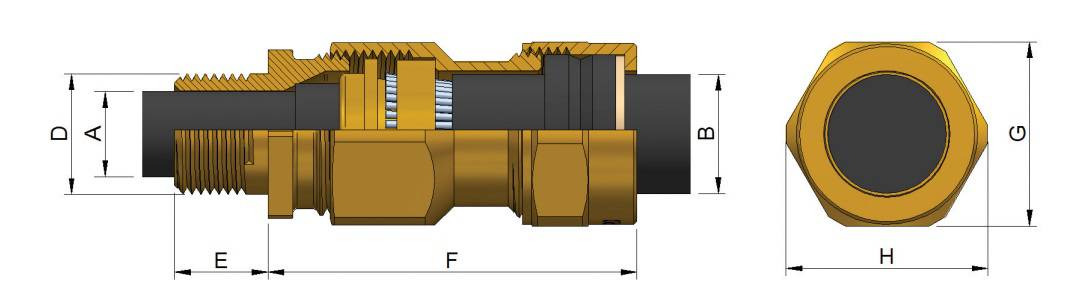

Prysmian Bicon E1W LSF Cable Gland Kits – Dimensions Illustration
