ENSTO PSS Copper Bars for Busbar Connectors
BUSBAR Connectors – COPPER BARS
Overhead Line Equipment
Low Voltage LV Overhead Lines

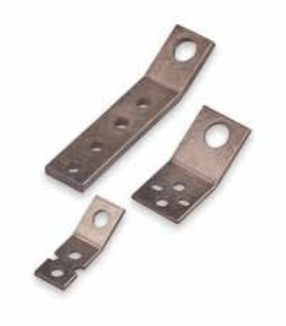

Copper bars are used together with ENSTO Busbar Connectors to connect copper or aluminium conductors to high voltage or low voltage transformer bushings.
It is important to brush and grease the aluminium connections before application. The flat copper bars are tin plated to reduce corrosion between the aluminium and copper.
ENSTO copper bars and connectors are delivered separately.
| ENSTO Order Code | GTIN | Busbar Cross Section mm² | Max Current A | Hole Diameter mm | For Connectors | Weight kg | Copper Bars per Pack |
| PSS10 | 6418677401138 | 150 | 400 | 14 | All except KG26 | 0.097 | 100 |
| PSS85 | 6418677401350 | 250 | 600 | 22 | KG6, KG16, KG41, KG43, KG44, KG20 | 0.21 | 50 |
| PSS85.5 | 6418677401367 | 250 | 600 | 14/22 | 0.266 | 50 | |
| PSS310 | 6418677401220 | 400 | 950 | 22 | KG26 | 0.414 | 25 |
| PSS127 | 6418677401183 | 150 | 400 | 14 | All except KG26 | 0.145 | 50 |
| PSS242 | 6418677401190 | 250 | 600 | 22 | All except KG26 & KG20 | 0.349 | 25 |
| PSS309 | 6418677401213 | 400 | 950 | 22 | KG26 & KG20 | 0.62 | 25 |
| PSS309.5 | 6418677406560 | 400 | 950 | 14/22 | 0.683 | 25 | |
| PSS242.5 | 6418677401206 | 250 | 600 | 14/22 | All except KG26 & KG20 | 0.393 | 25 |
