ENSTO SO260 Suspension Clamps IMWS
insulated messenger wire system
suspension Clamp
Overhead Line EquipmentÂ
Low Voltage LV Overhead Lines

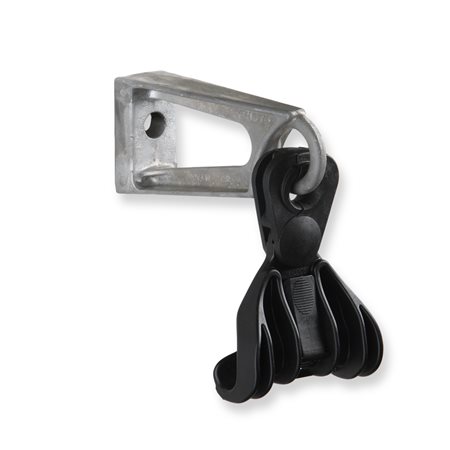

ENSTO SO260 suspension clamps are used for the suspensioning of LV ABC cables as part of an insulated messenger wire system (IMWS).
Suitable for all climatic conditions. Features a pre-installed bracket.
âž¡ Also Uninsulated Messenger Wire Systems – Suspension Clamps
ensto so260 suspension clamps
product selection table
| ENSTO Tension Clamp Order Code | GTIN | Bracket Included | Messenger mm² | Messenger Diameter mm² | SMFL kN | Weight (kg) | Clamps per Pack |
| SO260 | 6418677418914 | Yes | 25 – 95 | 8.5 – 15.5 | 12 | 0.37 | 20 |

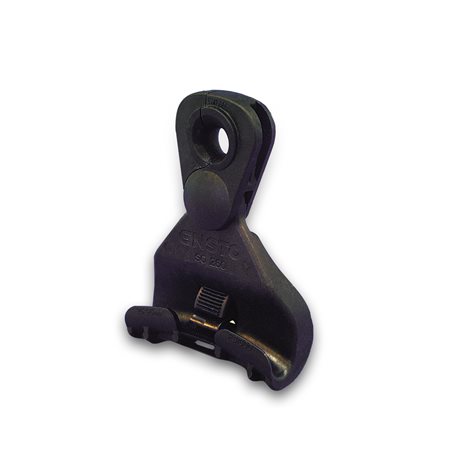

| SO260.01 | 6418677419058 | No | 25 – 95 | 8.5 – 15.5 | 12 | 0.16 | 50 |
| BRACKET ONLY | |||||||
| SO260.2 | 6418677419065 | – | – | – | 15.5 | 0.21 | 50 |
insulated wire messenger cable
An insulated messenger wire cable consists of between one and five weather resistant, high density or cross-linked, black, polyethylene insulated conductors which are twisted around an insulated aluminium alloy messenger with a typical tensile strength 300 N/mm².
The messenger, which is also the neutral conductor, takes all of the mechanical stress.
The cross section of the phase conductors can vary from 16 to 185 mm² to meet the load current, maximum acceptable voltage drop and short circuit current of the network.
