Euromold 750S1, 775S1 & 775T1 Bushings 11kV 33kV, 42kV

Euromold 750S1, 775S1 & 775T1

Euromold 750S1, 775S1 & 775T1 are bushings specified to terminate and connect medium/high voltage cables in the following voltage classes:

  • 6/10 (12kV)
  • 6.35/11 (12kV)
  • 8.7/15 (17.5kV)
  • 12/20 (24kV)
  • 12.7/22 (24kV)
  • 18/30 (36kV)
  • 19/33 (36kV)

Euromold 750S1, 775S1 & 775T1 bushings can be supplied with tee connector 784TB – all suitable for use with Interface E type bushings on SF6 gas-insulated switchgear.

Connector accessories include: dead-end receptacle, dead-end plug, stand-off plug and earthing plug for type B interfaces.

  • Manufacturer – Nexans Euromold
  • MV HV Equipment Bushing Connector – Interface E
  • Maximum Operating Current – 800A/1250A (Amps)
  • Voltage Classes – 12kV 24kV 36kV Maximum
  • Terminate & Connect Cables – Polymeric XLPE EPR
  • Applications – MV HV Switchgear, Transformers, Motors

➡ See complete range of Nexans Euromold Connectors

EUROMOLD 750S1, 775S1 & 775T1 Specification

Euromold equipment
bushing
type
Voltage
Um
(kV)
Current Ir
(A)
Dimensions (mm)
A B
750S1 36 800 75 235
775S1 36 1250 75 235
775T1 36 1250 221 378



Euromold 750S1, 775S1 & 775T1 Bushings 11kV 33kV, 42kV - Design

Euromold 750S1, 775S1 & 775T1 Bushings 11kV 33kV, 42kV – Design

EUROMOLD 750S1, 775S1 & 775T1

FIXINGS FOR BUSHINGS

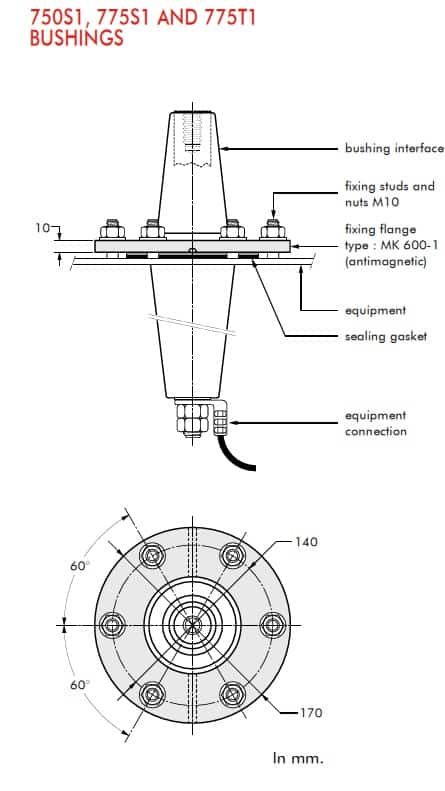

Euromold 750S1, 775S1 & 775T1 Fixings For Bushings
