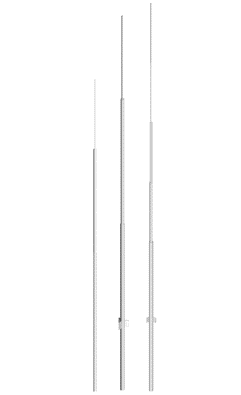

Free-Standing Interception Pole | Furse

Furse

Furse free-standing interception air rods are designed to protect rooftop mounted or exposed equipment, such as air conditioning units or photo-voltaic panels, from a direct lightning strike forming part of the Furse air termination network.

Furse free-standing interception air rods are easily constructed from a small range of components, including an interception pole. This creates a complete unit which, when connected to the air termination network, provides a highly versatile and effective lightning protection solution.

Furse Product Details

Interception poles manufactured from stainless steel 304 with aluminium interception tip
For construction of interception air rods from 3 to 10 m in height (support frame or concrete base also required)
Multi-component, stackable system with screw retention
Supplied with three securing brackets for base frame connection

Earthing Standards

IEC/BS EN 62561-2

Furse Free-Standing Interception Pole	Pole height (m)	Pole diameter (mm)	Pole construction	Weight each (kg)
912000-FU	3	Ø 10-42	2 piece	5.0
912001-FU	3.5	Ø 10-42	2 piece	5.5
912002-FU	4	Ø 10-42	2 piece	7.0
912003-FU	4.5	Ø 10-42	2 piece	9.2
912004-FU	5	Ø 10-42	2 piece	10.0
912005-FU	5.5	Ø 10-42	2 piece	10.6
912006-FU	6	Ø 16-60	3 piece	18.0
912007-FU	6.5	Ø 10-60	3 piece	19.0
912008-FU	7	Ø 16-60	3 piece	23.5
912009-FU	7.5	Ø 10-60	3 piece	26.0
912010-FU	8	Ø 16-60	3 piece	28.7
912011-FU	9	Ø 10-60	3 piece	30.5
912013-FU	10	Ø 10-60	3 piece	35.5
