Rod To Conductor Coupling

Rod To Conductor Coupling

Rod To Conductor Coupling

Furse

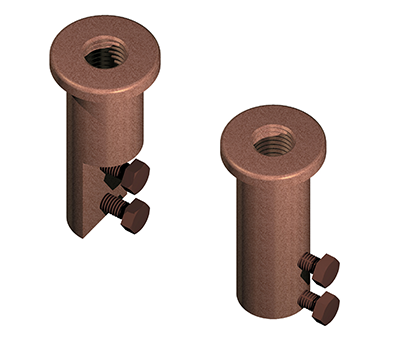

Furse rod to conductor coupling is manufactured from high quality copper or aluminium alloys, ensuring that a high level of conductivity is maintained throughout the air termination system.

Furse Product Details

  • Manufactured from high quality alloys of either copper or aluminium
  • Provides an effective connection between air rod and air termination tape or stranded air termination conductor
  • Tightening torque – 7 Nm (tape), 6 Nm (stranded)
Furse Rod To Conductor Coupling Air rod diameter (mm)  Thread size Conductor size (mm)  Air rod material Weight each (kg)
For use with flat tape conductor
CG600 Ø 15 M16 25 x 3 Copper 0.23
CG500 Ø 15 M16 25 x 3 Aluminium 0.08
For use with stranded conductor
CG705 Ø 15 M16 50-70 mm² Copper 0.25
CG710 Ø 15 M16 95 mm² Copper 0.25
