IEC 60840 Standards

Cable Joints | Terminations | Connectors | Bushings & Cables

The IEC 60840 Standards, created by the International Electrotechnical Commission, covers the requirements for LV MV HV Power Cables & Cable Accessories with operating voltages from 30kV (Um = 36kV) up to 150kV (Um = 170kV. Power cables and accessories in compliance with IEC 60840 are either single core or individually screened three-core cables. This Power Cable Standard is dedicated to applications which require high voltage electrical power transmission over longer distances, typically suitable for buried applications.

IEC 60840 Power Cable Applications

IEC 60840 High Voltage Cables are designed for fixed installations, with the purpose of high distribution of power. IEC 60840 compliant cables used in overhead lines or buried underground, cover key requirements to be suitable for these environments:

• Advanced material specifications to handle high voltages
• Construction requirements focused on managing electrical stresses
• Rigorous testing protocols, including partial discharge tests, ensuring long-term reliability
• Specifications for HV Cable Joints, Terminations & Connector accessories, suitable for high voltage environments

IEC 60840 Compliant Product Range

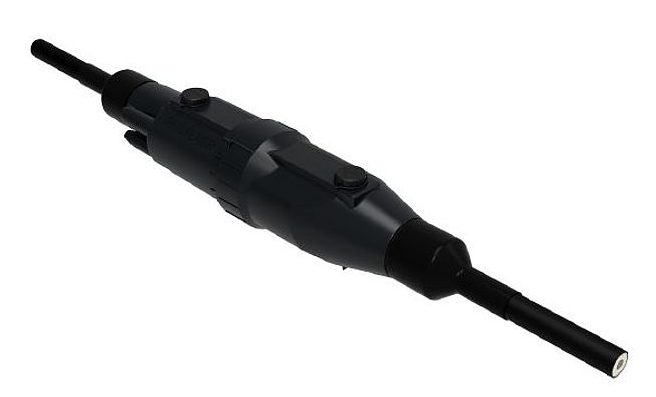

IEC 60840 | Pfisterer MSA145 132kV Cable Joints

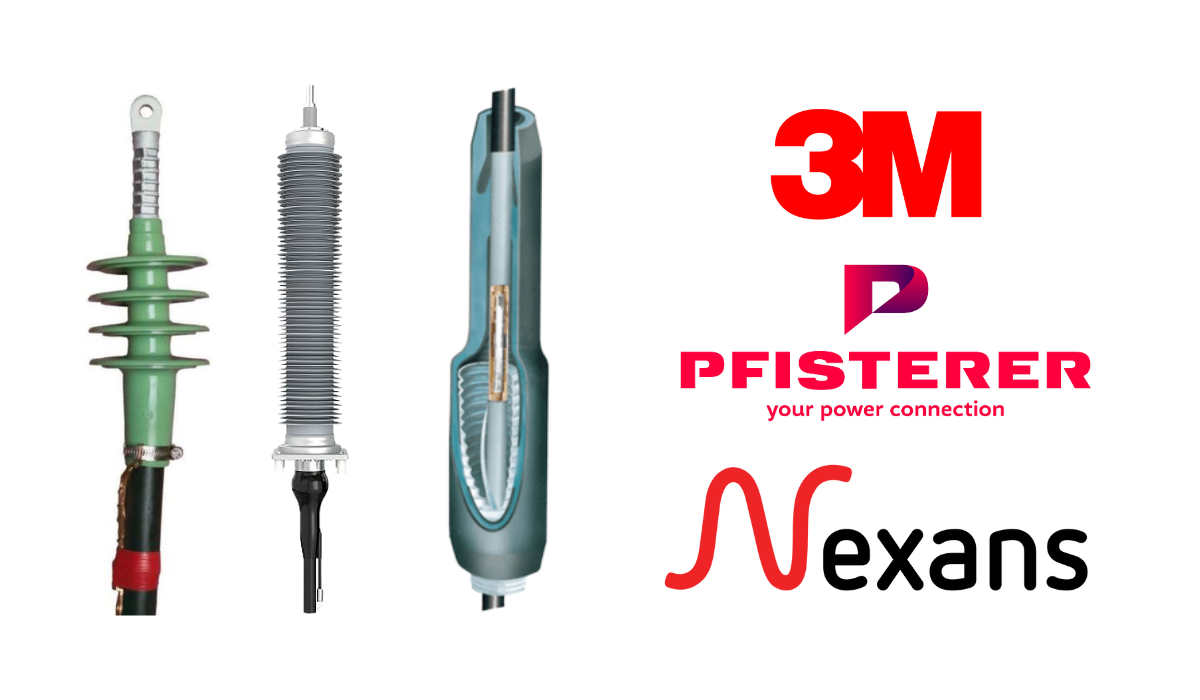

Thorne & Derrick stock and distribute a wide range of compliant IEC 60840 Standard Cables & Accessories, featuring market-leading manufacturers, such as Nexans Euromold, 3M, PFISTERER & Elcon Megarad. T&D UK & Exports provide competitive pricing, excellent customer service and fast worldwide shipping.

• Nexans AFN 52 Slip-On Cable Terminations 52kV MV HV
• PFISTERER DOC 123kV Dry Outdoor Composite Cable Terminations
• Elcon Megarad High Voltage Cable Terminations 66kV 72.5kV Heat Shrink
• 3M 66kV HV Cable Joints QS 3000 Cold Shrink
• PFISTERER MSA 145 132kV Cable Joints
• Nexans HV Termination Composite Insulator 66kV 132kV 150kV XLPE Cables
• 3M 66kV Cable Terminations QTEN Cold Shrink High Voltage

IEC Standard Cable & Acessories LV MV HV

IEC Standards (Power Cable Standards) are internationally recognized technical guidelines established by the International Electrotechnical Commission (IEC) to ensure the safety, reliability, and interoperability of electrical LV MV HV power cables, accessories and electronic devices and systems. These standards play a crucial role for technical requirements across borders, making sure that products meet high-quality benchmarks, are compatible with one another, and adhere to regulatory requirements. The scope of IEC Standards is broad, including a wide variety of technologies, from power generation, transmission, and distribution, to semiconductors, fibre optics, and renewable energy sources like solar and marine energy.

The development of IEC Standards involves a collaborative process where experts from various countries contribute to creating universally applicable guidelines. Some standards are developed jointly with the International Organization for Standardization (ISO) to further ensure consistency across industries and regions. These standards are adopted by countries around the world and often become national or regional benchmarks. In many cases, compliance with IEC Standards is used to certify that equipment, systems, or components meet internationally recognized safety and performance criteria.

IEC 60840 3M QTEN Cable Terminations & QS 3000 Cable Joints

3M QTEN Cold Shrink High Voltage Cable Terminations 66kV ➡

Compliant with IEC 60840, the 3M QTEN Cold Shrink High Voltage Cable Terminations 66kV is designed for single core polymeric insulated power cable systems (XLPE EPR) with copper wire screen, copper tape screen and lead sheath up to 72.5kV Umax voltage class.

3M QTEN Cold Shrink High Voltage Cable Terminations 66kV is equipped with a cold shrink body with integrated silicone elastomeric insulation and outer silicon rain sheds with a separate cold shrink stress control PST. The HV 3M QTEN cable termination kit also includes silicone cold shrink tubes for sealing onto the cable sheath and the cable lugs.

3M QS 3000 Cold Shrink High Voltage Cable Joints 66kV ➡

Compliant with IEC 60840, the 3M QS 3000 Cold Shrink High Voltage Cable Joints 66kV is designed for inline HV cable joints up to 72.5kV Umax voltage class. 66kV single core polymeric power cables with copper wire screen and lead sheath can be jointed and connected using 3M Cold Shrink Cable Joints 66kV with copper or aluminium conductors up to 1200sqmm.

Thorne & Derrick distribute the most extensive range of IEC 60840 Compliant  MV HV Medium & High Voltage Cable Joints, Terminations & Connectors from manufacturers including 3M, Prysmian, Nexans Euromold, Elastimold, Pfisterer CONNEX & SEANEX and Shrink Polymer Systems.

Heat shrink, cold shrink, push-on and slip-over cable accessories enable the jointing, terminating and connection of 11kV-33kV and 66kV-132kV cables to oil, air or gas insulated switchgear, transformers, motors and overhead lines distributing electricity at medium/high voltages.

Thorne & Derrick hold large stocks of 11kV 33kV 66kV Joints & Terminations suitable for XLPE, PILC and EPR cables, in both heat shrink and Cold Shrink technologies, to service the medium/high voltage power cable accessory requirements of UK and international customers.
