22kV 24kV Cold Shrink Cable Joints For MV HV Cables - Nexans 24CSJ

22kV 24kV Cold Shrink Cable Joints For MV HV Cables – Nexans 24CSJ

Nexans 24CSJ is a cold shrink cable joint suitable for jointing MV HV single core polymeric cable with copper wire screen to be laid in air or directly buried underground – conductor material copper or aluminium with a maximum operating voltage of 24kV. The cold-shrinkable cable joint is fully screened and fully submersible.

All the joint bodies of the Nexans 24CSJ range are tested for AC withstand prior to leaving the factory and meet the requirements of CENELEC HD 629.1.

  • 6/10 (12) kV
  • 6.35/11 (12) kV
  • 8.7/15 (17.5) kV
  • 12/20 (24) kV
  • 12.7/22 (24) kV

Nexans 24CSJ Cold Shrink Cable Joint

1. Extruded triple layer EPDM rubber body

2. Two layer plate with a semiconductive and a field control mastic layer

3. Overall protective EPDM cover

4. Field control mastic

5. Water sealing mastic

Nexans 24CSJ Cold Shrink Cable Joint Construction

Nexans 24CSJ Cold Shrink Cable Joint Construction

6. Copper stocking

7. Self-adhesive copper tape

8. Traceability tag

9. Conductor connector (not included in the standard kit)



NEXANS 24CSJ COLD SHRINK CABLE JOINT

Kit Contents

Nexans 24CSJ cable joint kit contains:

  • 1 x 24CSJ Cold-shrinkable joint
  • 1 x Two-layer plate
  • 2 x Field control mastic strip or plate
  • 2 x Self-adhesive copper tape
Nexans 24CSJ Kit Contents

Nexans 24CSJ Kit Contents



Nexans Cold-shrinkable straight joint type L (mm) Diameter over outer sheath (mm) Diameter over core insulation (mm) Conductor sizes for 12kV (mm2)
(for information only)
Conductor sizes for 24 kV (mm2) (for information only)
Max Min Max Min Max Min Max
24CSJ-1 750 46 18 33 95 300 35 185
24CSJ-2 750 46 23 38 185 300 95 300
24CSJ-3 850 57 30 54 400 630 240 630

Nexans 24CSJ

Ordering Information

Nexans
Part Ref
Conductor sizes for 24 kV (mm2) (for information only) Diameter over
core insulation
(mm)
Diameter over
outer sheath
(mm)
35 50 70 95 120 150 185 240 300 400 500 630
24CSJ-1 24CSJ-1           18 – 33 46 max
24CSJ-2       24CSJ-2       23 – 38 46 max
24CSJ-3               24CSJ-3 30 – 54 57 max

Example: The copper wire screened cable is 24 kV, 120 mm² stranded aluminium with a diameter over core insulation of 25.3 mm. Order a 24CSJ-2 cold-shrinkable joint kit-45.

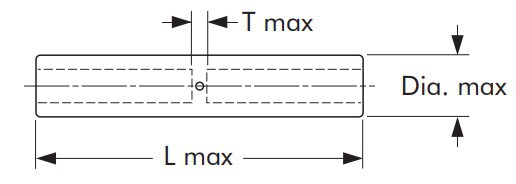

Joint
Type
L max
(mm)
Dia max (mm) T max
(mm)
24CSJ-1 150 35 8
24CSJ-2 150 35 8
24CSJ-3 280 54 15

Nexans 24CSJ - Dimensions

All types of conductor connectors can be used. The conductor connectors must be within the dimensions specified.




Nexans 24CSJ Cold Shrink Cable Joint Cable Preparation

  1. Clean the outer sheaths of both cables over approx. 1.5 m
  2. Remove the outer sheaths for a distance of 235 mm from cable ends
  3. Shorten the copper wire screens up to a point 65 mm from the outer sheaths
  4. Wrap the self-adhesive copper tapes around the outer sheaths flush with the ends.
  5. Fold the screen wires back over the copper tapes and secure them with a wrap of adhesive tape to avoid sharp edges. IMPORTANT : the total length of screen connection must not exceed 70 mm.
Nexans 24CSJ Cold Shrink Cable Joint Cable Preparation

Nexans 24CSJ Cold Shrink Cable Joint Cable Preparation

A. Cable with bonded or easy strip semi-conductive screen

Cable with bonded or easy strip semi-conductive screen

Cable with bonded or easy strip semi-conductive screen

  1. Remove the extruded semi-conductive screen to a point 45 mm from the outer sheath
  2. Bare the conductors for a distance C + 10 mm (C = 1/2 of the connector length)
  3. THOROUGHLY CLEAN CORE INSULATION. clean

B. Cable with fabric tape screen

Cable with fabric tape screen

Cable with fabric tape screen

  1. Remove the fabric tape to a point 45 mm from outer sheath
  2. CAREFULLY REMOVE THE GRAPHITE COATING WITH AN APPROPRIATE SOLVENT
  3. 3.Apply one layer of semi-conductive tape to a point 45 mm from the outer sheath
  4. 4.Bare the conductors for a distance C + 10 mm (C = 1/2 of the connector length)
Cable with fabric tape screen

Cable with fabric tape screen

  1. As a protection, wrap a few turns of adhesive tape around the conductor ends
  2. 2.Slide the joint housing over one cable end. Make sure the end with cable tie goes first over the cable
