A2EXP16 Hazardous Area Cable Glands – Prysmian KM495-51

A2EXP Cable Glands – Hazardous Area Exd IIC / Ex e II (Prysmian KM495)

A2EXP16 Hazardous Area Cable Glands

Prysmian KM495-51 (A2EXP16) A2EXP hazardous area cable glands are certified ΙΙ 2GD, Ex e ΙΙ & Ex d ΙΙC under ATEX directive 94/9/EC suitable for circular unarmoured cables with extruded oversheath providing high performance in high temperatures in deluge and IP68 conditions.

Prysmian KM495-51 are suitable for most climatic conditions – weatherproof, waterproof and deluge proof and have a service temperature range –50°C to +200°C.

Prysmian A2EXP16

Hazardous Area Cable Glands

Technical Specification

ATEX Cable Glands

Manufacturer: Prysmian
Brand: Bicon
Order Code: KM495-51 (A2EXP16)
Cable Gland Size: A2EXP16
Cable Dimensions Ø (B): Min 3.5mm Max 8.5mm
Entry Thread (D) : M16×1.5
Thread Length (E) : 15mm
Protrusion Length (F): 36mm
Hexagon A/F (G): 22mm
Hexagon A/C (H): 24.9mm
Nickel Plated Version: Prysmian KM495-51 (A2EXP16)
➡ More Hazardous Area Cable Glands

A2EXP Cable Glands – Hazardous Area Exd IIC / Ex e II (Prysmian KM495)

Prysmian

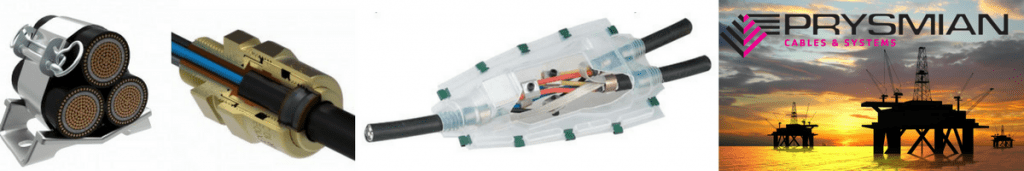

Thorne & Derrick distribute the complete range of Prysmian Cable Joints, Cleats & Glands for LV MV HV applications in both industrial and hazardous area installations including 11kV/33kV. The Prysmian Multicleat manufactured from corrosion resistant 316 stainless steel is recommended for cleating cables in the oil, gas and petrochemical industries.
