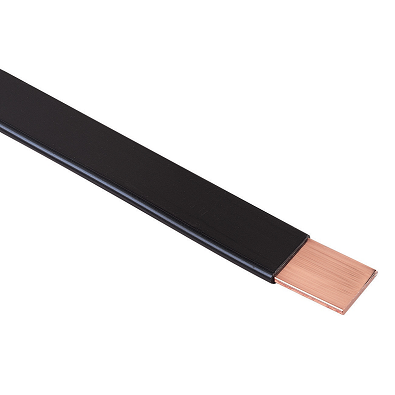

PVC Covered Copper Tape | Furse

PVC Covered Copper Tape

Furse

Copper is used for most installations due to its high conductivity, anti-corrosive properties, and its flexibility for use in-air, in-earth and in-concrete forming part of the Furse range of conductors.

Furse PVC covered copper tape is available in a range of sizes and colours to meet differing current ratings (see product information table below).

Every precaution has been taken to ensure the UV stability of PVC coverings but, as with all plastics, colour variation will occur over time.

Furse Product Details

Highly conductive annealed copper tape
All PVC covered copper tape sold in full coil lengths only

Earthing Standards

BS EN 13601 (copper)
BS 5252 (PVC colour, *Green to BS 6746C)

Furse PVC Covered Copper Tape	Conductor size (mm)	Standard coil size (m)	Colour range	Weight per metre (kg)
TC100	12.5 x 1.5	50	Black	0.21
TC105-FU	25 x 3	25	Black	0.77
TC105/50	25 x 3	50	Black	0.77
TC110	25 x 3	25	Green*	0.77
TC110/50	25 x 3	50	Green*	0.77
TC115-FU	25 x 3	25	Grey	0.77
TC115/50	25 x 3	50	Grey	0.77
TC120-FU	25 x 3	25	Stone	0.77
TC120/50	25 x 3	50	Stone	0.77
TC125-FU	25 x 3	25	White	0.77
TC125/50	25 x 3	50	White	0.77
TC130	25 x 3	25	Brown	0.77
TC130/50	25 x 3	50	Brown	0.77
TC140-FU	25 x 6	40	Green*	1.53
TC145	50 x 6	20	Green*	2.95

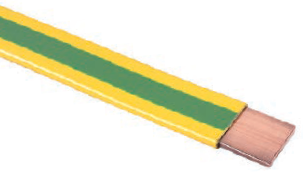

Green & Yellow PVC Insulated Copper Tape

Copper is used for most installations due to its high conductivity, anti-corrosive properties, and its flexibility for use in-air, in-earth and in-concrete.

Furse green & yellow PVC insulated copper tape is available in a range of sizes to meet differing current ratings (see product information table below).

Every precaution has been taken to ensure the UV stability of PVC coverings but, as with all plastics, colour variation will occur over time.

Furse Product Details

Highly conductive annealed copper tape
All PVC insulated copper tape sold in full coil lengths only

Earthing Standards

BS EN 13601 (copper)
BS 6746C

Green & Yellow PVC Insulated Copper Tape	Conductor size (mm)	Standard coil size (m)	Colour range	Weight per metre (kg)
TC111-FU	25 x 3	25	Green & Yellow	0.79
TC111/50	25 x 3	50	Green & Yellow	0.7

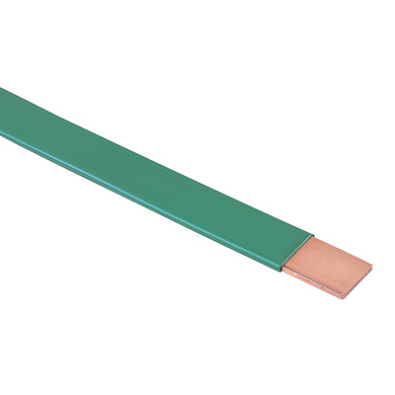

LSOH Covered Copper Tape

LSOH Covered Copper Tape

Copper is used for most installations due to its high conductivity, anti-corrosive properties, and its flexibility for use in-air, in-earth and in-concrete.

Furse LSOH covered copper tape is available in a range of sizes to meet differing current ratings (see product information table).

Furse Product Details

All LSOH covered copper tape sold in full coil lengths only

Earthing Standards

BS EN 13601 (copper)
BS 6746C (LSOH colour)

LSOH Covered Copper Tape	Conductor size (mm)	Standard coil size (m)	Colour range	Weight per metre (kg)
TC910	25 x 3	25	Green	0.77
TC910/50	25 x 3	50	Green	0.77
TC940	25 x 6	40	Green	1.53
TC980	25 x 3	20	Green	2.95

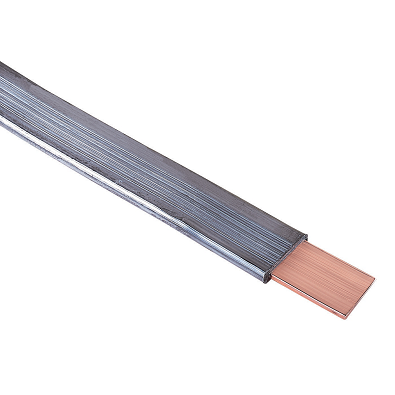

Lead Covered Copper Tape

Lead Covered Copper Tape

Copper is used for most installations due to its high conductivity, anti-corrosive properties, and its flexibility for use in-air, in-earth and in-concrete.

Furse lead covered copper tape is available in a range of sizes to meet differing current ratings (see product information table below).

Furse Product Details
