Seaward PV150 Solar PV TesterS

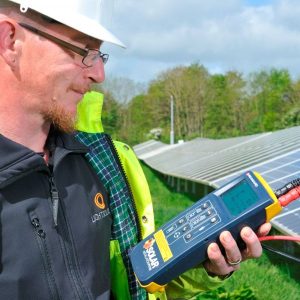

The Seaward PV150 Solar PV Testers allows electrical safety and performance verification of photovoltaic installations in a safe and easy-to-use device. The Seaward PV150 kit features a safe test connection to safely test energised arrays. These Seaward Testers can also wirelessly capture and record real time irradiance, ambient temperature and PV module temperature measurements from the Solar Survey 200R.

Providing the ideal solution to Solar Cables testing, the Seaward PV150 can be applied with Thorne & Derrick’s extensive range of LV MV HV Solar Cables, Accessories, Substation & Electrical Equipment, including market-leading Solar Cables, such as:

Seaward | Electrical Safety Test Equipment

Thorne & Derrick distribute the most extensive range of Electrical Safety Equipment, including electrical safety testing equipment from Seaward to ensure safe working and protection against electrocution during the installation, jointing, terminating and testing of medium/high voltage power cables and electrical equipment including switchgear and transformers. Seaward focus on safety with their portfolio of portable appliance testers, Solar PV Testers and medical device test equipment.

Arc Flash Clothing Protection PPE

Seaward PV150 Solar PV TESTERS Specification

The fast and comprehensive Solar PV Testers can save time by using a number of different measuring tools in the field. 200 datasets can be stored on the Seaward PV150 and downloaded to the SolarCert software so you can create professional reports for your customers.

Seaward PV150 Solar Tester Kit Contents Seaward PV150 | Solar Cable & PV Installation Tester 1000V

Seaward PV150 Solar PV Tester installation instrument.
2 x MC4 test lead adaptors.
2 x Combiner box test probes and detachable alligator clips (MC4).
2 x Test leads, with test probes and detachable alligator clips (4mm).
AC/DC current clamp.
Solar Survey 200R irradiance meter and temperature probe.
Solar Survey 200R mounting bracket.
Rugged carry bag.
Quick Start Guide.
UKAS Calibration Certificate (PV150).
SolarCert PC Software.

Seaward Electrical Testing Voltage Detectors

Solar Utility Pro | Seaward LLT | Seaward PV200 | Seaward AGL-5 | Seaward PV150

Seaward pv150 Technical Specifications

The following tables include a further insight on the Seaward PV150 product, including Open Circuit Voltage Measurement, Short Circuit Current Measurement and Dimensions & Weight for the Solar PV Testers range:

Open Circuit Voltage Measurement (PV Terminals)
Display Range	0.0VDC – 1000VDC
Measuring Range	5.0VDC – 1000VDC
Resolution	0.1VDC maximum
Accuracy	± (0.5 % + 2 digits)
Enunciators	DC voltage polarity correct or reversed

Short Circuit Current Measurement (PV Terminals)
Display Range	0.00ADC – 15.00ADC
Measuring Range	0.50ADC – 15.00ADC
Maximum Power	10kW
Resolution	0.01ADC maximum
Accuracy	± (1% + 2 digits)

Instrument Dimensions and Weight
Weight	0.95kg / 2.1lb
Dimensions	26.4 x 10.7 x 5.8cm / 10.4 x 4.2 x 2.3”
Display	Custom LCD with backlight
Power Source	6 x 1.5V AA cells
Battery life	>1000 test sequences
Auto power down	User programmable
Onboard memory	Up to 200 complete test datasets

See Datasheet for further technical information.
