Solar Cable Clips | PV Solar Cable Support for Panel Modules

Solar Cable Clips Panduit

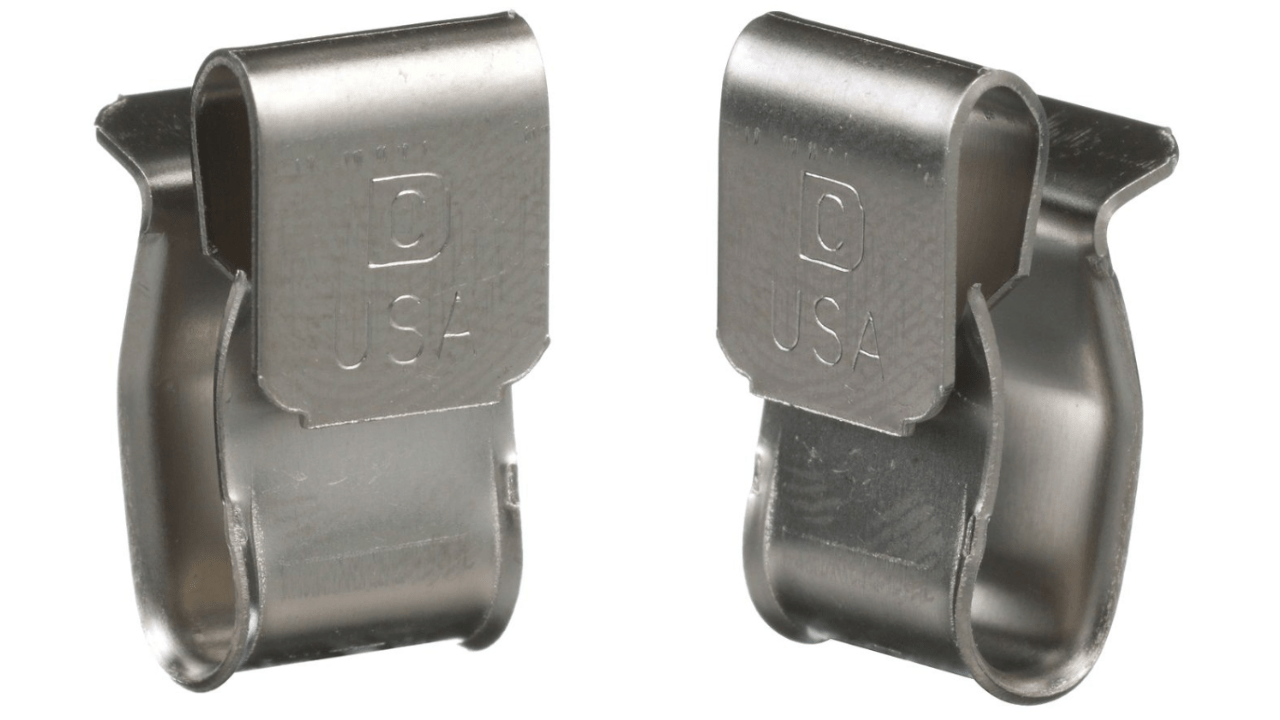

Solar Cable Clips | Metal Solar Edge Clips

Panduit PV Solar Cable Support for Panel Modules


Panduit offer a range of stainless steel metal edge clips and cable hangers for solar applications. The solar cable clips can be used to support panel modules and can be installed on a range of different panel thickness.

The metal solar edge cable clips can accommodate up to 4 wires with a range of different diameters. As renewable energy increases in the form of solar, it is critical that solar farms are equipped with the safest and most reliable infrastructure products.

Panduit solar energy solutions provides robust end-to-end solutions that offer maximum reliability, productivity, and safety. The Panduit solar cable clips improve installation efficiency in the field and offer a robust solution that can withstand the UV environment.

Thorne & Derrick partner with Panduit to bring the most innovative renewable energies solutions to the market.

Panduit Solar Energy Solution


Cable Clips For Solar Industry

Features & Benefits

  • Stainless Steel – Ideal for PV cable management in Solar Construction. Stainless Steel is highly durable and is suitable for harsh environments
  • Certifications – Selected metal edge clips are cULus Listed to UL 1565 under File No. E136577 to meet installation application requirements
  • Ease of Installation – No tools required Low profile design allows the clips to be installed on the panel prior to shipment with no concern on clip becoming disengaged or preventing panels from laying flat (for MEC100-series, not applicable for MEC125 and MEC250)
  • Mounting Options – Options for 1 to 2 PV wires for routing wires parallel or perpendicular with reference to the solar frame 4-wire version clips provide an option for routing up to 4 wires parallel with reference to the solar frame

Solar Application Examples

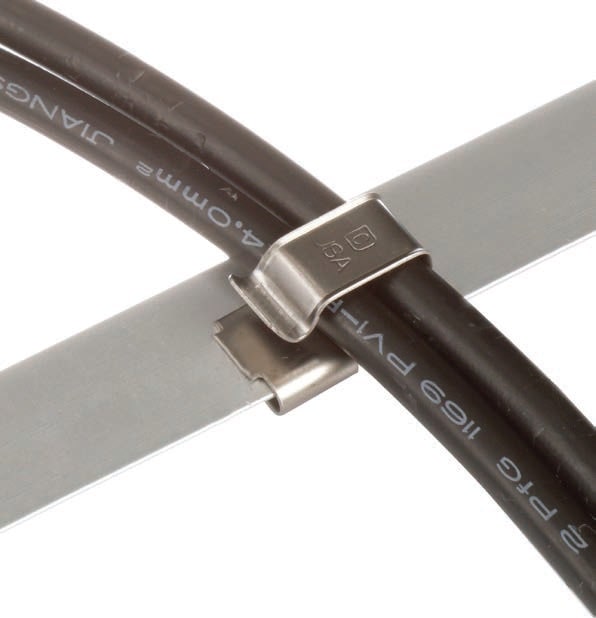

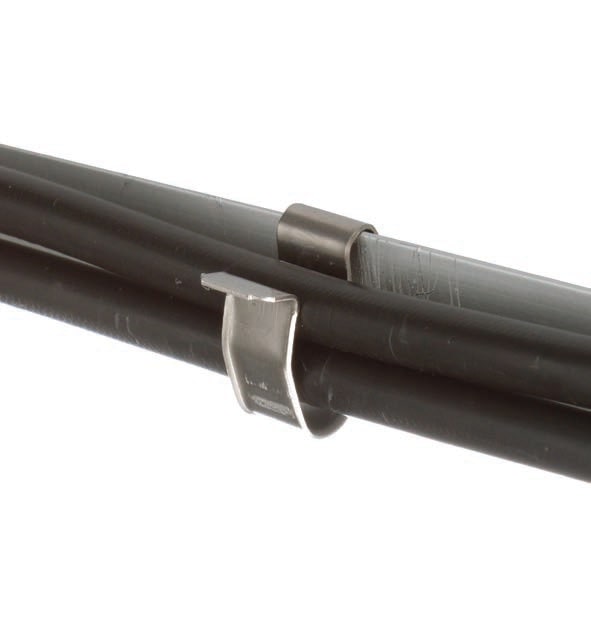

Solar Cable Clips | Parallel Cable Orientation Solar Cable Clips | Perpendicular Cable Orientation
Parallel Cable Orientation Perpendicular Cable Orientation

Solar power technology has advanced impressively while also becoming less expensive. Getting PV panels installed is a perfect way to generate electricity without negatively impacting the environment.

Panduit conducts extensive testing to ensure product performance and under conditions that include high wind, high vibration, intense UV exposure, extreme temperatures, and corrosive atmospheres.


Technical Specification

MEC100-PV-C MEC100-2PV-C MEC125-4PV-C MEC250-4PV-C
Application For routing PV wires along solar panel modules Solar
Note Clips accommodate one to two 12 gauge or USE-2 PV wires for routing parallel to the panel edge Clips accommodate one to two 10 gauge PV wires for routing parallel to the panel edge N/A
Product Type Wire Clip
Body Material Stainless Steel
Colour Silver
Environment Indoor/Outdoor
Maximum Bundle Diameter (In.) 0.24 0.3 0.295
Maximum Bundle Diameter (mm) 6.1 7.6 7.5
Maximum Compatible Panel Thickness (In.) 0.098 0.125 0.25
Maximum Compatible Panel Thickness (mm) 2.5 3.2 6.4
Mount Method Edge Clip
Overall Height (In.) 0.73 1.37
Overall Height (mm) 18.5 34.8
Overall Length (In.) 0.6 0.69
Overall Length (mm) 15.2 17.5
Overall Width (In.) 0.38 0.5
Overall Width (mm) 9.7 12.7
Resistance Properties Weather Resistant UV
Standards Met cULus 1565 (E136577), RoHS Compliant RoHS Compliant
Part Features Rolled Edges, Parallel Cable Orientation No tools required, cable orientation is parallel to panel edge, for use with 1000V Solar Wires

Ordering Information

Metal edge clips that are oriented to route wires parallel to outer edge of the solar panel.

Part Number Panel Thickness Recommended for use with 1000V Solar Wires Certification to cULus (UL 1565) Std. Pkg. Qty

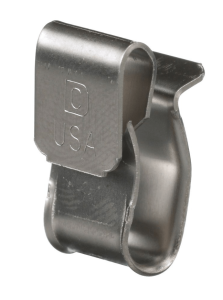

MEC100-PV-CMEC100-PV-C Solar Cable Clips .051″ – .098″
[1.3 – 2.5 mm]
1 to 2 PV Wires
12 Gauge (4mm²),
or USE-2 Wires
YES 100

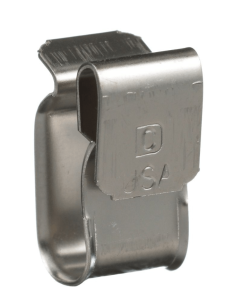

MEC100-2PV-C
MEC100-2PV-C Solar Cable Clips
.051″ – .098″
[1.3 – 2.5 mm]
1 to 2 PV Wires
10 Gauge (6mm²)
YES 100

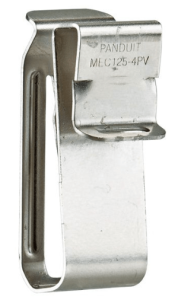

MEC125-4PV-CMEC125-4PV-C 051″ – .125″
[1.3 – 3.2mm]
1 to 4 PV Wires,
12 – 10 Gauge
(4 – 6mm²)
NO 100
MEC250-4PV-C
MEC125-4PV-C
.125″ – .250″
[3.2 – 6.4mm]
1 to 4 PV Wires,
12 – 10 Gauge
(4 – 6mm²)
NO 100

Metal edge clips that are oriented to route wires perpendicular to outer edge of the panel

Part Number Panel Thickness Recommended for use with
1000V Solar Wires
Certification to cULus (UL 1565) Std. Pkg. Qty.

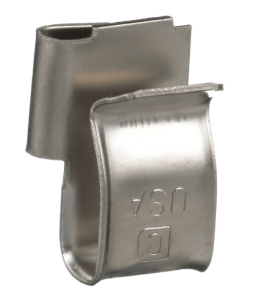

MEC100-90-PV-CMEC100-90-PV-C Solar Cable Clips .051″ – .098″
[1.3 – 2.5mm]
1 to 2 PV Wires
12 Gauge (4mm²),
or USE-2 Wires
YES 100

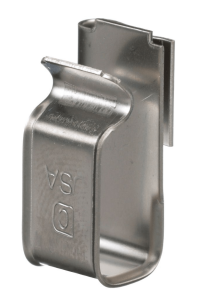

MEC100-90-2PV-C
MEC100-90-2PV-C
.051″ – .098″
[1.3 – 2.5mm]
1 to 2 PV Wires
10 Gauge (6mm²)
YES 100
