Spindle Bars For Cable Drum Lifting Jacks

Spindle Bars For Cable Drum Lifting Jacks
Drum Spindles & Locking Collars for Cable Drum Jacks
Spindle bars are suitable for cable drum lifting and form part of the SEB cable jack range. All spindle bars can be provided with locking collars on request and are used in conjunction with the SEB manufactured range of cable jacks for the safe and reliable handling of cable drums containing LV MV HV cables.
DS4 Spindles
6 Tonne Drum Spindle Tubular 4′
- Maximum Cable Drum Weight 6 Tonne
- Spindle Diameter 50mm
- Length 1219mm
- Construction Tubular Steel
- Spindle Bar Weight 12Kgs
- Recommended for use with SJ3 Screw Jacks
- SC4/6 Locking Collars (Pair)
DS6 Spindles
6 Tonne Drum Spindle Tubular 6′
- Maximum Cable Drum Weight 6 Tonne
- Spindle Diameter 50mm
- Length 1800mm
- Construction Tubular Steel
- Spindle Bar Weight 18Kgs
- Recommended for use with SJ6 Screw Jacks & HJ3 Hydraulic Jacks
- SC4/6 Locking Collars (Pair)
DS12 Spindles
12 Tonne Drum Spindle TubularÂ
- Maximum Cable Drum Weight 12 Tonnes
- Spindle Diameter 76mm
- Length 2100mm
- Construction Tubular Steel
- Spindle Bar Weight 53Kgs
- Recommended for use with SJ8 Screw Jacks & HJ6 and HJ10 Hydraulic Jacks
- SC12 Locking Collars (Pair)
DS20 Spindles
20 Tonne Drum Spindle TubularÂ
- Maximum Cable Drum Weight 20 Tonne
- Spindle Diameter 100mm
- Length, 2900mm
- Construction Tubular Steel
- Spindle Bar Weight 100Kgs
- Recommended for use with JT20 & JT20L Jack Towers
- SC20 Locking Collars (Pair)
DS30 Spindles
30 Tonne Drum Spindle TubularÂ
- Maximum Cable Drum Weight 30 Tonne
- Spindle Diameter 127mm
- Length 4000mm
- Construction Tubular Steel
- Spindle Bar Weight 200Kgs
- Recommended for use with JT30L Jack Towers
- SC30 Locking Collars (Pair)
DS40 Spindles
40 Tonne Drum Spindle TubularÂ
- Maximum Cable Drum Weight 40 Tonne
- Spindle Diameter 140mm
- Length 4000mm
- Construction Tubular Steel
- Spindle Bar Weight 240Kgs
- Recommended for use with JT40L Jack Towers
- SC40 Locking Collars (Pair)

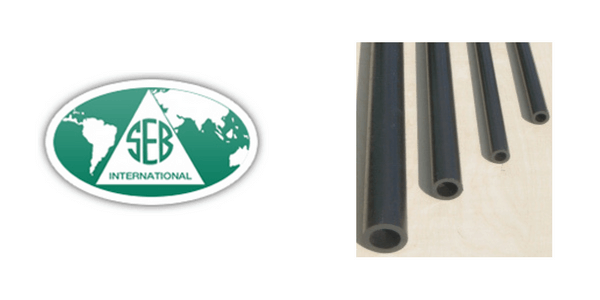

Spindle Bar For Cable Jacks
