STRUTSLAYR The Strongest Most Powerful Strut Channel Cutter

STRUTSLAYR | Stocked by Thorne & Derrick

The NEW RIDGID STRUTSLAYR™ strut channel cutter is the latest accessory that makes the world’s most popular press tool even more valuable.

Strut channels are used in a wide variety of applications such as Plumbing, HVAC, Fire Protection, Electrical and Solar for structural support of pipes, ventilation/air-conditioning/sprinkler systems as well as cable trays and solar panels. Before they are installed, each strut channel needs to be cut and deburred; this activity can be a very time-consuming task when it is done with traditional cutting tools like an angle grinder, cold cutting and recip saw.

Introducing StrutSlayr

STRUTSLAYR Strut Shear Head attaches to, and is compatible with, RIDGID 32kN press tools – delivering excellent shop quality with a burr-free cut in less than 5 seconds.

The Strongest Most Powerful Strut Channel Cutter

The StrutSlayr offers a shearing operation, where the material gets displaced rather than directly cut. This means that there are no grinding or sawing sparks with this Strut Cutter – just a clear consistent SHEAR cut with a pull of a trigger.

The RIDGID® STRUTSLAYR™ delivers shop quality, burr-free strut channel cuts on the jobsite in 5 seconds or less. Compatible with RIDGID 32kN press tools, the STRUTSLAYR strut cutter offers a clean, consistent cut with a simple pull of a trigger.

*NOTE: Press tools are not included. Not compatible with RIDGID 320-E or CT-400.

STRUTSLAYR Strut Channel Cutter FEATURES

Fab Shop Quality: Burr-free cuts eliminate the need for extra filing
Increased Efficiency: Clean, consistent cuts in 5 seconds or less
Shear Cut: no grinding or sawing sparks
Portable: Easy to move around the job site and mounts to RIDGID TRISTANDs
Built-in Measuring Guide: allows accuracy of cut on job site

Choose from the RIDGID STRUTSLAYR™ kit 64053 or 64058 depending on die shear size. Available from stock for fast delivery.

Request a UK demo of the RIDGID STRUTSLAYR today.

StrutSlayr Specification

Portability – The StrutSlayr Head weighs only 5.4 kg and is supplied in a sturdy and compact blow-molded case for easy and safe transportation to any jobsite. Cut everywhere, anywhere!

Long-lasting– Approximately 140 cuts can be expected from a single full battery charge with StrutSlayr Head mounted.

Flexibility – StrutSlayr is highly versatile. It can be easily used on a workbench, on a RIDGID TRISTAND, on the ground or even on a platform.

Accuracy – A built-in measuring guide is displayed on the RIDGID StrutSlayr to accurately measure the size of the strut that needs to be cut. The integrated Strut Support prohibits deformation of the Strut channel and provides a straight cut every time. The strut channel cutter offers reduced risk of sparking when compared to grinders and chop saws and still manages to produce a clean, consistent cut.

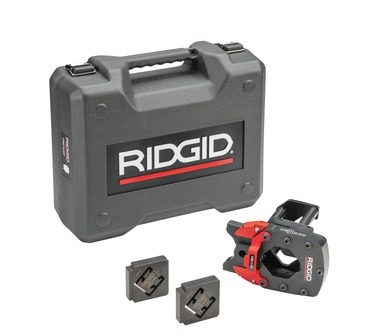

Size & wall-thickness – StrutSlayr strut cutter features field-replaceable dies and it is supplied with either a 41×41 or 21×41 shearing die, covering the most important two strut channels sizes. StrutSlayr can be used for cutting Strut Channels with wall-thickness up to 2.5 mm. A minimum amount of 2000 cuts can be expected from each new die set. Efficiency never seen before!

Press Tool Compatibility – RIDGID® Standard Series 32kN Press Tools (such as the RIDGID RP 350-B Tool Kit)

*Not for use with RIDGID 320-E and CT-400 Press Tools

For the full technical specification, visit Strut Shear Head
