Subsea Cable Protection Systems

♦ Republished by Chris Dodds

with Kind Permission of Greg Campbell-Smith ((Director Sales and Business Development at First Subsea)

Subsea Cables





First Subsea is the world’s leading developer of subsea connection technology, supplying, installing and decommissioning.

Subsea power cables on offshore wind farms are typically protected by means of burial.

This is a well proven means of cable protection used in other offshore industries.

However, at either end of offshore wind array cables they transition from burial, up through the water and into the wind turbine foundation. This free spanning section of cable is susceptible to what can be substantial wave and current loads.

These loads introduce movement and bending into the subsea cable which, without cable protection, can lead to over-bending, over-tensioning, fatigue and abrasion damage.

This exposed subsea cable is traditionally ‘protected’ by means of a relatively expensive and complex proprietary Cable Protection System (CPS).

Our 2nd Article on Subsea Cable Protection Systems focuses on Subsea Cable Protection & Laying Costs.

As part of our product awareness feature on Cable Protection Systems we look at the time taken to install, focusing on the critical path timings, that impact on the installation costs.

Cable lay construction vessels command market rates in excess of €150,000 a day, due to their ability to reel, carry and deploy cable using dynamic positioning, this figure excludes crew/fuel.

Most large cable lay vessels have the ability to pre-assemble and prepare the cable protection system on the runway off the critical path as they perform other operations, so the deck preparation times which take on average an hour have been discounted.

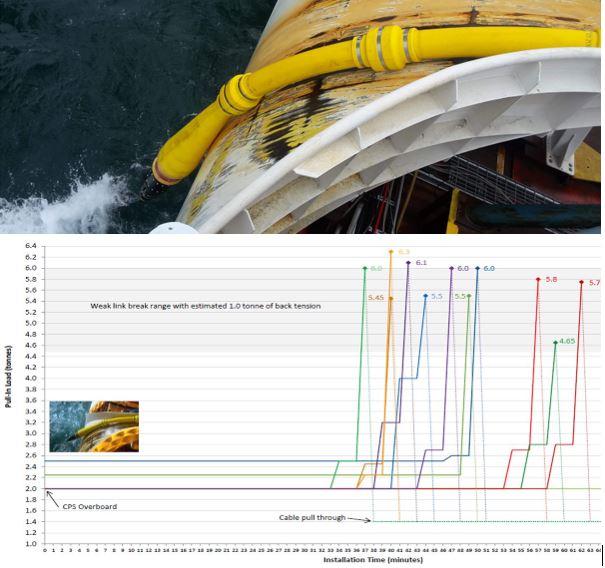

The critical path clock for the CPS product starts as it is deployed over the chute located at the stern of the vessel. The graph shown below shows the times for a number of cable pull ins with a crew new to our system. Our quickest time was 38 minutes from overboarding to connection.

After the first few pull-ins the team averaged 45 mins. From first hand observations on another CPS we saved over an 1hr on critical path.

Saving an hour on critical path, could provide a saving of €7,000, small change you may think. Think again Typically 150 CPS per project could save over €1,000.000 When selecting CPS consider the overall CAPEX not just the product cost.

Subsea Cables Protection | Further Information



➡ If you would like a copy of the report, please contact Chris Dodds [email protected]

Subsea Cable Protection & Laying Costs
