UKPN Polylam Cable Jointers Tool Kit – Alroc CPM-GB1

Published 10 May 2018

uploaded by Chris Dodds - Thorne & Derrick, Sales & Marketing Manager

UKPN

Cable Jointing Tools For LV MV HV Cables

Thorne & Derrick are Specialist Distributors of LV, MV & HV Jointing, Earthing, Substation & Electrical Eqpt approved for use by UKPN on their medium/high voltage underground cables and overhead lines network – including complete range of cable jointing tools approved by UKPN available from stock for the removal of sheath, screen and insulation from UKPN Polylam specification cables.

Customised for UKPN the jointers tool sets are used to prepare Polylam medium/high voltage cables prior to the installation of heat shrink joints, terminations or connectors.

Order Code From Thorne & Derrick: ALROC CPM-GB1

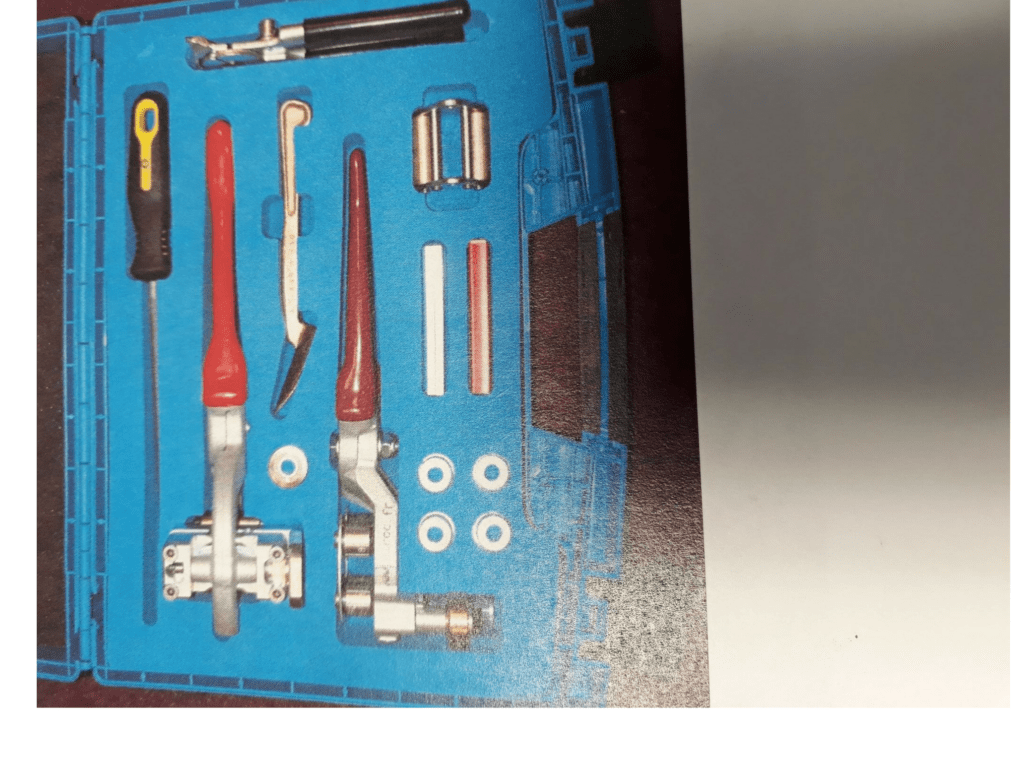

The jointers tool set includes:

1 X Alroc CPM-1GB Empty Plastic Tool Case
1 X Alroc Cable Sheath Pliers PG3HTA/2833
4 X Circular Cable Cutting Blade For PG3
1 X Longitudinal Cable Cutting Spare Blade PG3
1 X Spreader For Sheath Aluminium Screen 150sqmmm | 240sqmm
1 X Ligarex Pliers
1 X Alrocan Tightening Pliers For Cables 50sqmm 50-240sqmm 12kV 20kV

Jointing tools are also available to strip and prepare waveform cables prior to termination or jointing.

NOTE – The header image also shows depth cutters and a jointers rasp file – these are supplied as additional items and prices are available from Thorne & Derrick on request.

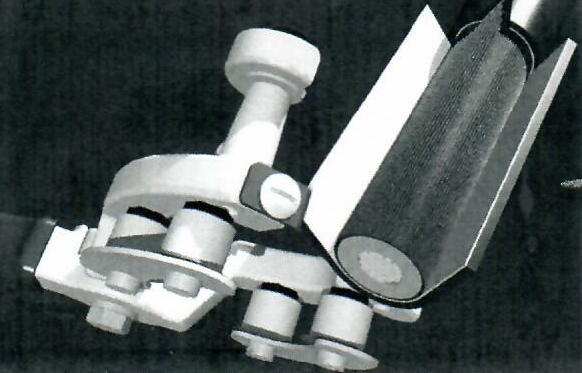

Using Alroc PG HTA Cable Sheath Pliers

Longitudinal Cut. Position the Alroc PG HTA cable cutting pliers to remove the cable sheath to the desired length – tighten the stripping pliers until the cable cutting wheel penetrates onto the stop rollers. Pull the stripping pliers along the length to be stripped.
Circular Cut. Position the Alroc PG HTA cable cutting pliers at the end of the longitudinal cut. Close the pliers onto the cables pressing slightly to ensure penetration of the cutting wheels – rotate the pliers back and forth by a third of revolution.
Sheath Removal. Use the two end blades to separate the cable sheath as show opposite.

LV Jointing Tools UKPN Approved

Jointing Tools Description	UKPN Stores Code	Number Required
100A Cut-Out Safety Shield	11757V	3
13mm Magnetic Nut Holder	33589P	1
150mm Core Wedge	33598N	4
185mm Waveform Core Twister	33156D	2
2-Way Earth Continuity Strap	03543Q	2
200 & 400A Cut-Out Safety Shield	11759Q	3
225mm Core Wedge	33599X	4
240mm Waveform Core Twister	31608J	2
300mm Waveform Core Twister	33175N	2
600A Cut-Out Safety Shield	11766U	3
7mm Insulated Nut Spinner	33704L	1
8mm Insulated Nut Spinner	33705V	1
95mm Waveform Core Twister	31607Y	2
Cable Armour Saw	33528C	1
Core Guard for Cable Ratchet Cropper	33601Y	1
Fire Blanket	03527M	1
First Aid Kit	38537X	1
IIPC Holding Tool	32047S	1
Insulated Core Knife	31400Q	1
Insulated Ratchet Cable Cutter	01134C	1
Insulated Universal Connector Holding Tool	31046D	1
Insulated Waveform Neutral Connector Holder	33163H	1
Insulated 13/17mm Ratchet Spanner	31045T	1
Jointer Shrouding Kit	03522N	1
Jokari Knife	33358N	1
Metal Hack Knife	31399Y	1
Plastic Core Seperator	33600P	2
Plastic Hack Knife	31981H	2
Plastic Lead Belling Tool	19415D	1
Plastic Medium Wedge	32266Q	2
Plastic Mini Wedge	32265F	2
Plastic Mini-Hepnyf	31401A	1
Insulating Rubber Matting	33411S	1
Shroud for Waveform Neutral Connector	03521D	6
Sicame Insulated Universal Screw Ratchet Tool	31547B	1
Spirit Level	33380L	1
Straight Tin Snips	33447C	1
Temporary Core Shroud – Size 0	03533G	8
Temporary Core Shroud – Size 1	03534T	8
Temporary Core Shroud – Size 2	03535B	8
Temporary Core Shroud – Size 3	03536L	8
Test Lamp – Long Probes	19440F	2
Un-insulated Ratchet Cutters	33170M	1
Voltstick Tester	32255W	1
