Bespoke Cable Clamp Solution | Severn Tunnel Electrification

Published 16 Dec 2022

Ellis Patents Cable Cleats

Cable Cleats & Hangers

Thorne & Derrick | Distributors for Ellis Patents | Cleats | Supports | Hooks

Severn Tunnel Electrification

Network Rail

Ellis Patents were involved in the Network Rail project to electrify the Severn Tunnel. The requirement was for a solution to carry the insulated ATF cable. An added complication for Ellis Patents was the aggressive conditions within the tunnel and the requirement for a 40 year product design life.

Cable Clamp

Ellis Patents Solution

Ellis worked with Network Rail to develop a solution based around the proven 2F+ two hole cable clamp alongside a bespoke bracket manufactured from Super Duplex stainless steel.

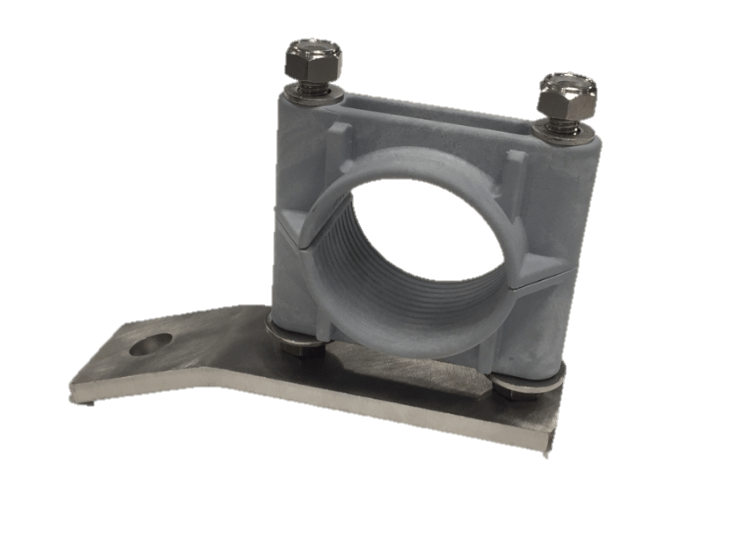

2F+ two hole cable clamp mounting

Bespoke Cable Clamp Solution

Bespoke Cable Clamp Solution
