Cable Laying

Courtesy Slingco – Manufacturer of Cable Pulling & Support Products

As a leading specialist supplier to the offshore industries for many years, Slingco has developed a range of cable pulling products designed to meet the demanding performance requirements of the oil and gas industry.

The Slingco ranges are extensive, covering everything from stainless steel or non-metallic cable socks for installing and/or supporting cable (or pipes) of diameters from 3mm-300mm, to down-hole cable protectors from 2 3/8” to 7” in diameter. Slingco take immense pride in delivering engineered solutions of the highest quality and performance.

This focus on quality extends across every aspect of the cable laying and installation operation.

Cable Laying, Installation & Support Products

Cable Laying, Installation & Support Products

Slingco was founded on innovation and quality and we continue to supply a varied range of cable-related products to customers throughout the world.

The cable pulling products are renowned for high performance in quality-critical applications across industries as varied as oil and gas, civil engineering, aerospace, transport, public utilities, marine and offshore, the military, performing arts, vehicle building, construction and more.

Cables and their associated supports are by definition, safety-critical components and Slingco recognises it places them in a real position of responsibility. Hence all of products are designed, manufactured and tested to exacting standards to ensure safe and dependable operation under even the most challenging conditions. Slingco operate a total quality management system and are accredited to ISO 9001.

An integral part of the manufacturing facility is the dedicated in-house design engineering team. As well as being focused on their own design and development projects, the engineering team’s skills – employing cutting-edge 3D modeling and finite element analysis software – are available to our customers.

From initial product design and manufacture to technical support and customer service, the strength of the business lies in the skills and commitment of the people. They are here to serve you and Slingco are confident that this shows in everything we do.

Thorne & Derrick’s aim isn’t simply to sell you a product; it’s to be your preferred supply partner.

Slingco

All Slingco products are designed, manufactured & tested to exacting standards – ensuring safe & dependable operation under even the most challenging conditions

Slingco Cable Socks

Slingco Cable Socks

CABLE PROTECTORS

Cable Support & Guidance in Vertical, Deviated & Horizontal Wells

Slingco’s cable protectors provide a safe, quick and efficient way of conveying and securing downhole cables into well-bores while eliminating the risk of compression-induced damage. A full range of products is available to suit ESP cables, control lines, umbilicals and encapsulated bundles of all sizes, and a streamlined design prevents hang-ups downhole.

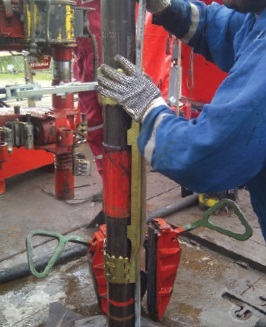

Standard Cable Protectors

The Slingco Cable Protector has been purpose-designed for use on the wide range of cables, lines and umbilicals that have to be conveyed in and out of well-bores. Its innovative, streamlined form minimises the risk of downhole hang-ups to ensure maximum operational productivity. Each protector features an eight-point friction pad gripping system that provides a secure, reliable grip to enable the safe, quick and effective conveying and securing of ESP cables, control lines, umbilicals and encapsulated bundles.

Its design and innovative engineering deliver the required grip without risk of either compression-induced damage to cables, or damage to the protector itself, enabling it to be re-used (subject to all necessary safety checks).

Standard Cable Protectors

Standard Cable Protectors

Standard Cable Protectors

















Slingco Cable Protector Advantages

  • Custom design and development – any size, any shape, any quantity
  • Zinc plating at no extra charge
  • Flexible and easy to work with, fast quotes, customised drawings, special requests
  • Custom materials: Stainless; Super Duplex; Inconel Alloy 625
Cable Protectors

Banded Cable Protectors

Mid-Joint Cable Protectors

Mid-Joint Cable Protectors

Centralising Cable Protectors

Centralising Cable Protectors

Cable Socks

Cable socks provide a quick and efficient means of installing/controlling or heavy-duty or electrical cables, and can also be used to support or pull any cylindrical object within their grip diameter and load carrying capacity.

Slingco offer a wide selection of cable socks to match standard applications and can manufacture woven-to-order products to meet special requirements (e.g. socks with diameters over 400mm and breaks exceeding 50 metric tonnes).

Our cable socks are complemented by a growing range of associated products, including swivels, rollers and feed tubes, all manufactured to the same exacting standards.

  • Custom availability
  • Any size, any specification
  • Class-leading performance
  • Unrivalled strength
Cable Socks

Cable Socks – a comprehensive range designed and engineered for installation of cables and pipes through ducts, conduits and trenches

Hose Resistant Cable Socks

The specialist oil and gas product range encompasses a selection of extremely heavy duty grips. These double eye, multi-weave restraints are manufactured in 316 stainless steel and designed for use as high pressure hose restraints or for large underwater pulls.

Marine Cable Socks

Slingco also manufacture specialist marine cable grips in a wide range of sizes and lattice lengths, and these can be supplied as single eye, double eye or lace up double eye products. All are suitable for use for use as high pressure hose restraints or for large underwater pulls.

Non-Metallic (Aramid) Cable Socks

The extensive portfolio of cable socks includes a range of non-metallic products offering an outstanding weight to break ratio.

Manufactured using a high-strength, non-­metallic aramid fibre, they are suitable for pulling both single cable and cable bundles and are ideal for offshore applications.

  • High-strength aramid
  • Suitable for single cable and cable bundles

Slingco offers a range of support grips, in 304 Stainless Steel, designed to support the cable weight as it hangs vertically or horizontally. They are the ideal solution for taking the strain off connectors, terminators and wall sockets and are available in various designs to suit most applications.

Non-Metallic (Aramid) Cable Socks

Non-Metallic (Aramid) Cable Socks

Rigid & Bow Spring Centralisers

For Vertical Deviated & Horizontal Wells

Slingco manufacture a range of centraliser products (also referred to as casing spacers) suitable for use in vertical, deviated and horizontal wells. Designed to deliver reliable centralising and spacing of piping within larger diameter pipes, they are available in rigid and bow string options.

Bow Spring Centralisers

Specially designed for vertical wells where low principal forces and high restoring forces are required, this one-piece design simplifies installation onto casings.

The Bow Spring Centraliser is available in multiple sizes and blade configurations.

Bow Spring Centraliser

Bow Spring Centraliser

Rigid Centralisers

Designed to ensure concentricity and standoff in deviated and horizontal wells, this one-piece centraliser minimizes differential sticking.

As with other centralisers in our range the Rigid Centraliser is available in multiple sizes and blade configurations.

Rigid Centralisers

Rigid Centralisers

➡ Slingco together with T&D offer a wide range of cable installation and support products developed for the Oil & Gas market, covering everything from stainless steel or non-metallic cable grips for installing and/or supporting cable (or pipes) of diameters from 3mm-300mm, to down-hole cable protectors.

CABLE SOCKS & PULLING PRODUCTS LV MV HV

Complete range of LV, MV and HV cable pulling products for installation and enabling cable jointing in trench or ducts including LV, 11kV/33kV medium voltage (MV), 66kV/132kV high voltage (HV) and EHV transmission and distribution cables up to 400kV.
