Fire Rated Cable Cleats | CMP Solace, Themis & Helios
Published 29 Jul 2020

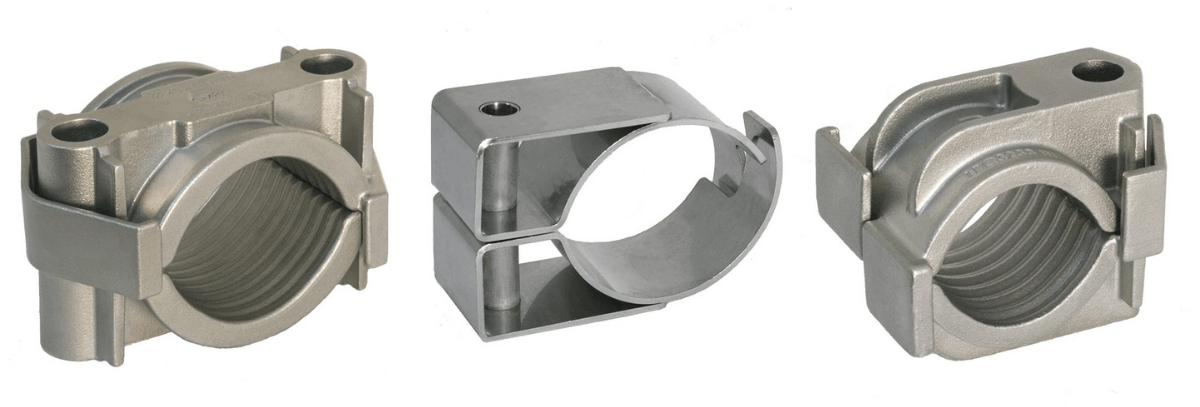

Fire rated cable cleats
Themis, Solace & Helios
This range of fire rated cable cleats from CMP launches as the use of fire resistant power cable and control cable systems for life safety and fire-fighting applications has become more prevalent in everyday use.
This product range is not only suitable for fire safety applications, but also highly corrosive environments where high grade stainless steel products should be used, or applications where high axial / lateral loads are required, such as the vertical installation of large high voltage cables (Themis only). All CMP cable cleats hold LUL 1-085 approvals.
Accessories are available for the fire rated cable cleats such as C-clamps (for unslotted rungs) and separation pads (to isolate dissimilar metals) are available for all products excluding the intermediate restraint.
Tested to the Highest Industry Fire Safety Standards
Fire tested to EN50200, BS5839, BS8491, BS8434 and AS 3013, CMP’s fire-rated range has been specifically designed for use with fire performance cables to ensure the safe retention and securing of cables in the event of a wiring system being affected by fire.
BS 5839 ‘Fire detection and fire alarm systems for buildings.
Code of practice for design, installation, commissioning and maintenance of systems in non-domestic premises’ states that;
“Methods of cable support should be non-combustible and such that circuit integrity will not be reduced below that afforded by the cable used, and should withstand a similar temperature and duration to that of the cable, while maintaining adequate support.”
To adhere to this, BSI standard fire rated Cable Cleats must be used to support the cable in the event of a fire.
High Quality Material & Temperature Rating
Available in cast and fabricated 316L stainless steel, the one and two bolt range has been rigorously tested to withstand temperatures of over 1000°C, whilst providing the superior corrosion resistance that 316L stainless steel affords, making it suitable for not only indoor and outdoor applications but highly corrosive environments too.
Extreme Axial & Lateral Load Retention
As well as offering superior fire-resistance, both the Themis and Solace have been designed with a unique twin arc internal patent pending design profile, offering extreme axial and lateral load retention. Please visit the individual product pages for 3rd party test data.
Solace
CMP Solace | Fire Rated Cable Cleats
The Solace heavy duty, one bolt, high temperature, stainless steel single cable cleat is a cast metallic fire rated cable cleat which has been designed, constructed, and tested in accordance with the International Standard ‘Cable Cleats for Electrical Installations’ (IEC 61914).
These fire rated cable cleats can be used with fire performance cables to ensure the safe retention and securing of single cables in the event of a wiring system being affected by fire. These fire resisting supports help to maintain the electrical system’s integrity for any critical circuits during an emergency situation to enable safe evacuation.
The cable cleat is manufactured from stainless steel 316L making it suitable for both indoor and outdoor applications. A unique twin arc internal patent pending design profile it exhibits excellent retention, limiting both the axial and lateral movement.
The Solace one bolt cable cleat is available in twelve sizes suitable for cable diameters of 10mm up to 71mm. It has an M10 clearance hole for securing it to a mounting surface.
Features
- 316L Stainless Steel
- Operating temperature -60°C to +250°C
- Surpasses requirements of Fire testing BS5839 / BS8491 / EN50200 / BS8434 / AS-NZS 3013 (1,200°C) (Fire, shock & water)
- 10 – 71mm cable range
- Single bolt fixing design
- Can be stacked
- Excellent axial & lateral load retention
- Corrosion resistant
Themis

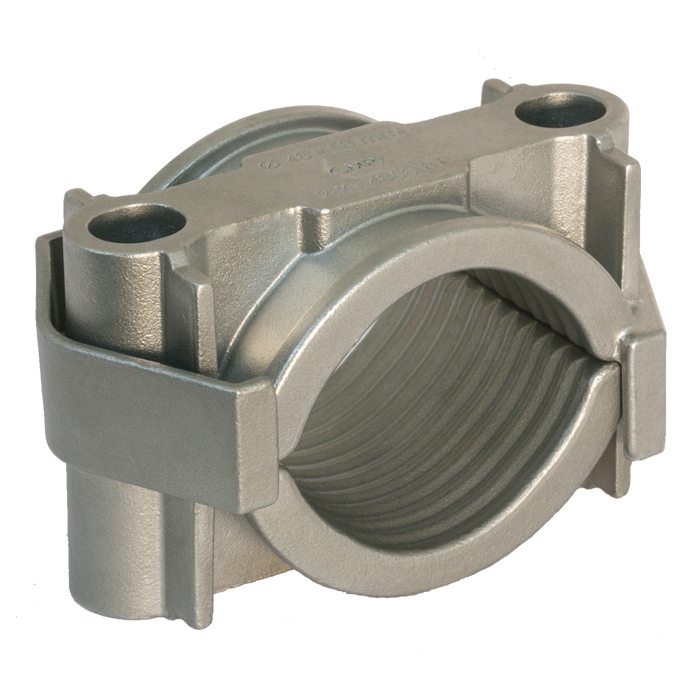

CMP Themis | Fire Rated Cable Cleats
The Themis heavy duty, two bolt, high temperature fire rated stainless steel single cable cleat which has been designed, constructed, and tested in accordance with the International Standard ‘Cable Cleats for Electrical Installations’ (IEC 61914). It ensures the retention and securing of single cables, without damaging or deforming the cable.
These fire rated cable cleats can be used with fire performance cables to ensure the safe retention and securing of single cables in the event of a wiring system being affected by fire. These fire resisting supports help to maintain the electrical systems integrity for any critical circuits during an emergency situation to enable safe evacuation. The cable cleat is manufactured from stainless steel 316L making it suitable for both indoor and outdoor applications.
Due to its unique twin arc internal patent pending design profile it exhibits excellent retention, limiting both the axial and lateral movement. The Themis two bolt cable cleats have an excellent range take and are suitable for cable diameters of 38mm up to 97mm in only five sizes.
These cable cleats feature two M12 clearance holes for securing it to a mounting surface, which allows for either M10 or M12 fasteners to be used.
Features
- 316L Stainless Steel
- Operating temperature -60°C to +250°C
- Surpasses requirements of Fire testing BS5839 / BS8491 / EN50200 / BS8434 / AS-NZS 3013 (1,200°C) (Fire, shock & water)
- 38 – 97mm cable range take in 5 sizes
- Can be stacked
- Excellent axial & lateral load retention
- Corrosion resistant
Helios

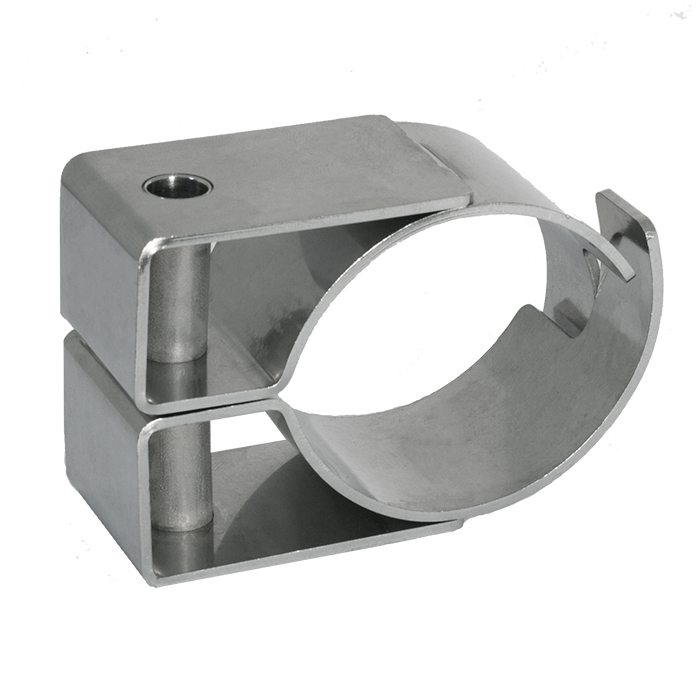

CMP Helios | Fire Rated Cable Cleats
Helios standard duty, one bolt, high temperature fire rated single stainless steel cable cleat is a fabricated metallic cleat which has been designed, constructed, and tested in accordance with the International Standard ‘Cable Cleats for Electrical Installations’ (IEC 61914).
These fire rated cable cleats can be used with fire performance cables to ensure the safe retention and securing of single cables in the event of a wiring system being affected by fire. These fire resisting supports help to maintain the electrical systems integrity for any critical circuits during an emergency situation to enable safe evacuation. The cable cleat is fabricated from stainless steel 316L making it suitable for both indoor and outdoor applications.
The Helios high temperature stainless steel 316L cable cleat is available in eleven sizes suitable for cable diameters of 10mm up to 65mm. The cable cleat has an M10 clearance hole for securing it to a mounting surface.
Features
- Fabricated Stainless Steel 316L
- Operating temperature -60°C to +250°C
- Surpasses requirements of Fire testing BS5839 / BS8491 / EN50200 / BS8434 / AS-NZS 3013 (1,200°C) (Fire, shock & water)
- 10 – 65mm cable range take in 11 sizes
- Single bolt fixing design
- Can be stacked
- Corrosion resistant
