GRP Cable Containment | From LV DC to 25kV Rail Cable Containment

Published 28 Jun 2022

Article Written by Andrew Sillars, Rail Sector Manager, Wibe Group UK Ltd

GRP Cable Containment

Having supported the specification of Glass Reinforced Polymer cable containment since 2005, I have experienced its unique features such as lightweight, long-life durability, no deburring, no earth bonding and many more. All these advantages of GRP Cable Containment support a cheaper, quicker and easier-to-install system that gives a true fit-and-forget  solution.

Thorne & Derrick are an approved distributor of the MITA brand, now powered by Wibe Group who are a RISQS approved supplier. Andrew together with Wibe are proud to introduce our extensive cable support offer which includes Glass Reinforced Polymer GRP cable ladders, CABSYS cable trays and elevated cable troughing with accessories.

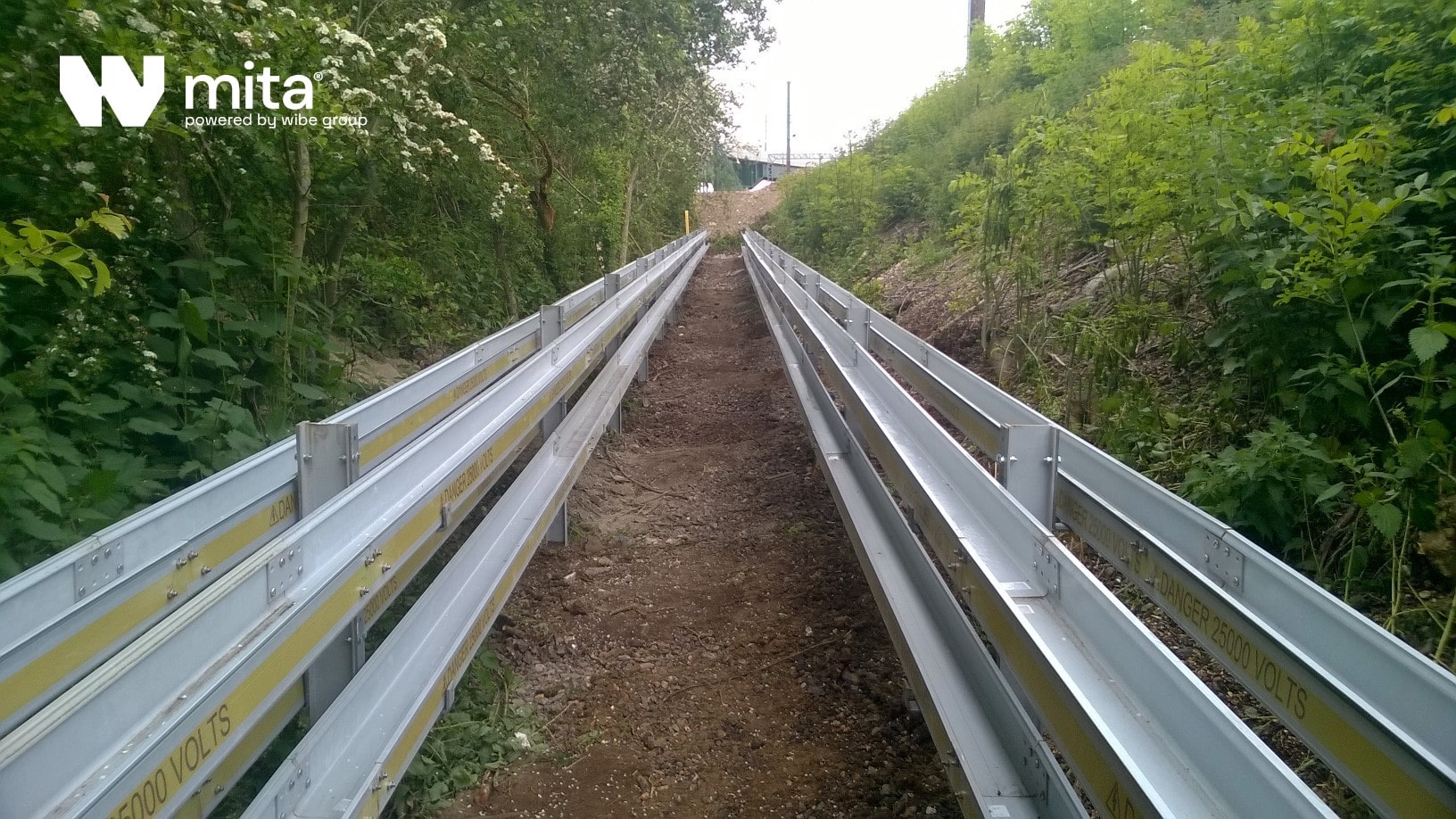

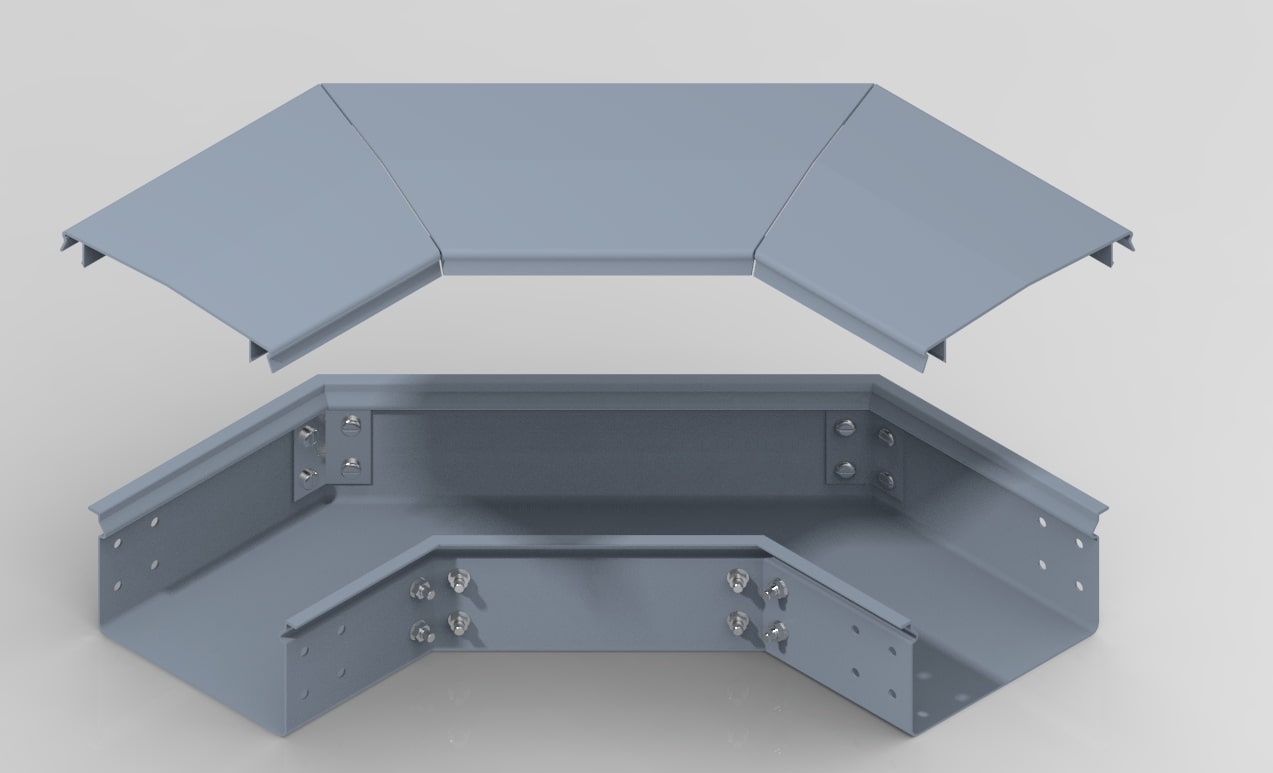

GRP Elevated Cable Troughing | Containment System for Rail

GRP elevated cable troughing is an especially useful containment system for rail.

Ground Level Troughing (GLT) is often used in signalling and telecoms schemes for the cable connections to lineside equipment such as points, train detection, signals and radio sites. However, in many places, GLT cannot be used due to the ground profile and steep embankments and cuttings. GRP is an ideal alternative for such locations and it is also essential for large current-carrying power cables.

High quality manufacture

Mita GRP is produced by pultrusion technology. This uses a combination of unidirectional and cross-strand glass mat which is resin-impregnated and pulled through a hot die to produce a very solid, structurally sound profile with excellent mechanical rigidity unlike other moulded systems.

Mita GRP does not contract or expand with heat causing the troughing route to distort. It is produced with a high quality of manufacture and modified by the use of additives to the resin, and with protection from ultra-violet light.

This year, with the launch of the new GRP GMAX^R 6m troughing range, which allows a 6m post span, Mita GRP becomes a full offer with its 3m or 6m lengths to meet the needs of every application in the most cost-effective way.

Features and benefits

Mita GRP is 70% lighter than steel; it is also corrosion resistant. It does not conduct heat and has excellent durability against adverse weather conditions. The product offers excellent UV stability resulting in a cost-effective long-term solution.

The Mita GRP is provided in a wide range of trays, troughing and ladders which can support any type of cable – especially power and fibre cables which require a gentle bending radius. Unlike some competitors’ systems, Mita elevated troughing is provided with GRP support posts to increase its durability. The troughing lids clip securely in place, providing cable theft protection. Further security can easily be added by installing stainless steel bands around the elevated route.

Working with GRP

Another particularly useful feature of the Mita^R GRP system is that it is integrated with the Bentley Raceway and Cable Management Building Information Modelling (BIM) tool.This provides a complete layout, routing and material estimating function in a single, integrated system. It can be applied from the initial concept design through to detailed design and construction.

A user can create an accurate 3D model of the cable troughing route, making it easy to ensure that adequate space and clearances are available in confined locations, and for the detailed design and material requirements to be quickly and easily produced.

Network Rail approval and other applications

The Mita GRP elevated cable route has been fully approved by Network Rail under Certificate of Acceptance PA05/00442 issued in 2015 for use in locations unsuited to GLT. The Zero Halogen Low Smoke (ZHLS) version has also been approved for use in sub-surface stations, connecting tunnels, and London Underground applications.

It was a concern that sensitive signalling equipment was susceptible to contact by flakes of galvanisation from steel support systems and that DC traction cabling system might create eddy currents within troughing ladders and supports if they were metallic.

Mita GRP troughing was chosen as it is the best candidate with non-magnetic and non-conductive properties.

The cable containment system is not just used in rail, but has also been successfully employed in a wide range of industries including data centres, petro-chemical industries, water treatment, off-shore oil and gas etc.
