Jointing, Grounding & Terminating DC Solar Cables
Published 14 Apr 2021
Reliance & Compliance
- uploaded by Chris Dodds | Sales Marketing Manager with Thorne & DerrickÂ
Thorne & Derrick stock and distribute a range of tailored Solar Cable Jointing & Termination Kits complete with cable-specific shielding, earthing bonds and terminals for low voltage power cables used in the renewable energy sector.
Currently working with Solar PV Operations & Maintenance contractors we have trouble-shooted several UK solar farm locations suffering service issues due to substandard and incorrectly specified cable accessories creating multiple weak points within circuits.
Additional shortcomings in solar power system designs have included knowledge shortages on how to prevent moisture ingress, how to provide adequate electrical insulation using heat shrink products, how to to create a safe and secure earth connection and utilising a trusted product to lug the cable ends with appropriate short-circuit ratings and without significantly damaging the conductors. This includes the jointing and termination of solar cables with tinned fine copper strands according to VDE 0295 /IEC 60228, Class 5.
In summary, typically several contractors are using Jointing, Grounding & Terminating products that are suitable for Cu/XLPE/PVC/AWA/PVC 0.6/1kV (BS5467) when they should be using heat shrink cable accessories suitable for Alu/XLPE/ATA 1000V AC/ 1500V DC cable.
Simply, different cable types that require different cable joints and terminations.
Thorne & Derrick | Exclusive UK Distributors of the SPS range of Solar Power Joints & Terminations for Low Voltage DC Power Cables
Joints & Terminations
Working with Shrink Polymer Systems, we have innovated a product range to achieve safe permanent, connection and a proper grounding. Maintenance, repair and replacement of the cables and connectors should only be carried out by authorised and trained personnel.
Kit List
- Reliable and harmonized connection and grounding concept
- With accurate use, according to the instruction manual, no contact corrosion due to durable sealing
- Consistently safe contact with the aluminium conductor and the earthing screen
- Grounding wire in tinned copper braid with water blocking
SPS1449 | Heat Shrink Grounding Termination Solar DC Cables ALU-ATA 1500V

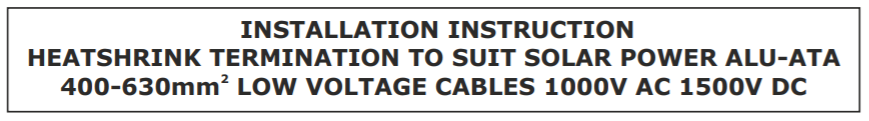

âž¡ INSTALLATION INSTRUCTION ON REQUESTÂ
SPS1306Â | Heat Shrink Joint Kit Solar DC Cables ALU-ATA 1500V

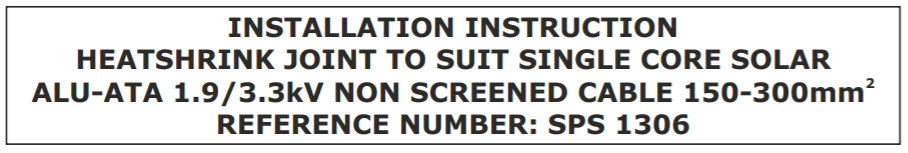

âž¡ INSTALLATION INSTRUCTION ON REQUESTÂ
SPS1449

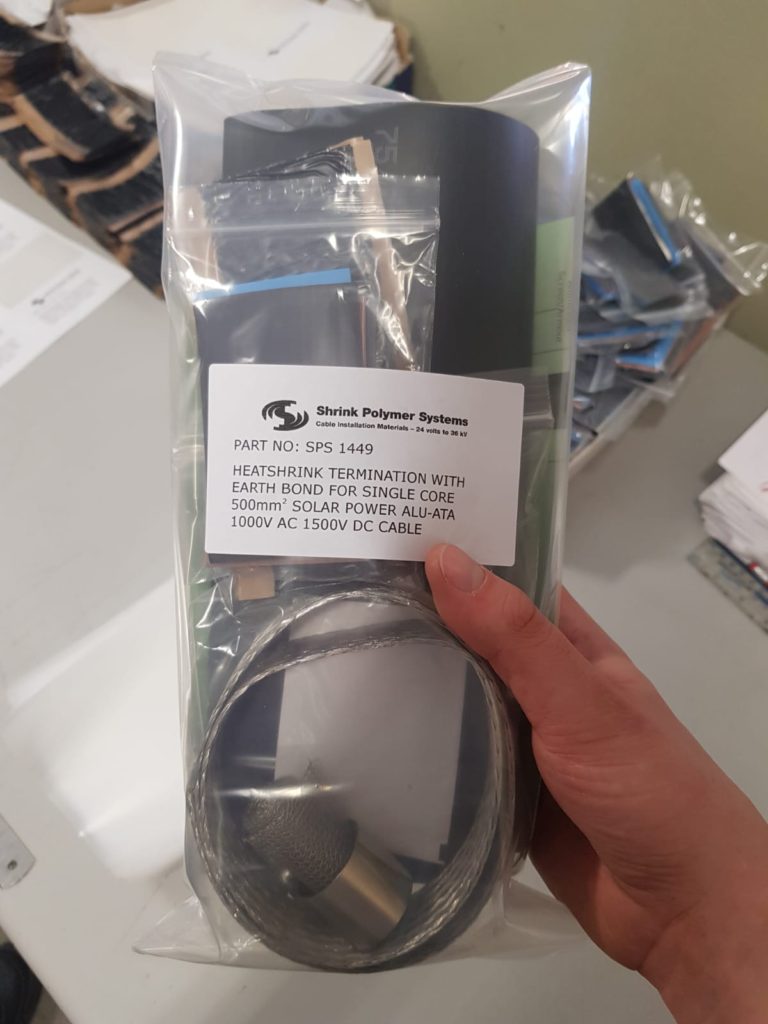

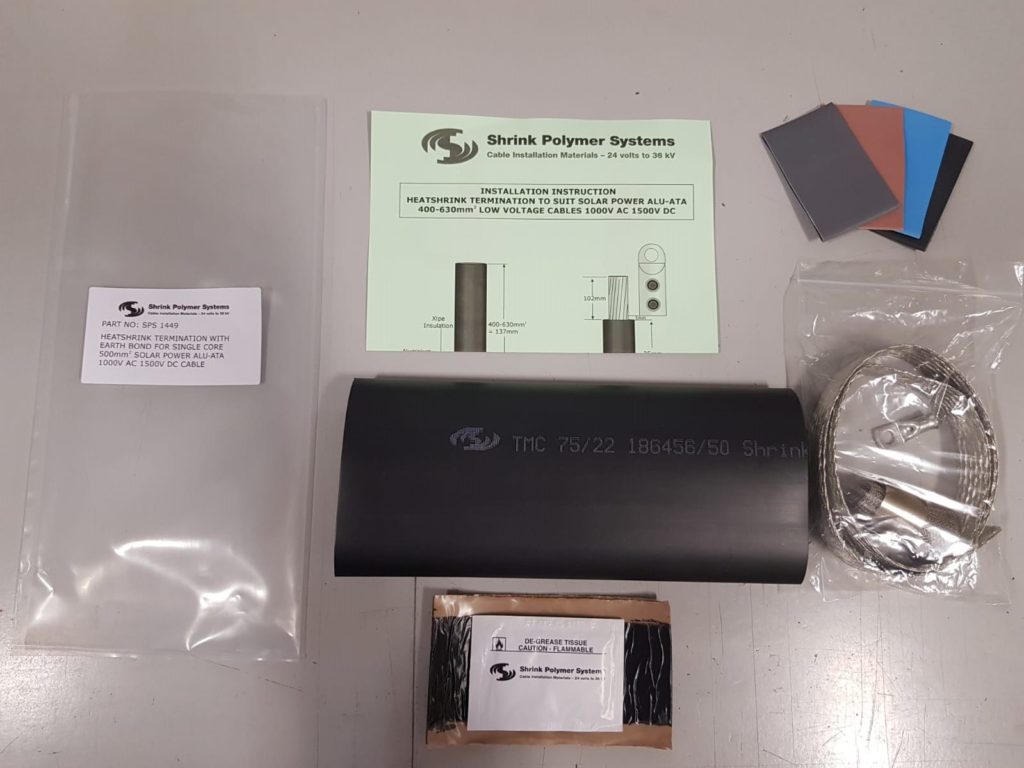

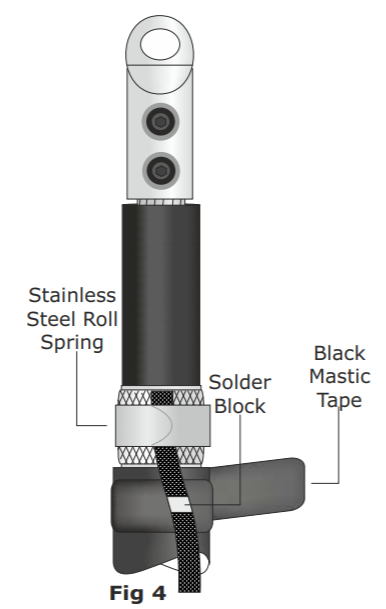

SPS1449 | Solar DC Cable Termination With Earth Bond

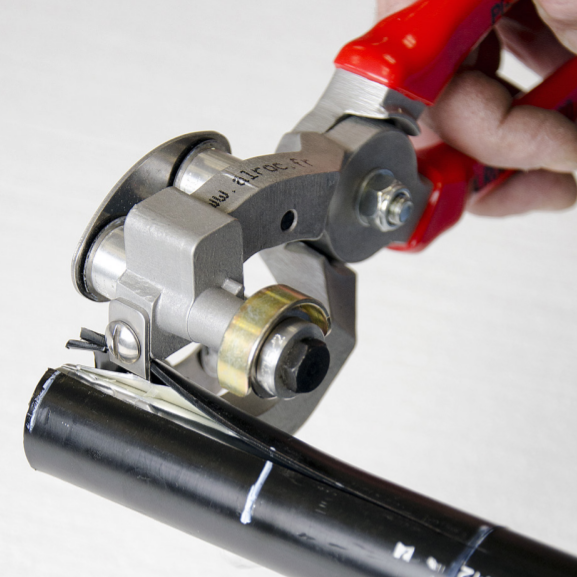

Strip Solar DC Cables
