Tools for Stripping MV & HV Peelable Semicon Screened Cables

Published 21 Apr 2022

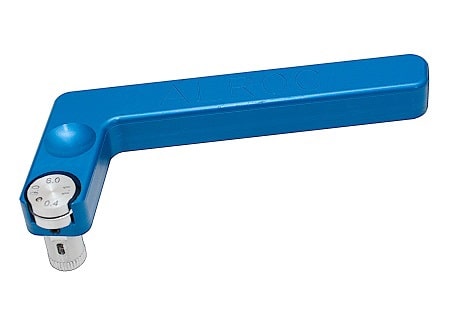

Alroc ORACL

Alroc ORACL Tool

Screen Scoring Tools

Alroc manufacture a range of cable jointing tools  for the removal and stripping of outer cable sheath, semi-conductor screen and insulation from LV, MV, HV and EHV power cables – this includes precision engineered manual and motorised cable installation and preparation tools for Power, Transmission & Distribution cables.

The ORACL by Alroc enables the cable jointer or user to longitudinally score the peelable semiconductive layer from medium/high voltage cables (typically 33kV) in order to peel it off carefully by hand – this is a key stage of MV HV cable preparation prior to the installation of Power Cable Accessories including joints, terminations and connectors.

The Screen Scoring Tool has an adjustable scoring depth of four different lengths (0.4 / 0.6 / 0.9 / 1.1 mm) and is lightweight in design.

Screen Scoring Tool Capacity

  • Diameter: 10 – 100 mm or 0,394 – 3,937 inch
  • Scoring Depth: 0.4 / 0.6 / 0.9 / 1.1 mm or 0.016 / 0.024 / 0.035 / 0.043 inch
  • Min Remaining Length: 10mm

Spare Part

LSO – Spare blade for peelable semiconductor

Associated Tool

DSP – Peelable semiconductor lifter
MVS – Stop for tools

Screen Scoring Tool Dimensions

  • Length: 135 mm
  • Width: 55 mm
  • Height: 35 mm
  • Weight Without Box: 0,16 Kg
  • Packaging: Box
Part Number Diameter Tool Capacity Dimensions Packaging
Scoring Depth Min Remaining Length Length Width Height
Alroc ORACL 10 – 100 mm or 0,394 – 3,937 inch 0.4 / 0.6 / 0.9 / 1.1 mm or 0.016 / 0.024 / 0.035 / 0.043 inch 10mm 135 mm
5,315 in		 55 mm
2,165 in		 35 mm
1,378 in		 Box
